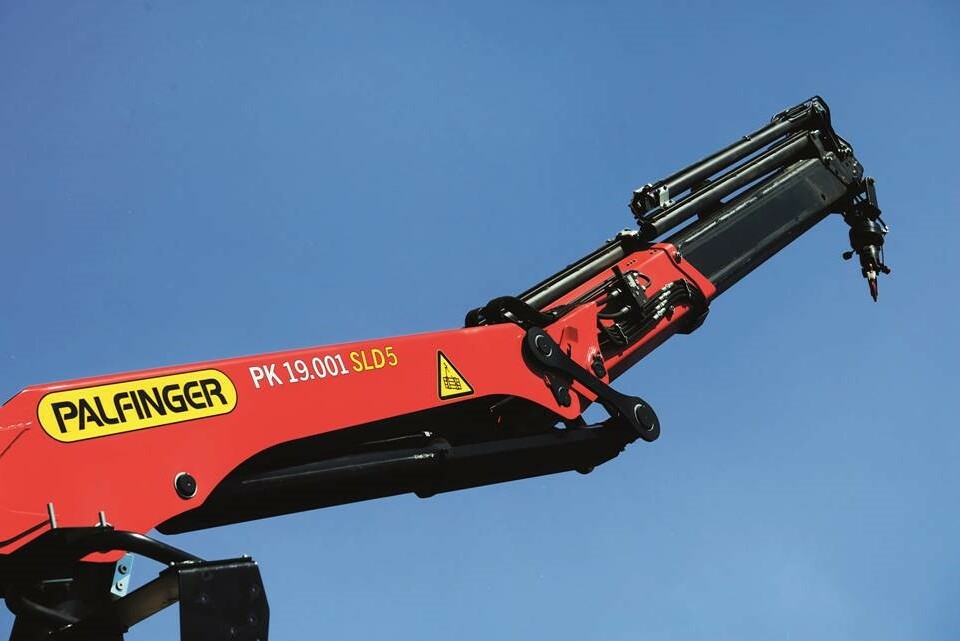

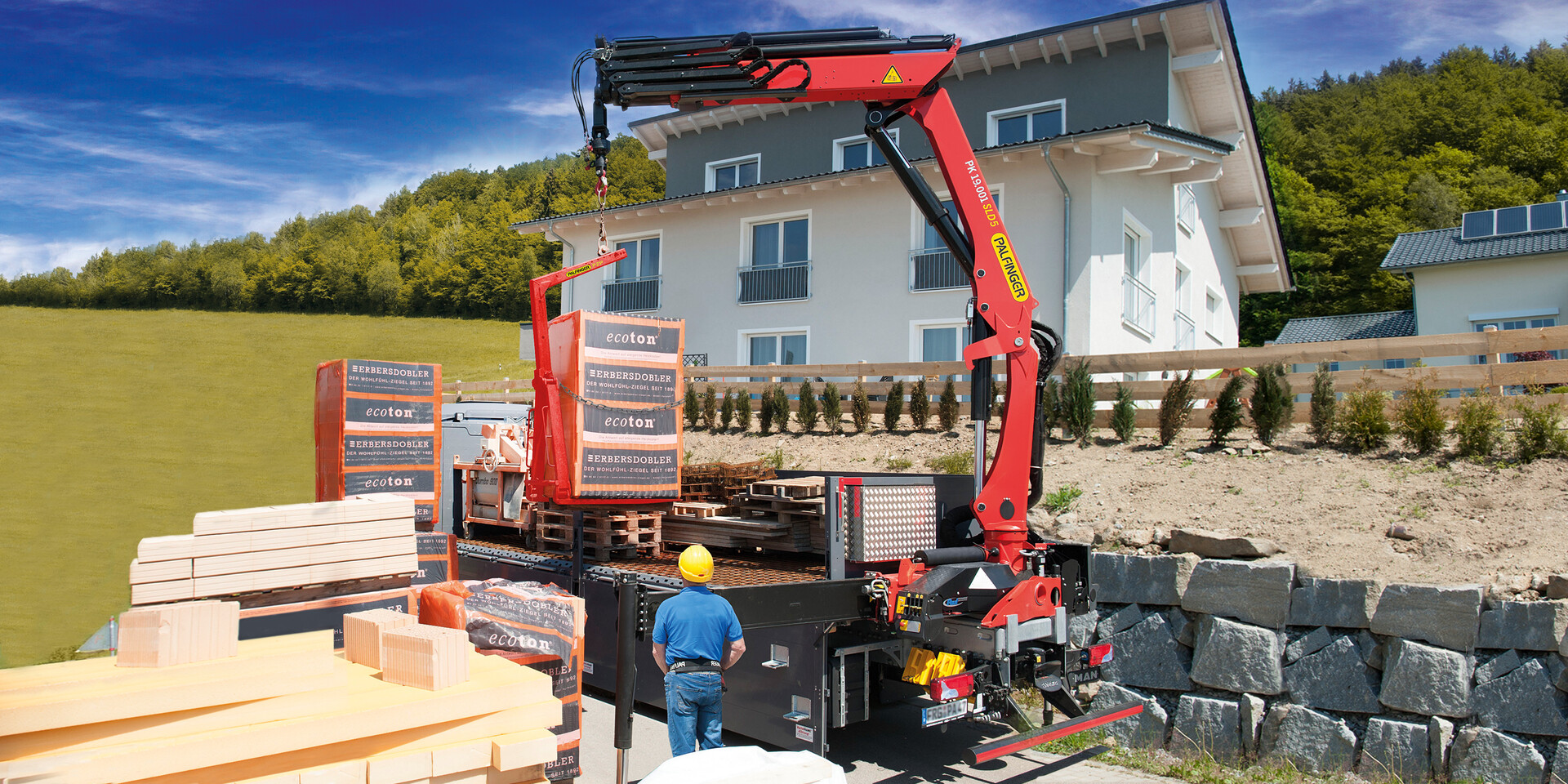

PK 19.001 SLD 5
PK 19.001 SLD 5
Loader Crane
| Max. lifting moment | 18.5 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 14.8 m |
| Max. manual outreach | 19.0 m |
| Slewing angle | 420° |
| Slewing torque | 2.0 mt |
| Stabilizer spread (std) | 5.0 m |
| Fitting space required (std) | 0.83 m |
| Width folded | 2.55 m |
| Max. operating pressure | 360 bar |
| Pump capacity | 60 - 80 l/min |
| Dead weight (std) | 1700 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 18.5 | 6.1 | 420 | 2.0 | 36.0 | 60-80 | 1700 | 2250 | 2550 | 825 |
| A | 18.1 | 8.2 | 420 | 2.0 | 36.0 | 60-80 | 1855 | 2250 | 2550 | 825 |
| B | 17.7 | 10.4 | 420 | 2.0 | 36.0 | 60-80 | 1990 | 2250 | 2550 | 825 |
| C | 17.3 | 12.6 | 420 | 2.0 | 36.0 | 60-80 | 2105 | 2250 | 2550 | 895 |
| D | 17.0 | 14.8 | 420 | 2.0 | 36.0 | 60-80 | 2205 | 2250 | 2550 | 895 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
