PK 19.001 SLD 5

Loader Crane

SOLID, SIMPLE AND AFFORDABLE

  • Additional applications with Single Link Plus
  • Higher payloads due to intelligent lightweight design
  • Maximum reliability due to PALTRONIC
  • High degree of user-friendliness thanks to optional radio remote control
  • More lifting power due to A-HPLS
Downloads Technical Data

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

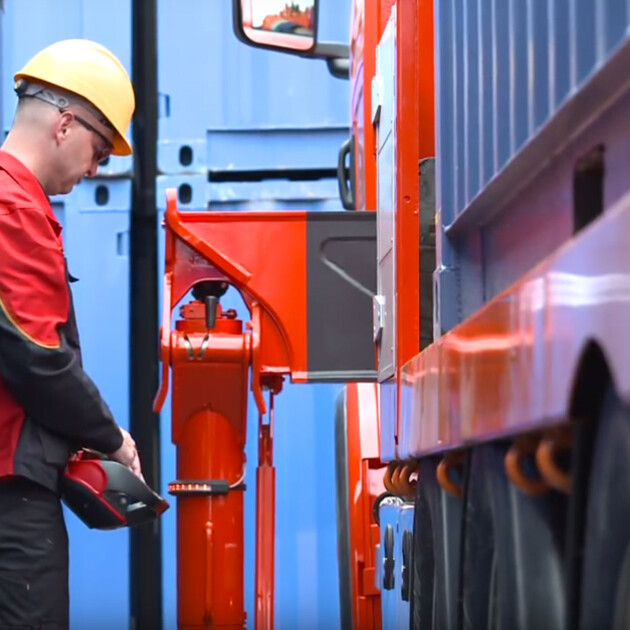

HPSC-Plus LOAD

PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.

Details
Max. lifting moment 18.5 mt
Max. lifting capacity 6200 kg
Max. hydraulic outreach 14.8 m
Max. manual outreach 19.0 m
Slewing angle 420°
Slewing torque 2.0 mt
Stabilizer spread (std) 5.0 m
Fitting space required (std) 0.83 m
Width folded 2.55 m
Max. operating pressure 360 bar
Pump capacity 60 - 80 l/min
Dead weight (std) 1700 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation Width
(mm)
18.5 6.1 420 2.0 36.0 60-80 1700 2250 2550 825
18.1 8.2 420 2.0 36.0 60-80 1855 2250 2550 825
17.7 10.4 420 2.0 36.0 60-80 1990 2250 2550 825
17.3 12.6 420 2.0 36.0 60-80 2105 2250 2550 895
17.0 14.8 420 2.0 36.0 60-80 2205 2250 2550 895

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
