P 130 A
P 130 A
BEST PERFORMANCE ON ALLTERRAINS
The P 130 A is PALFINGER‘s popular aerial platform designed for working at heights even on uneven terrain. It is available on a Ford Ranger truck in the 3.19 T GVW version or in the version with a 3.5 T upgrade.
The particularly low centre of gravity of this aerial platform offers maximum stability both on and off-road and impresses with its extremely precise control and flexibility of manoeuvre.
The front and rear vertical pantograph stabilisation allows better compensation of slopes ensuring great stability.
Our solution for work at height on all terrain

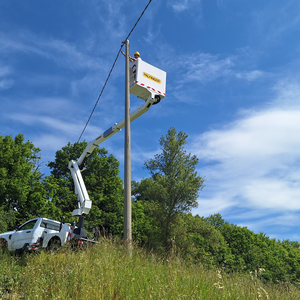

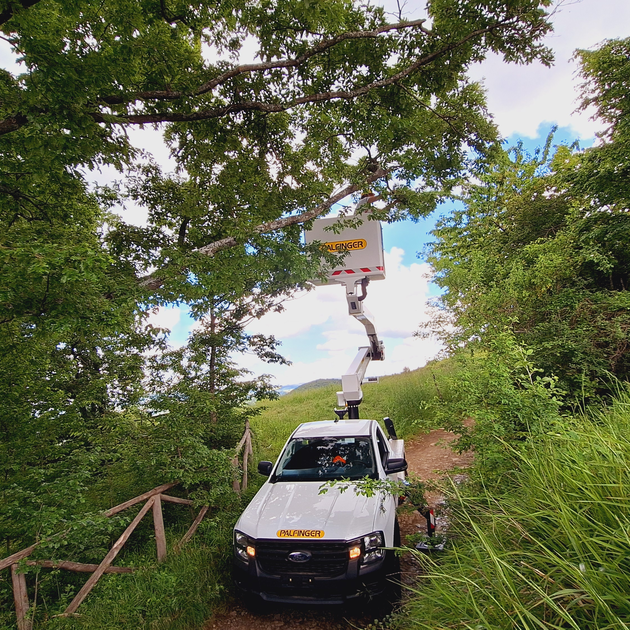

There are jobs at heights that need to be done in places that are difficult to access, for which the use of a standard truck-mounted aerial platform is not indicated. Whether it‘s the maintenance of a power line in a mountainous area, the upkeep of woodland, or general work at height in an area that can only be reached by dirt roads, PALFNGER provides suitable equipment for these needs, such as the P 130 A. The P 130 A is distinguished by its attention to detail and the high-quality components used, which
meet both EU regulations and the strictest standards required in the US, designed to ensure high performance, unbeatable durability and a high resale value. Installed on 4x4 pick-up trucks, it easily reaches places that are difficult to access.
-

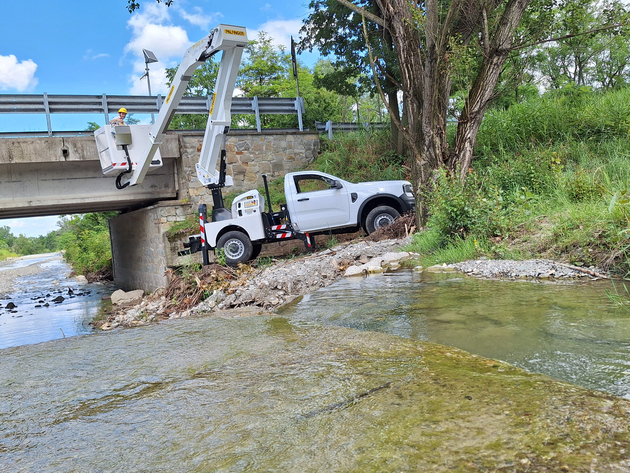

Agile driving even on rough terrain
-
Available on 3.2 t and 3.5 t trucks
- Hydraulic controls
- Easy to use, quickly achieves maximum performance at maximum load
- Compact and ergonomic design
- Same working area on 360°

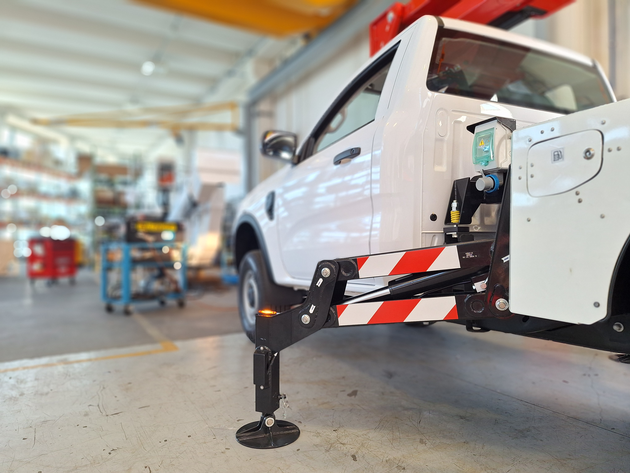

PANTOGRAPH STABILISATION
The pantograph stabilisation is ideal for off-road terrain. It guarantees stable positioning even off-road thanks to the large area of stabilisation and the vertical descent of the stabiliser. In this way, the load on the front axle is less, reducing wear on the front axle.

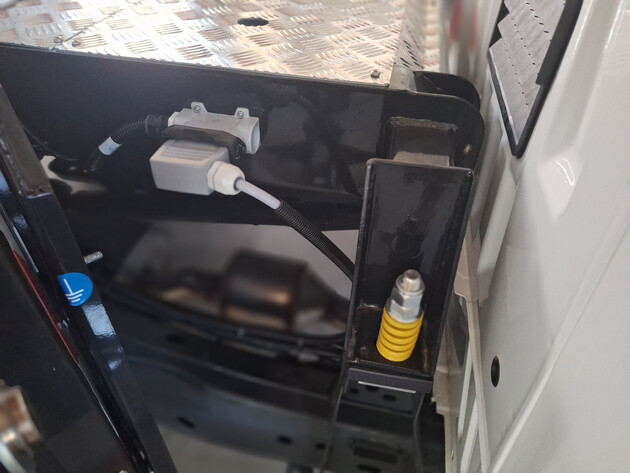

FRAME CUSHIONING
Spring system installed on the frame subframe to avoid bending effects on
the original truck frame. This method preserves the truck from damage and
wear and tear, ensuring the customer a more durable truck.
| Max. height of work | 13 m |
| Max. basket floor height | 11 m |

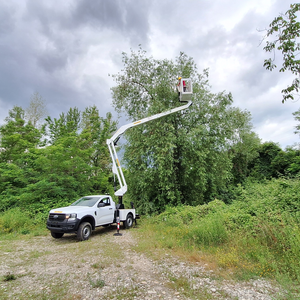

| Max. horizontal outreach /with basket load | 6.3 m fixed basket/7.0 m rotating basket |
| Operating angle of working arm | -30°/+60° |
| max. basket load | 250 kg |
| Workman basket - breadth / length / height | 1,4 x 0,7 x 1,1 m |
| Rotation angle of turntable | 360° |
| Height in transport position | 2.55 m |
| Width in transport position | 1.88 m |
| Overall length | 5.8 m |
* depending on the inclination
The devices shown are partially equipped with options and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. We reserve the right to make technical changes, errors and mistakes in translation.
A possible 2% tolerance is contingent on structural components depending on chassis and equipment
Standard chassis available:
Ford Ranger
