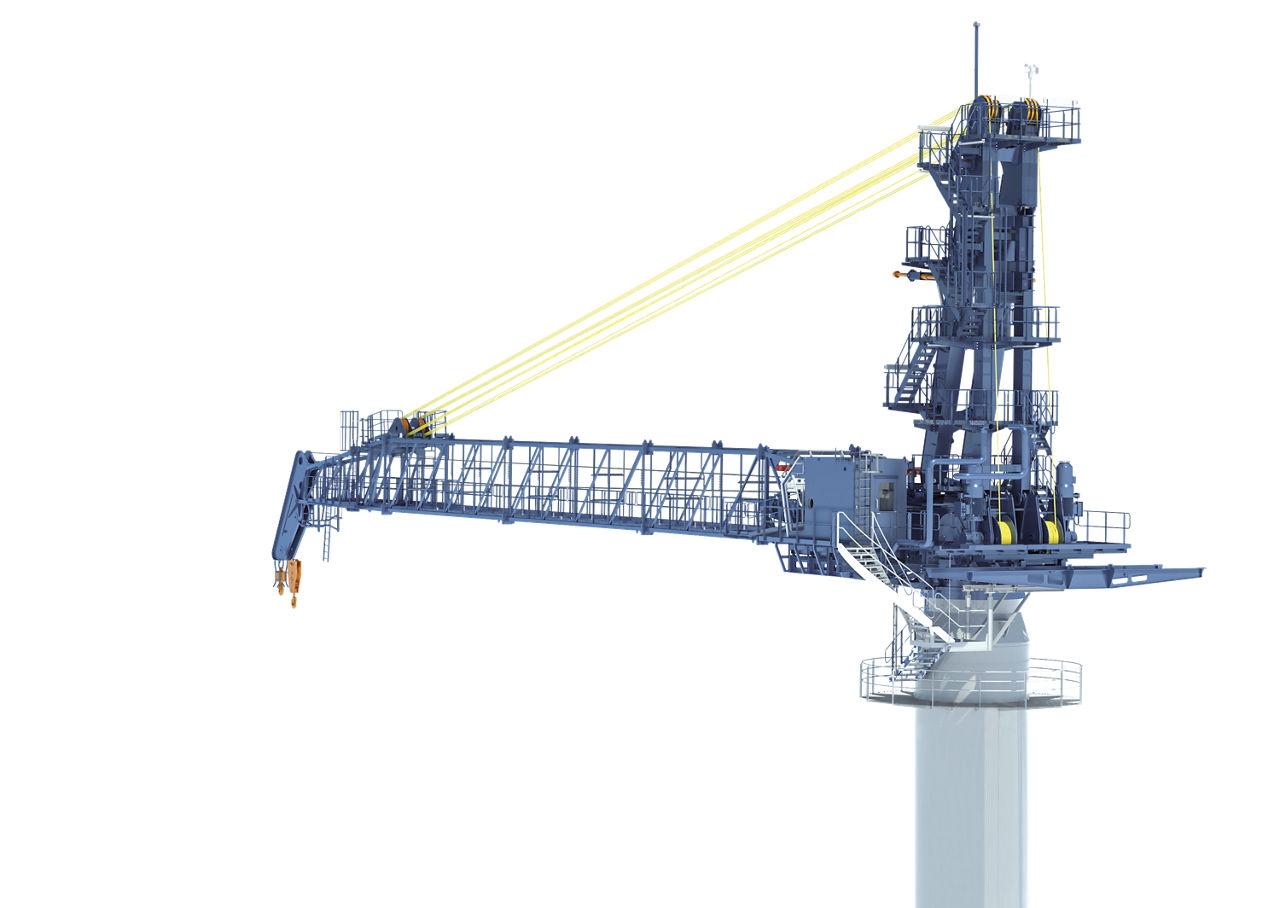

High‑Performance Cranes for Offshore Operations

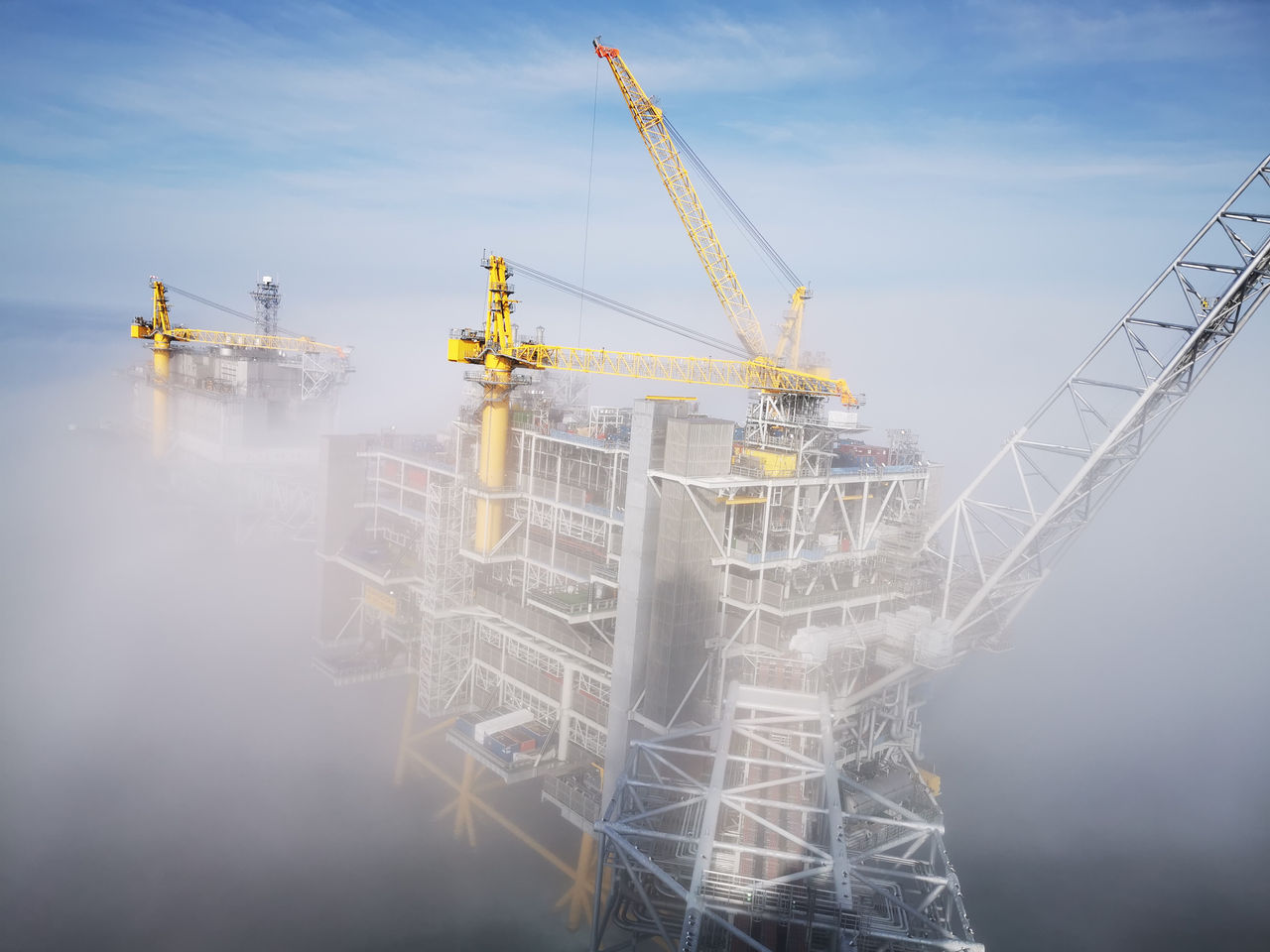

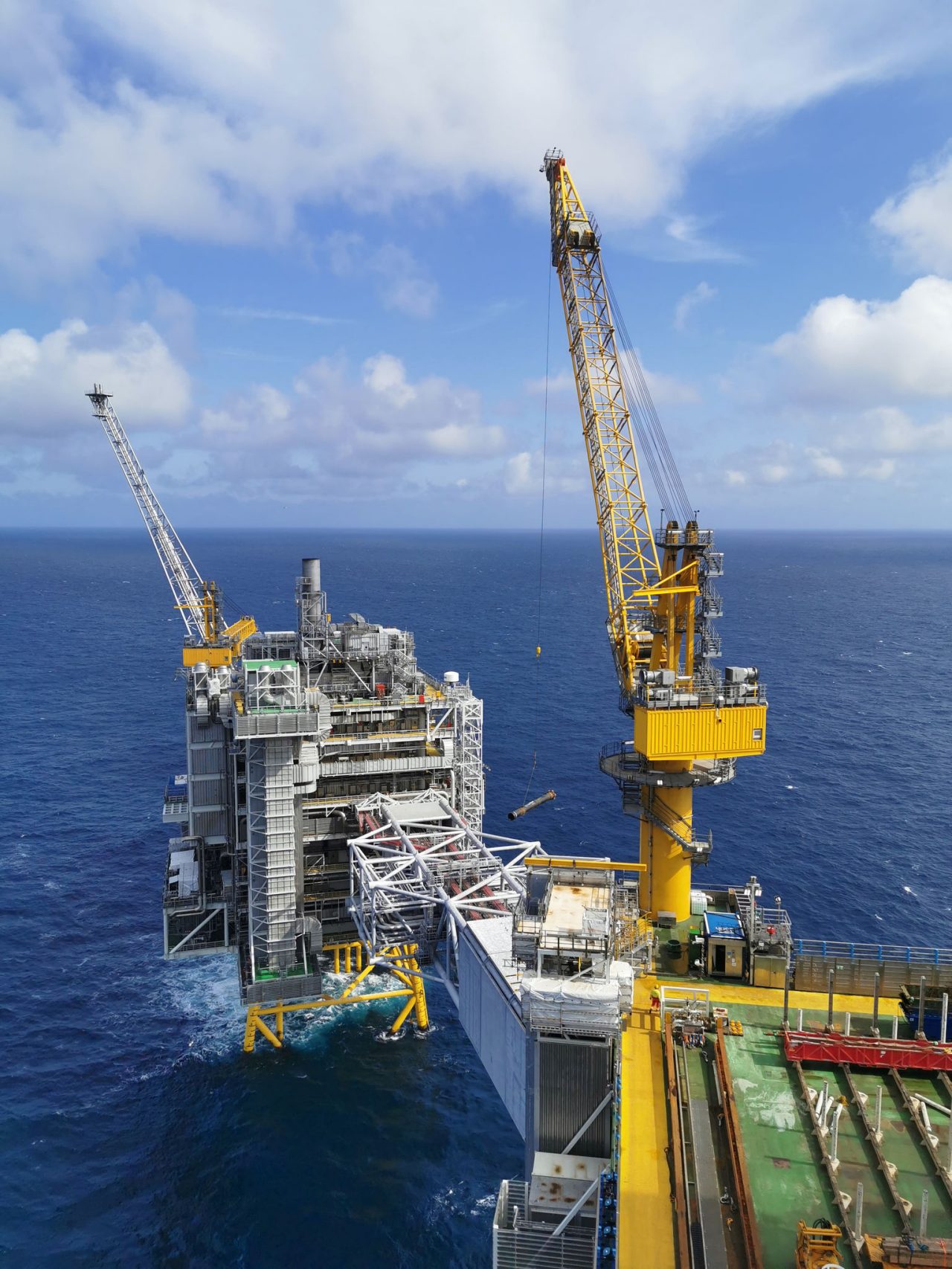

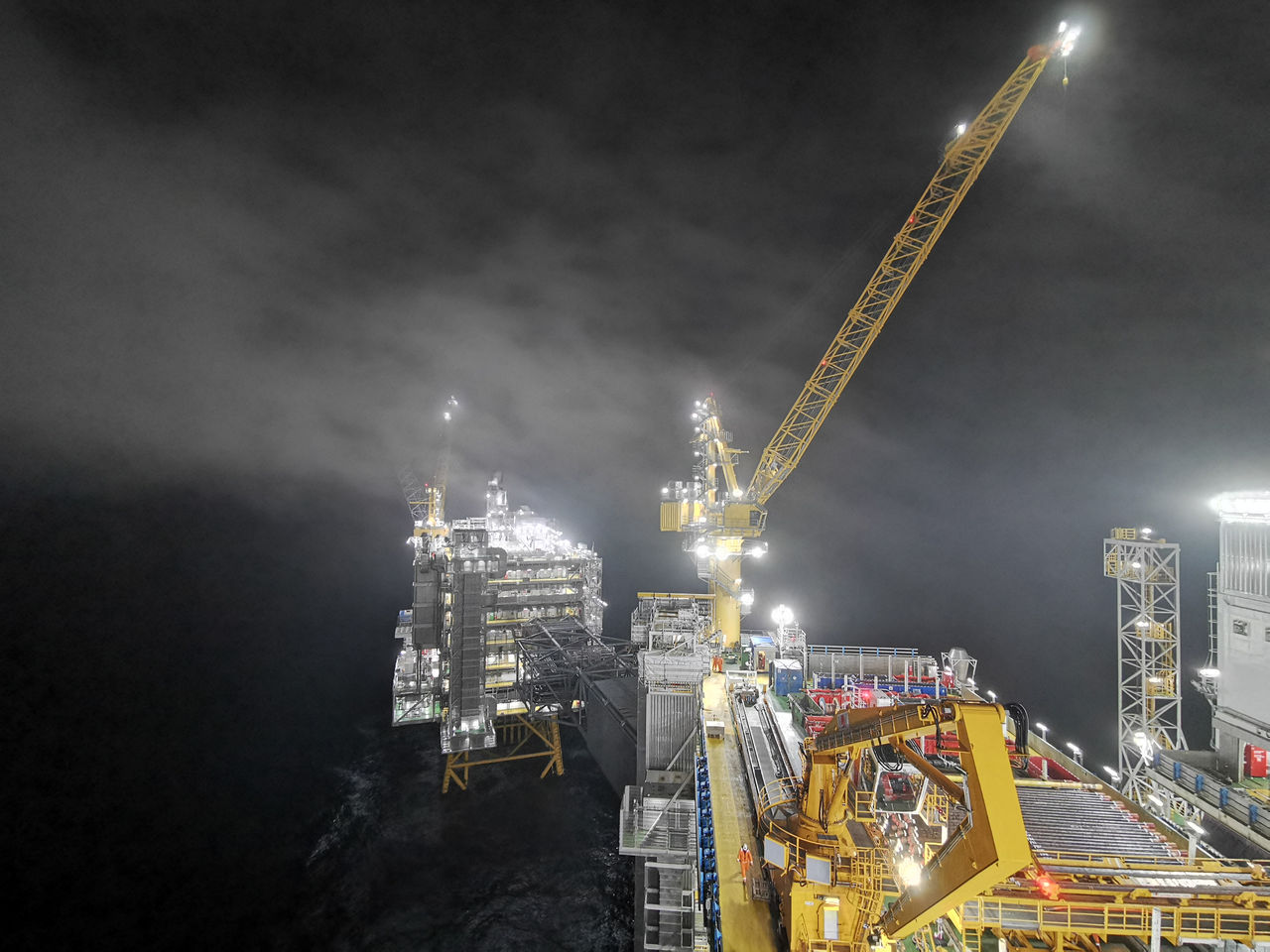

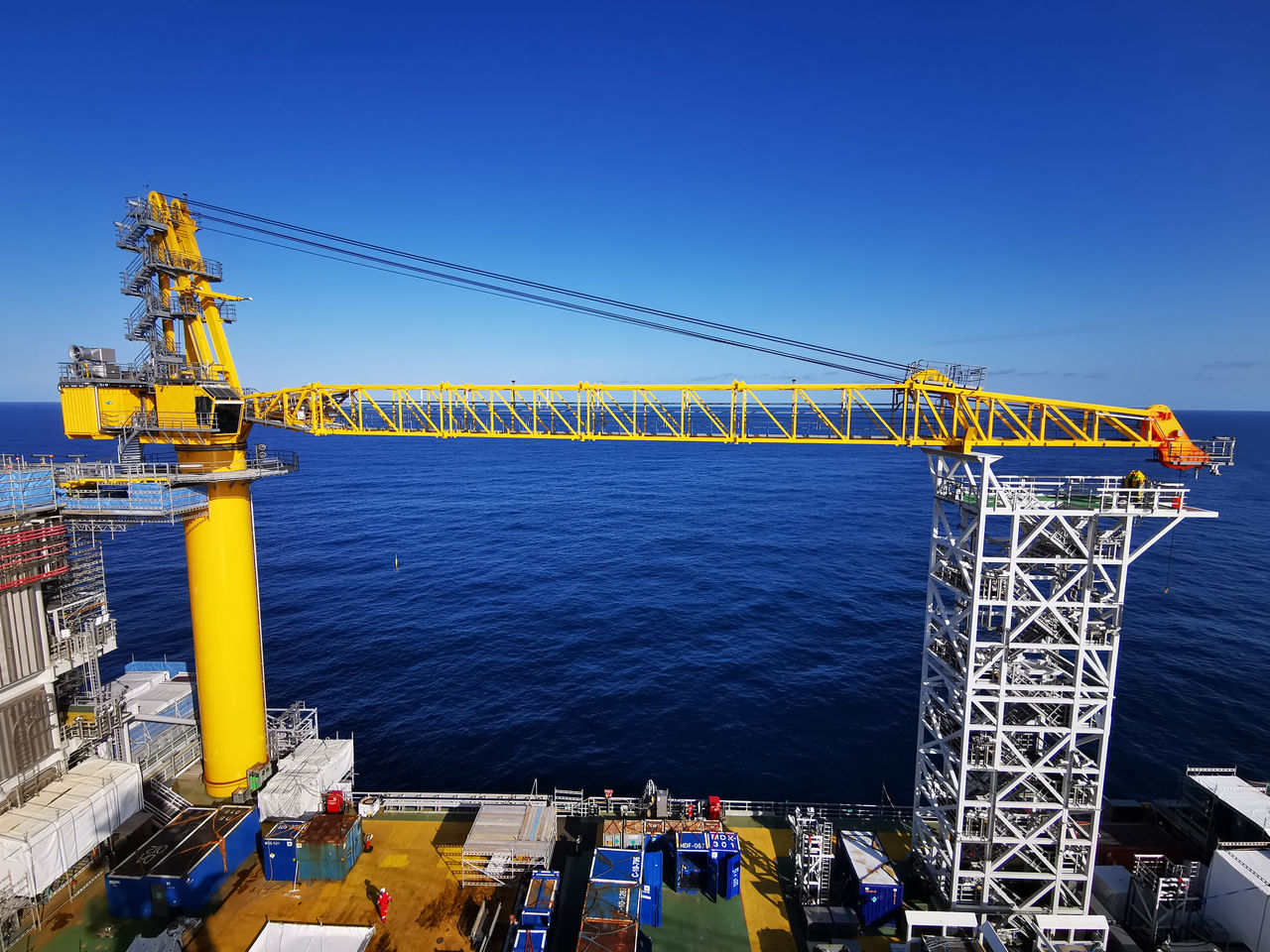

PALFINGER wire luffing lattice boom cranes are built on a robust slewing pedestal design and represent state‑of‑the‑art offshore lifting technology. Certified according to the latest offshore rules and regulations, they offer lifting moments ranging from 4,000 to 30,000 kNm.

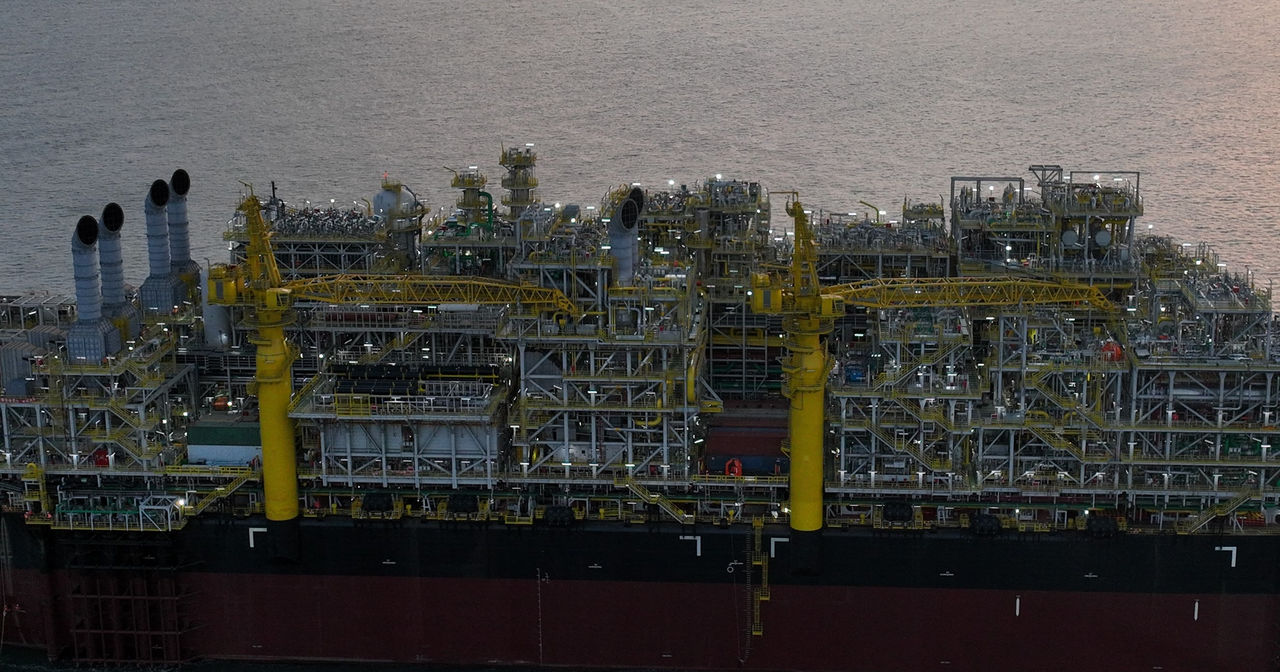

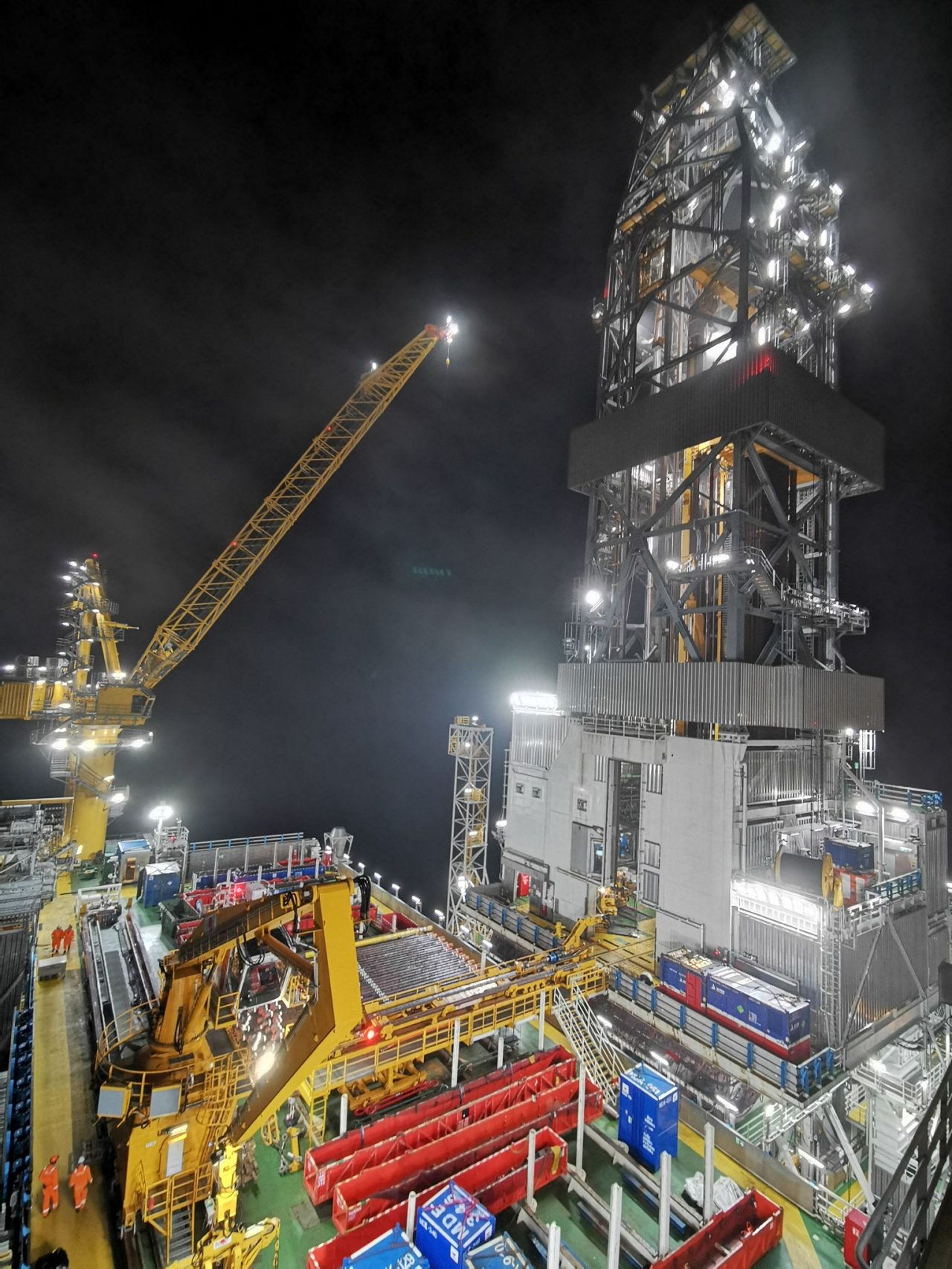

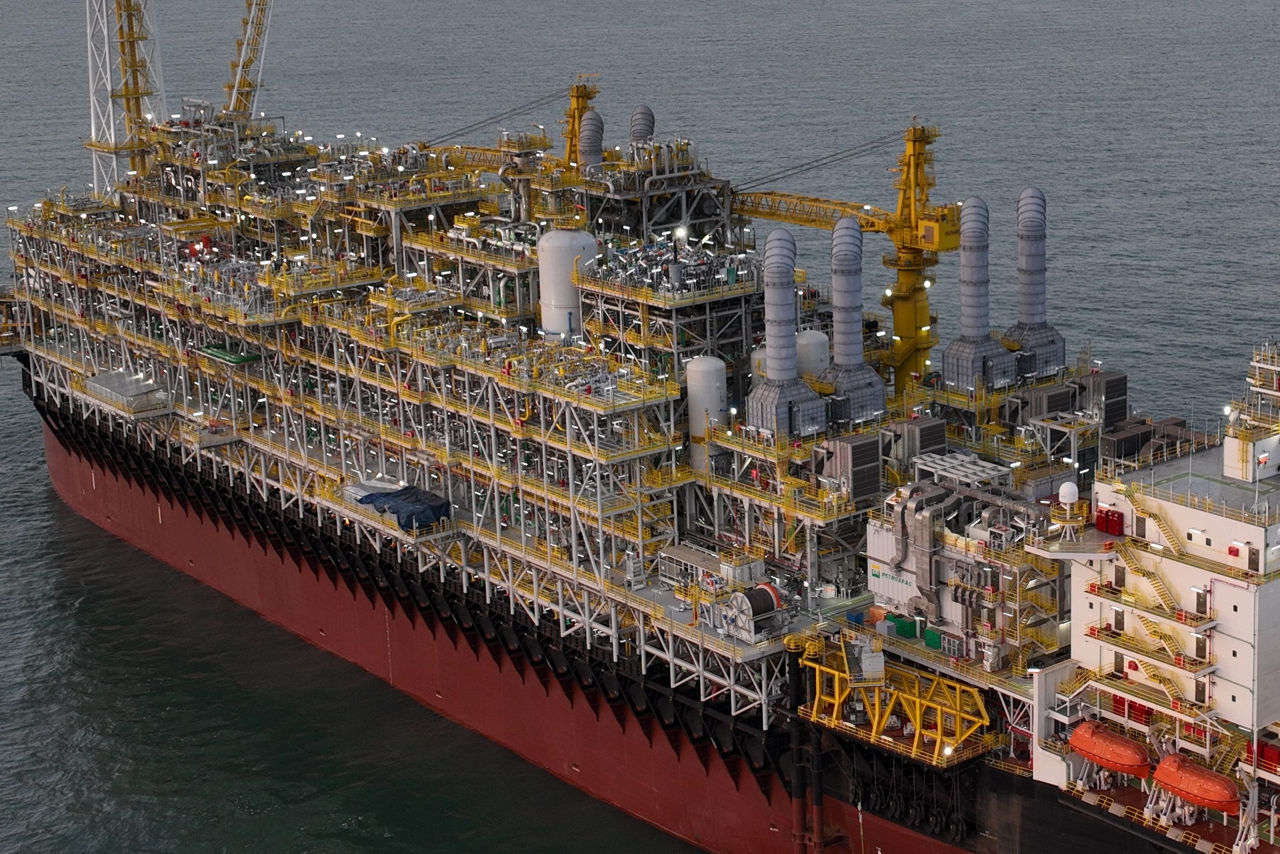

Each crane is equipped with built‑in electro‑hydraulic or diesel‑hydraulic power packs, ensuring reliable performance in the most demanding conditions. These cranes are typically selected when the required outreach exceeds 40–50 meters, and they operate effectively on fixed installations, drilling rigs, jack‑ups, drillships, FPUs, and FPSOs.
Typical applications:
- Deck cranes
- Ship‑to‑Ship cranes
- Pipe handling cranes
- Boat handling cranes
Features
Features
- Hoisting capacity up to 100 metric tons
- Jib radius up to 70 meters
- Internal slewing gearing and slewing gears
- Reduced need for maintenance
- Electro-hydraulic or diesel-hydraulic drive
- Easy access to all types of maintenance
- Weight optimized
- Enables operation with a significant wave height up to 6 meters
- Operator’s cabin
- Anti-collision system
Options
Options
- Tugger winches
- Constant Tensioning
- Remote control
- Design according to API-2C / ABS /EN13852 / NORSOK / BV / LRS
- AOPS / MOPS / Tensioning
- Personnel lift
- Metalizing
- ATEX Zone 1 and 2 execution
Fully Electric Crane Design
PALFINGER MARINE has developed an innovative range of wire luffing lattice boom cranes with a fully electric drive based on VFD technology, designed in accordance with EN 13852‑1 and NORSOK R002 standards. These cranes combine high quality with optimized weight, operate entirely without oil, and require less power – making them exceptionally environmentally friendly. In addition, their reduced maintenance needs significantly lower total lifecycle costs.
Advantages:
- Less vibration, less noise
- Less components
- Smoother and more predictable operations
- Reduction in maintenance cost
- Subject to wear and tear
- No risk of oil spill
- Less power consumption
Features
Features
- Hoisting capacity up to 100 metric tons
- Jib radius up to 70 meters
- State-of-the-art control system
- Safe to use up to significant wave height up to 6 meters
- Optimized load charts to ensure flexibility in operation
- Easy maintenance, access to all areas of the crane
- Remote access of crane for quick support and fault detection
- Off the shelf components to ensure easy maintenance and quick supply of spare parts
Options
Options
- Tugger winches
- Aux winch
- Fiber rope solution
- Pedestal adapter
- Hazardous zone classification
- Lift planning tool
- Remote diagnostic
- Winch below deck
- Design according to EN 13852 / NORSOK
Special Developments

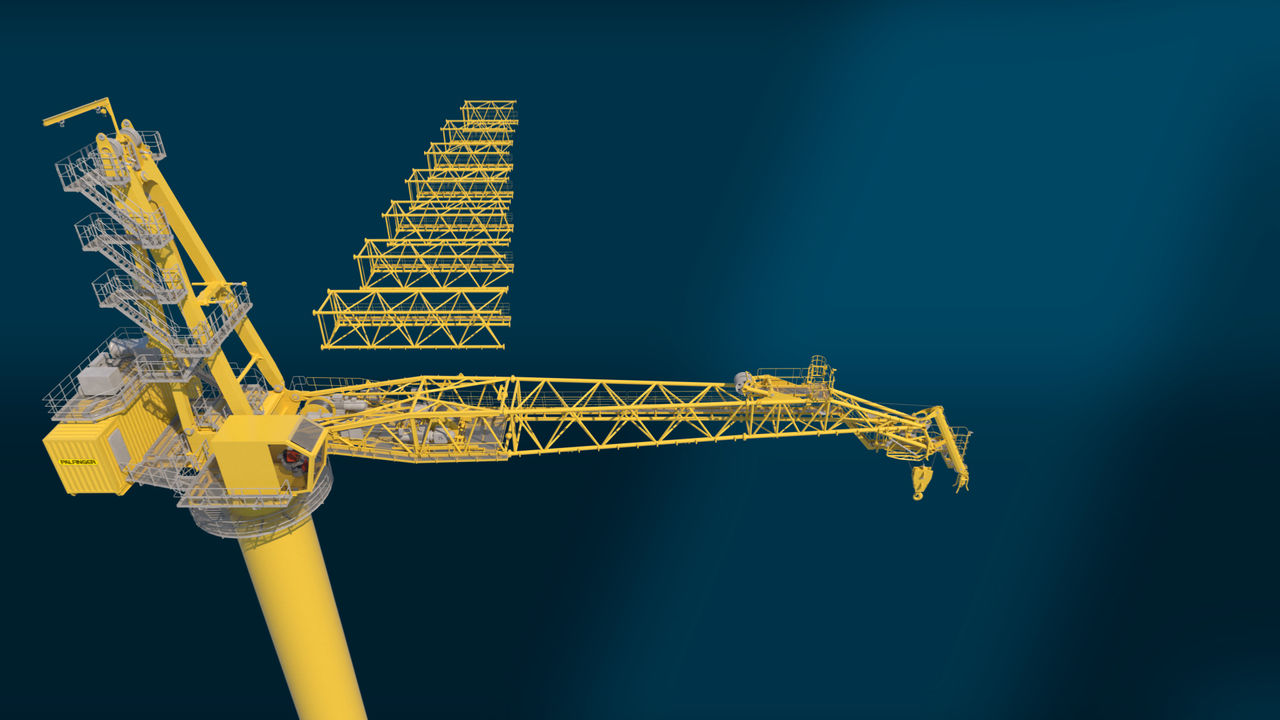

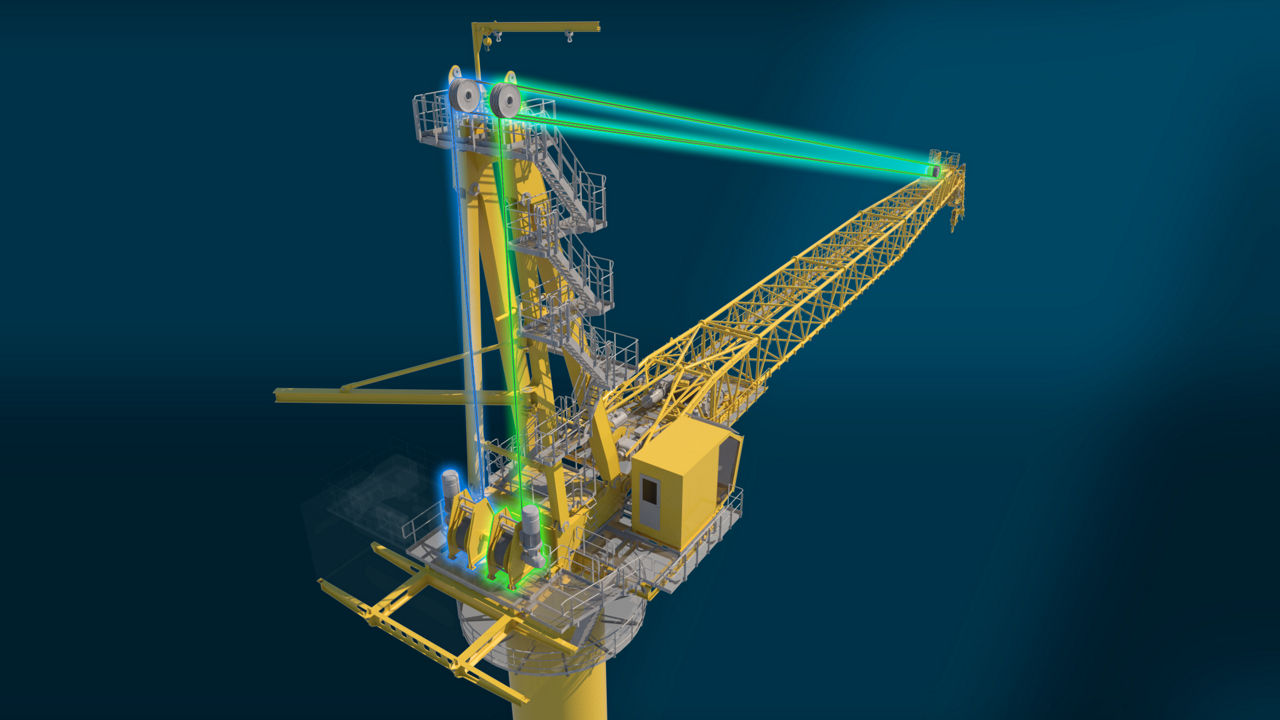

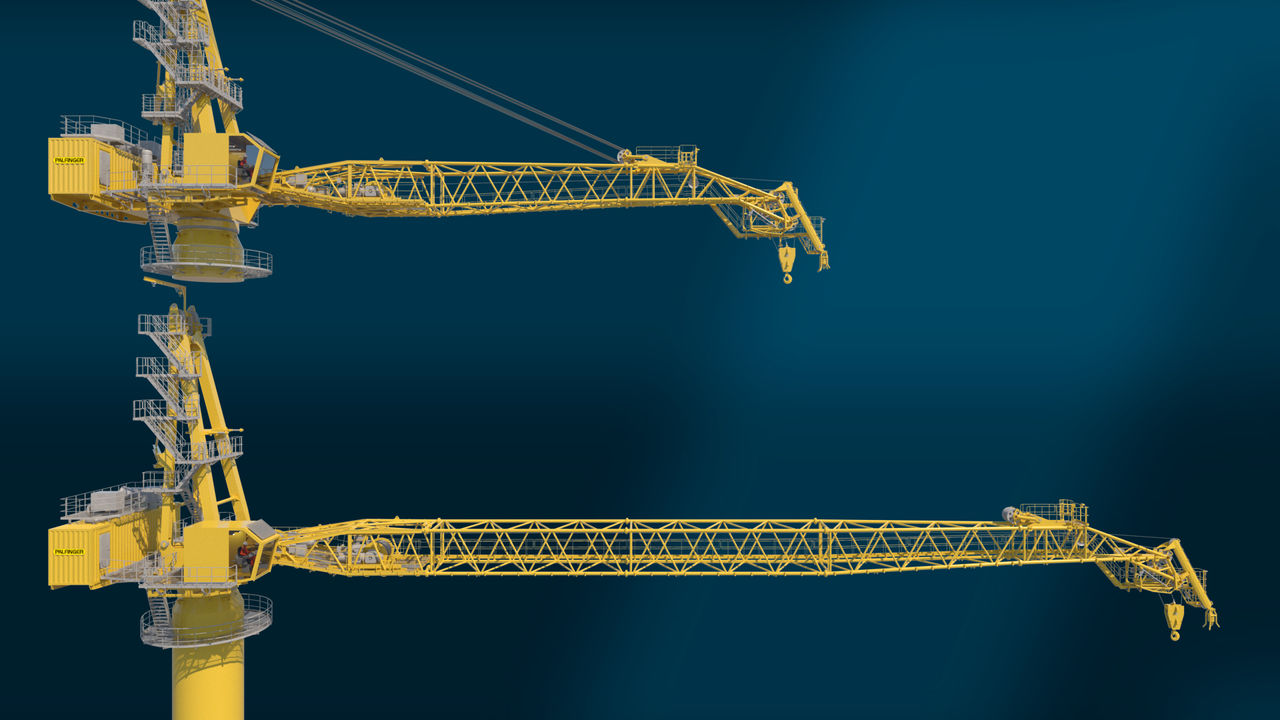

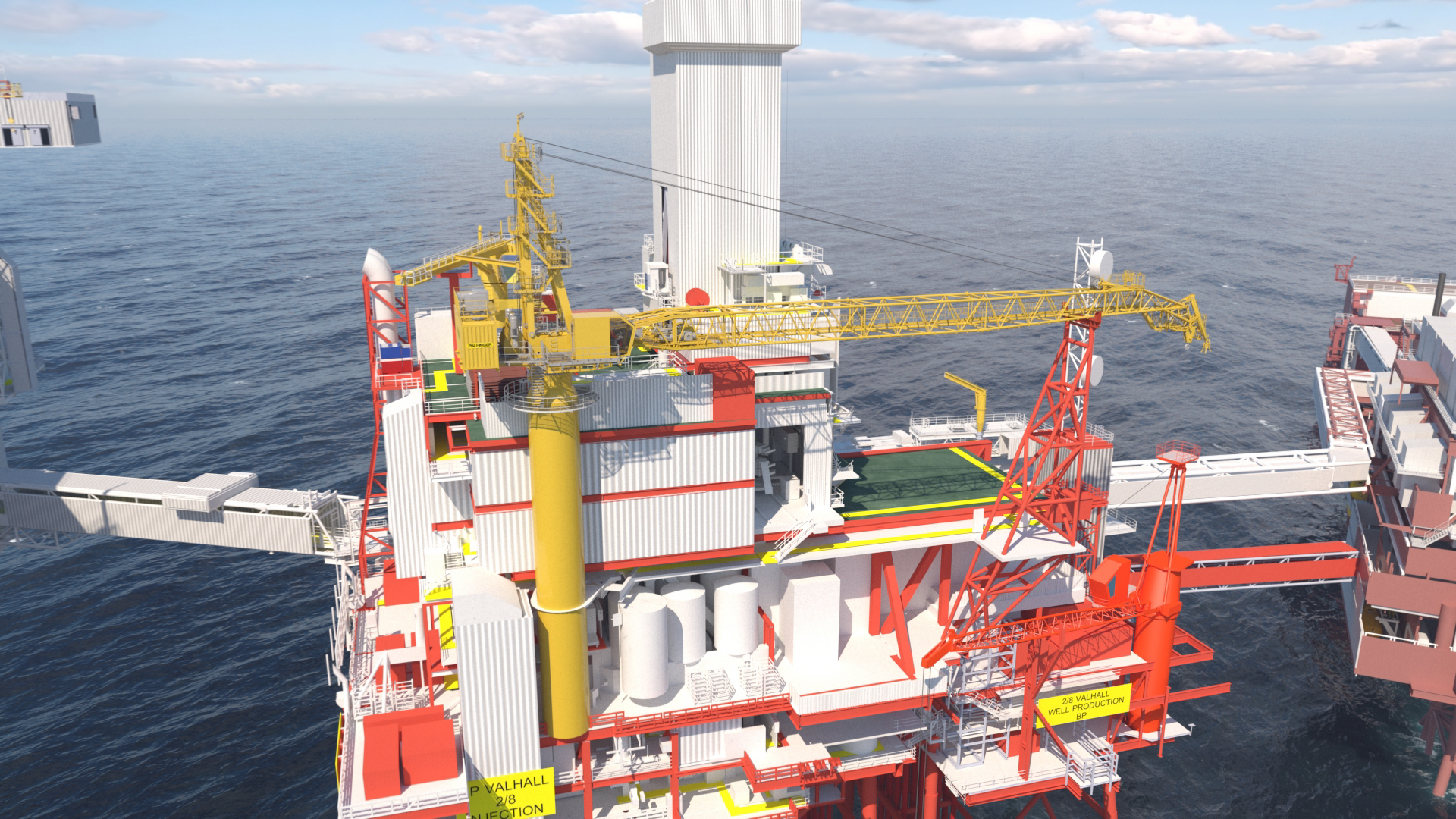

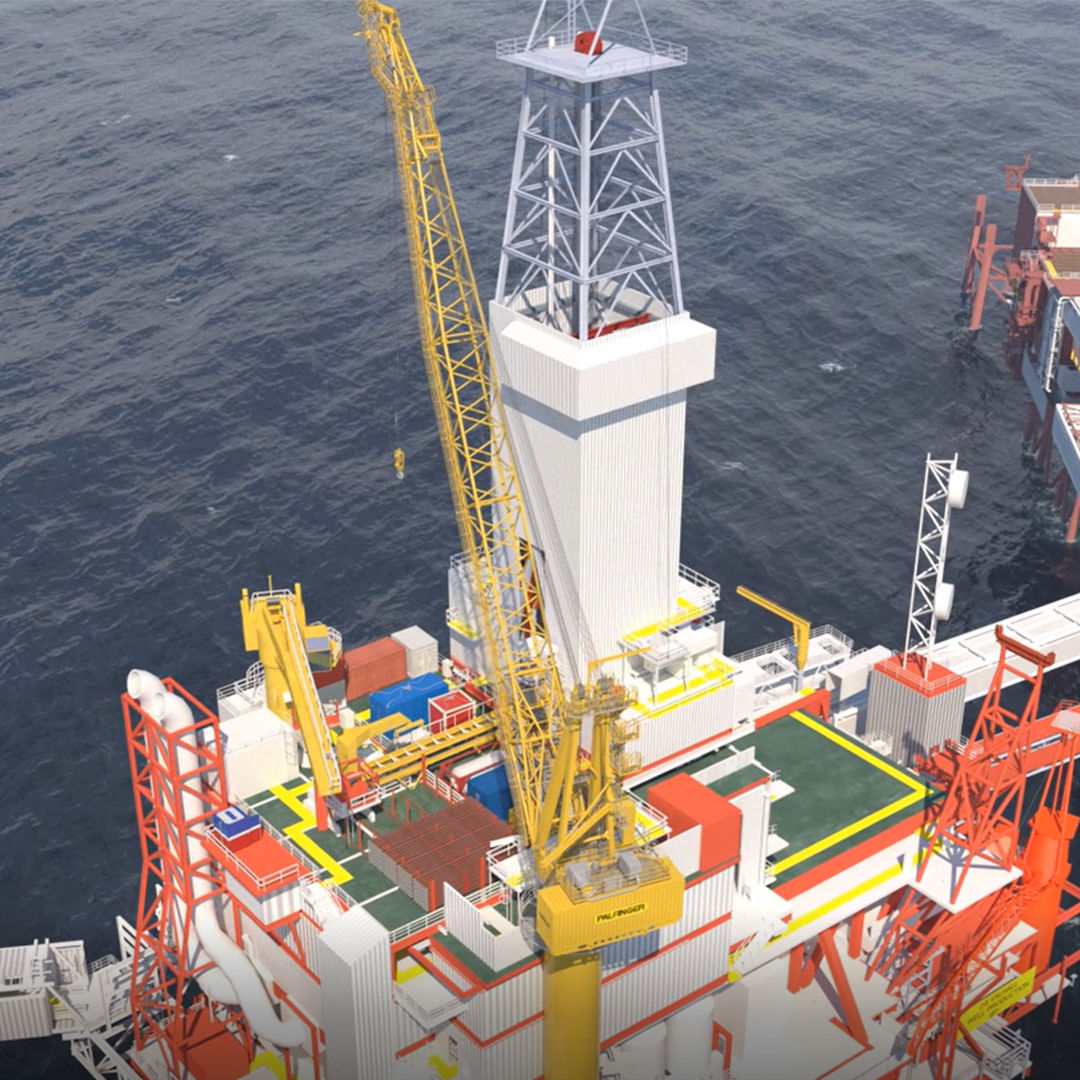

Modularized Offshore Crane System
We deliver customized solutions for offshore operations.
High-Risk Operation Features
We enhance safety and control in critical operations.
Range
| Crane Type | Max. Outreach (m) | Max. Lifting Capacity (t) | Lifting Moment (kNm) | Total Moment (kNm) | Pedestal Diameter (mm) | Dead Weight (t) |
| DKW 1200 | 50.0 | 80.0 | 12000 | 18000 | 2550 | 60.0 |
| DKW 1600 | 55.0 | 100.0 | 16000 | 34000 | 3166 | 80.0 |
| DKW 2500 | 70.0 | 150.0 | 25000 | 50000 | 4000 | 130.0 |
