Mobile and Fixed Installation Unit Available
The OPTS is available in two distinct configurations, designed to meet different operational requirements in offshore environments.

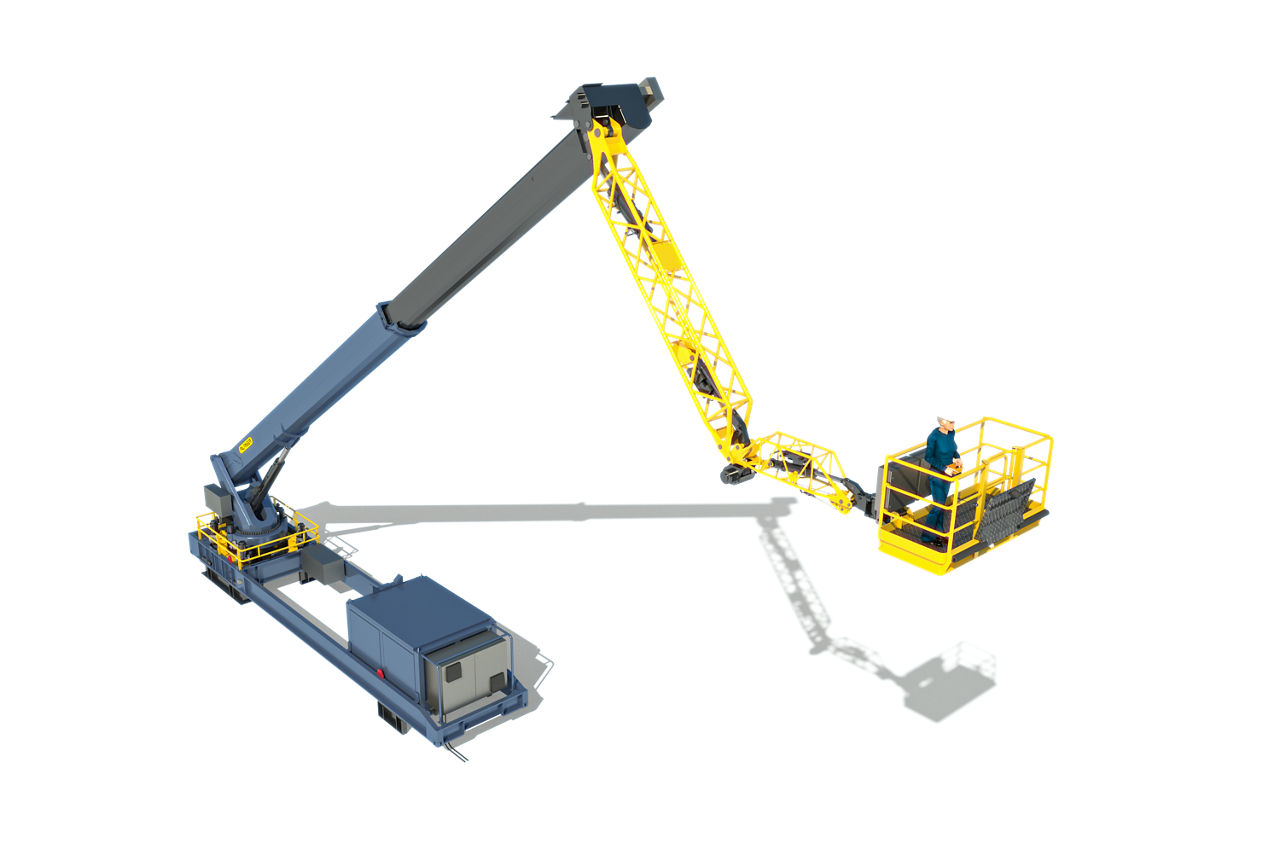

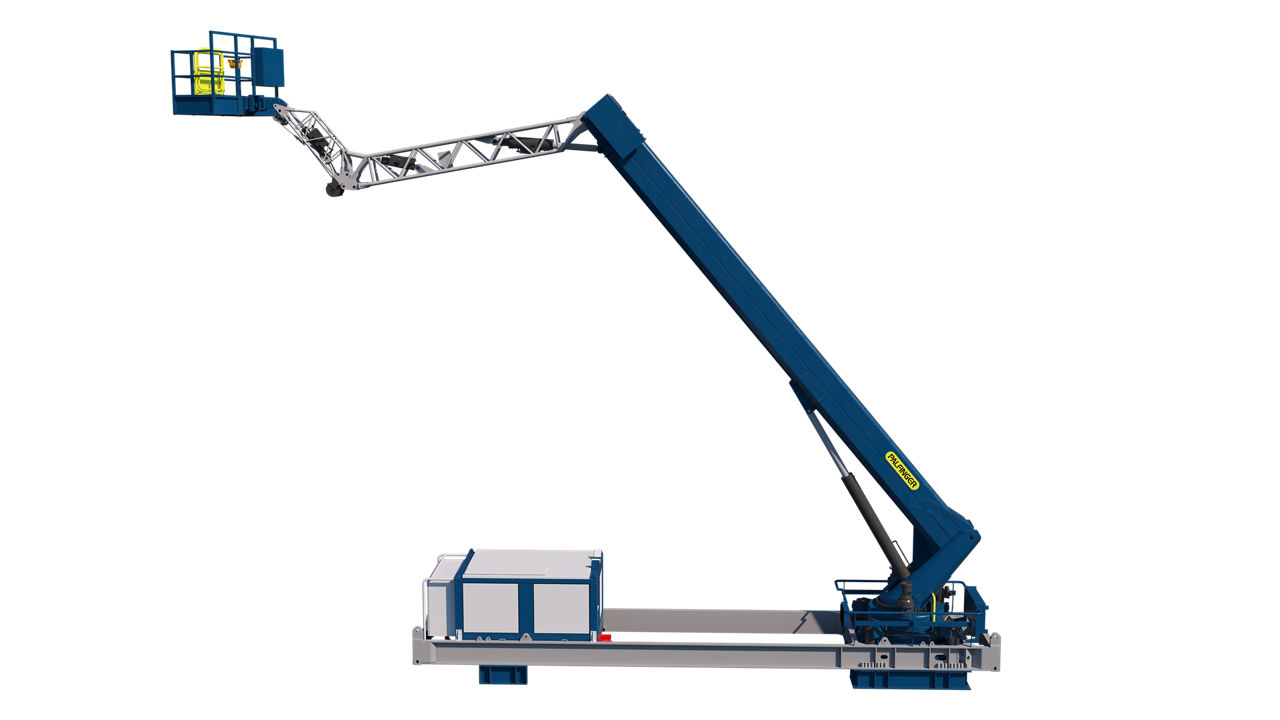

The first version is a fully mobile unit, built in the same dimensions as a 40-foot container. Its design ensures easy transportation, allowing quick mobilization and installation on a wide range of vessels. In this configuration, the Hydraulic Power Unit (HPU) is integrated and mounted on the base frame, so it is only necessary to secure the OPTS on deck and provide it with power to be able to use it for personnel or cargo handling.
The second version of the OPTS is designed for fixed installation on a vessel. In this configuration, the base frame is not required, and the HPU can be installed below deck, reducing the center of gravity (CoG) for enhanced vessel stability. The OPTS can be permanently welded to the deck structure in the most optimal position.
Safe, Quick, and Efficient

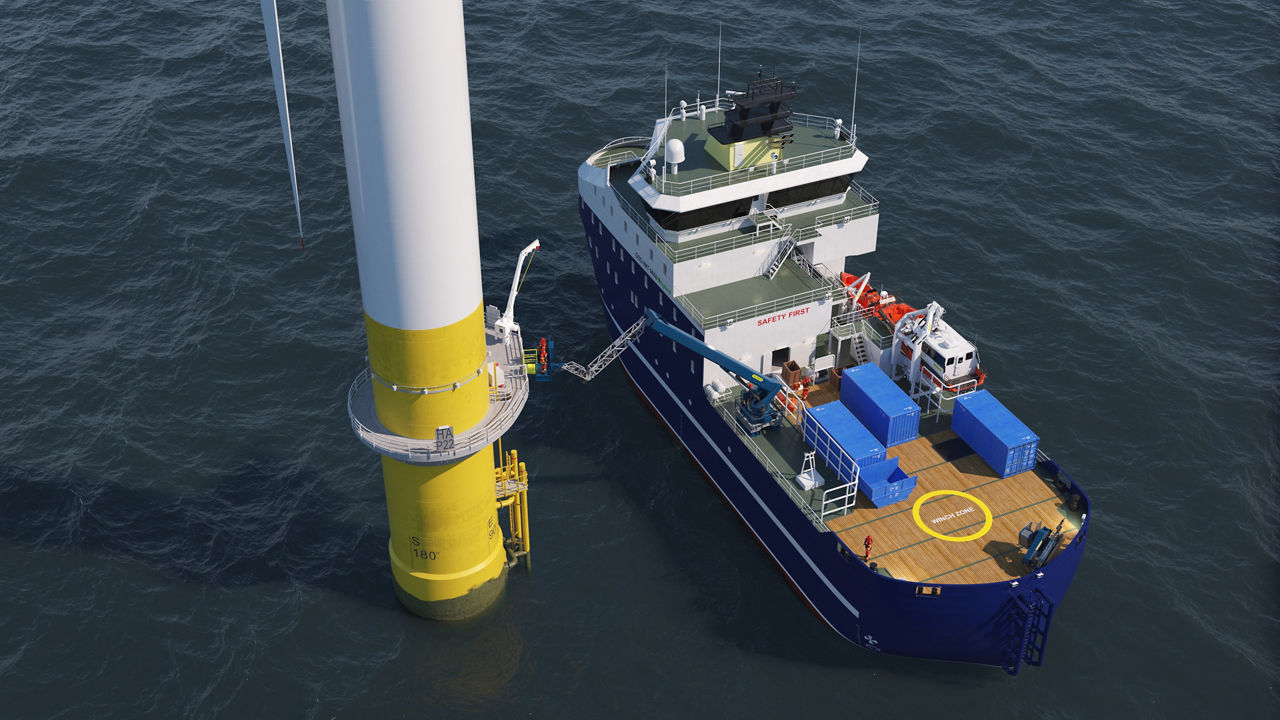

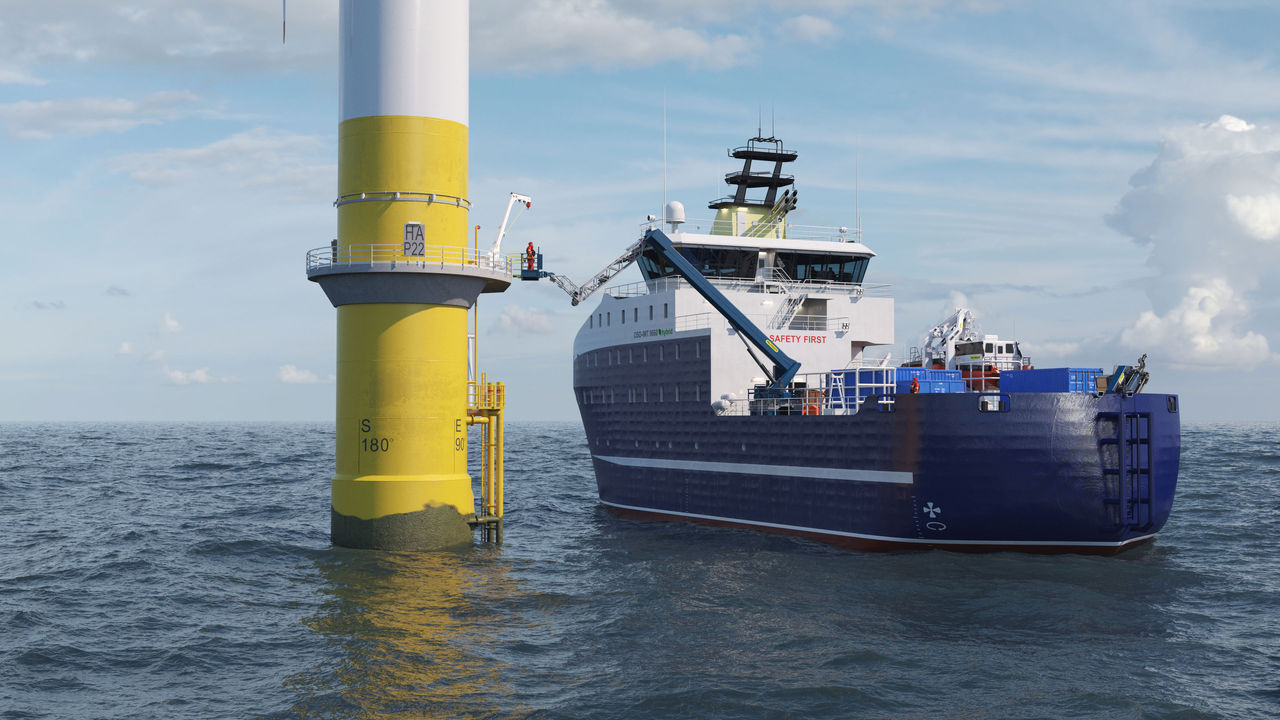

The OPTS is a hydraulic, multifunctional aerial lift designed for safe and efficient transfer of personnel and materials between vessel and offshore structures.

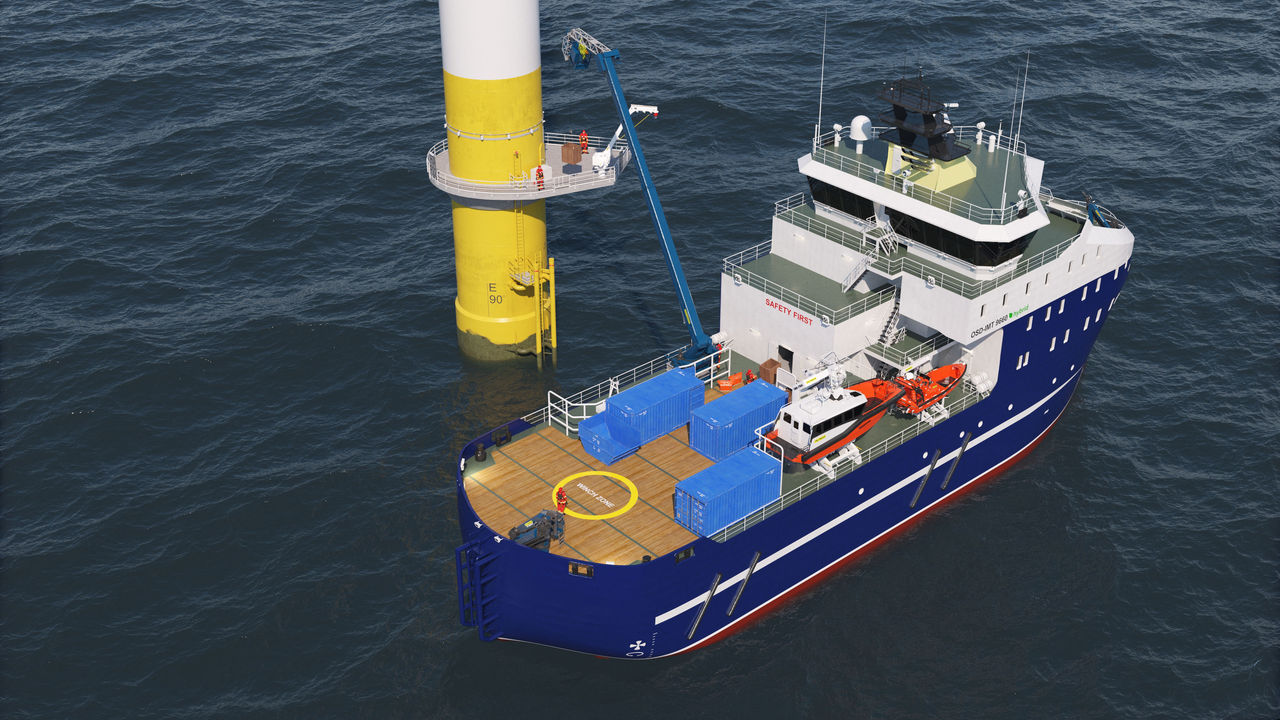

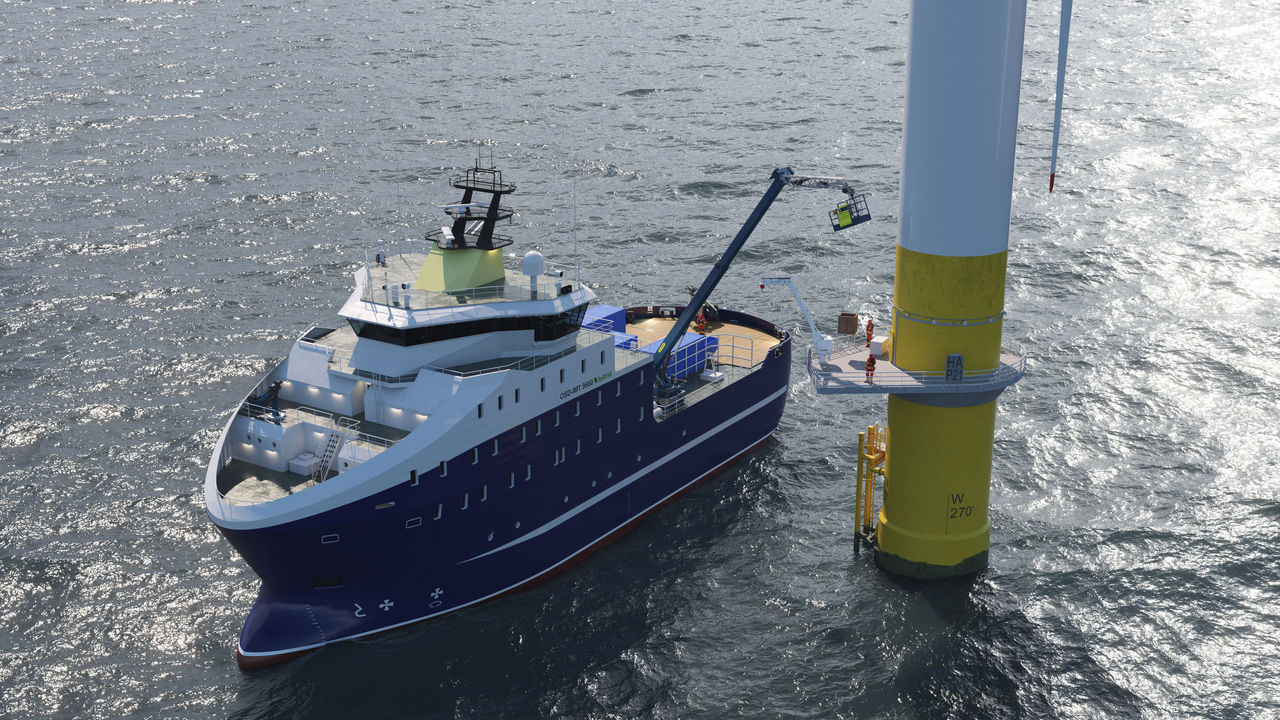

Technically, the OPTS features multi-axis motion compensation, enabling it to automatically absorb vessel movements caused by waves. It can lift up to six people simultaneously and cargo loads up to 1,000 kg, offering unmatched versatility and reliability compared to conventional offshore lifting systems.
Light Weight, High Stability
Operating directly from the vessel deck, the OPTS enables workers to move safely from base to workplace without crossing height differences.
Its lightweight design – approximately 15 tons in the fixed version – minimizes impact on vessel stability, making it perfectly suited for smaller offshore work vessels.
Features
Features
- Easy installation
- High operational accuracy due to low weight
- Easy transportation as 40 HQ container with a weigh of approximately 25 tons
- Easy, accurate and stable load lifting operations
- Multifunctional options including on board rescue operations and accessability to remote control fire-fighting operations.
- ”Return home safe” function in case of emergencies
- Full operational logging to indicate maintenance requirements
- Fully compensated and redundant
Options
Options
- Passenger transfer in full compensation mode with an accuracy of 10 cm
- Load lifting till 1,000 kg in Roll, Pitch and Heave compensation mode
- Rescue operations or launching operations
- Pilotage or firefighting operations with remote control
Technical Specifications
Technical Specifications
| Standards: | DNV-ST-358 Ed. Sept 2017 (Jul 2022) Offshore Gangways DNV-ST-378 Ed. Jul 2019 (Oct 2021) Offshore and Platform Lifting Appliances |
| Sea state: | Sea state 5 * Hs = 2.5 meters * *Deck motion depending on deck position and vessel RAO |
| Deck motions: | Roll: ± 6° Pitch: ± 6° Heave: Up to 4 meters Period: T = 6-12 seconds |
| Personnel transfer time: | ~60 seconds |
Maximum wind speed: | 20 m/s in operation 63 m/s in parked (sea fastened) position |
| Operating temperature: | Minimum -20°C Maximum +45°C |
| Approx. accuracy: | ~10 cm |

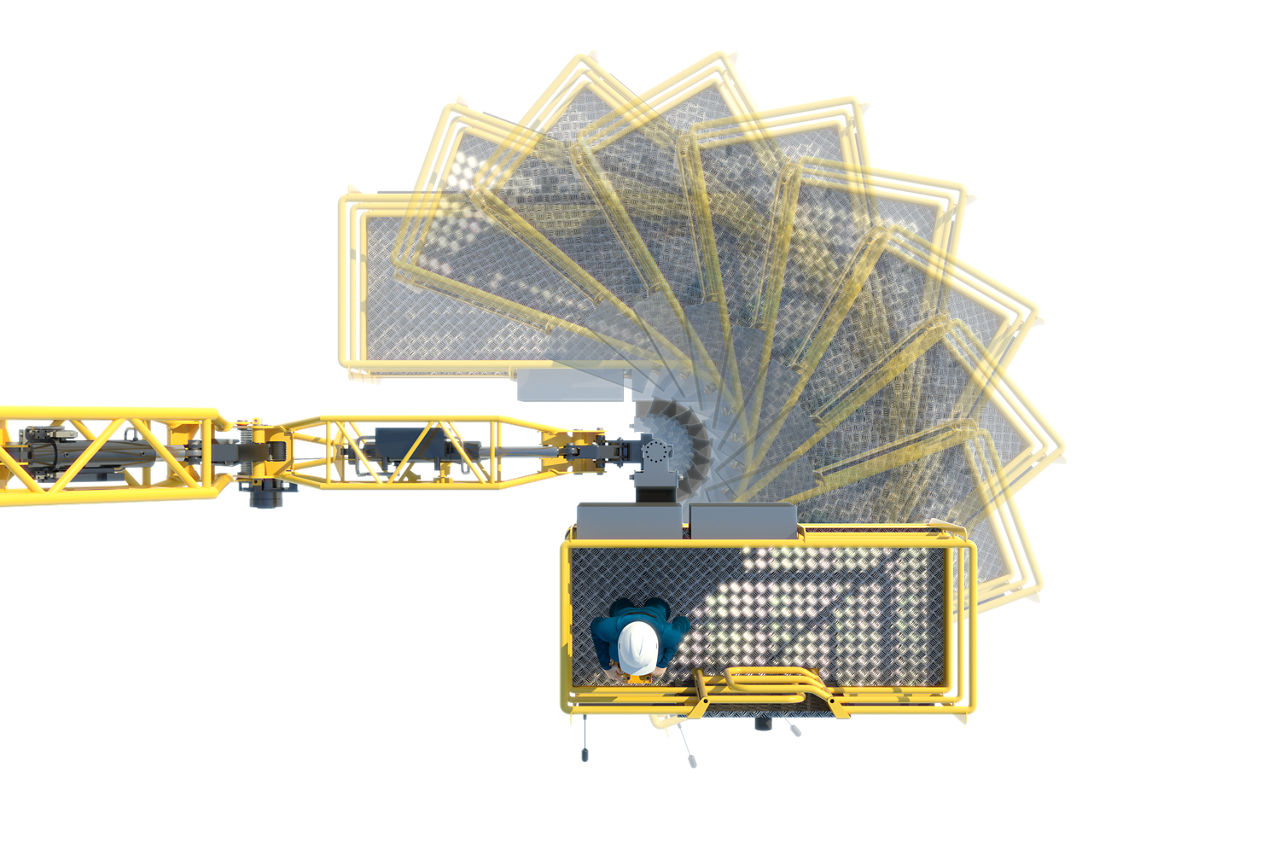

| Slewing range: | ± 200° |
| Maximum number of persons in basket: | 600 kg at 24 meters (corresponding to 6 persons including operator) |
| Cargo lift capacity: | 1,000 kg at 24 meters |
| Power requirements: | 2 x 75 kW at 400 VAC 2 x 87 kW at 440 VAC |
| E supply: | Main power: 440 VAC / 60 Hz or 400 VAC / 50 Hz Auxiliary power: 230 VAC / 60 Hz or 230 VAC / 50 Hz |
| Weight: | Mobile unit: 27.5 tons (incl. weight of HPU), 28.7 tons with oil Fixed installed unit: 17 tons (excl. HPU); Weight of HPU approx. 5.9 tons (dry weight), 7.5 tons (with oil) |
| Dimensions: | Mobile unit: 40' x 10' x 8' HQ container Transport mode: 40' x 10' x 8' HQ container Fixed installed unit footprint: 2,400 mm x 3,600 mm (8' x 12') |
| PERSONNEL (BASKET) LIFTING MODE | |
| Lifting height above deck: | Non-compensation mode: 27 meters from deck level at approx. 11 meters outreach Compensation mode for max. roll/pitch/heave: 25 meters from deck level at approx. 14 meters outreach |
| Outreach: | Non-compensation mode: 27 meters from slewing rotation axis Compensation mode for max. roll/pitch/heave: 24 meters from slewing rotation axis |
| Lifting height below deck: | Non-compensation mode: approx. 5 meters from deck level Compensation mode for max. roll/pitch/heave: approx. 1.2 meters from deck level |
CARGO HANDLING (CRANE) LIFTING MODE | |
| Lifting height above deck: | Non-compensation mode: 26 meters from deck level at approx. 9 meters outreach Compensation mode for max. roll/pitch/heave: 21 meters from deck level at approx. 12 meters outreach |
| Outreach: | Non-compensation mode: 25 meters from slewing rotation axis Compensation mode for max. roll/pitch/heave: 22 meters from slewing rotation axis |
