Telescopic Boom Cranes

Compact Design, Powerful Reach

PALFINGER telescopic boom cranes combine a compact pedestal slewing design with hydraulic cylinder luffing. When stored in parking position, they require minimal space – ideal for vessels where every meter counts – yet extend up to 36 m for versatile lifting operations.

Flexible Handling for Every Operation

With their telescopic boom extension, these cranes offer exceptional reach and flexibility for safe, fast, and precise material handling. From short-range supply transfers to long-distance loading, they adapt seamlessly to any marine, offshore, or wind application.

Low Maintenance, High Efficiency

Designed for reliability, PALFINGER telescopic boom cranes feature low weight, reduced complexity, and easy maintenance. With lifting moments from 140 to 12,000 kNm and numerous optional features, they deliver consistent performance tailored to your requirements.

Applications

Marine

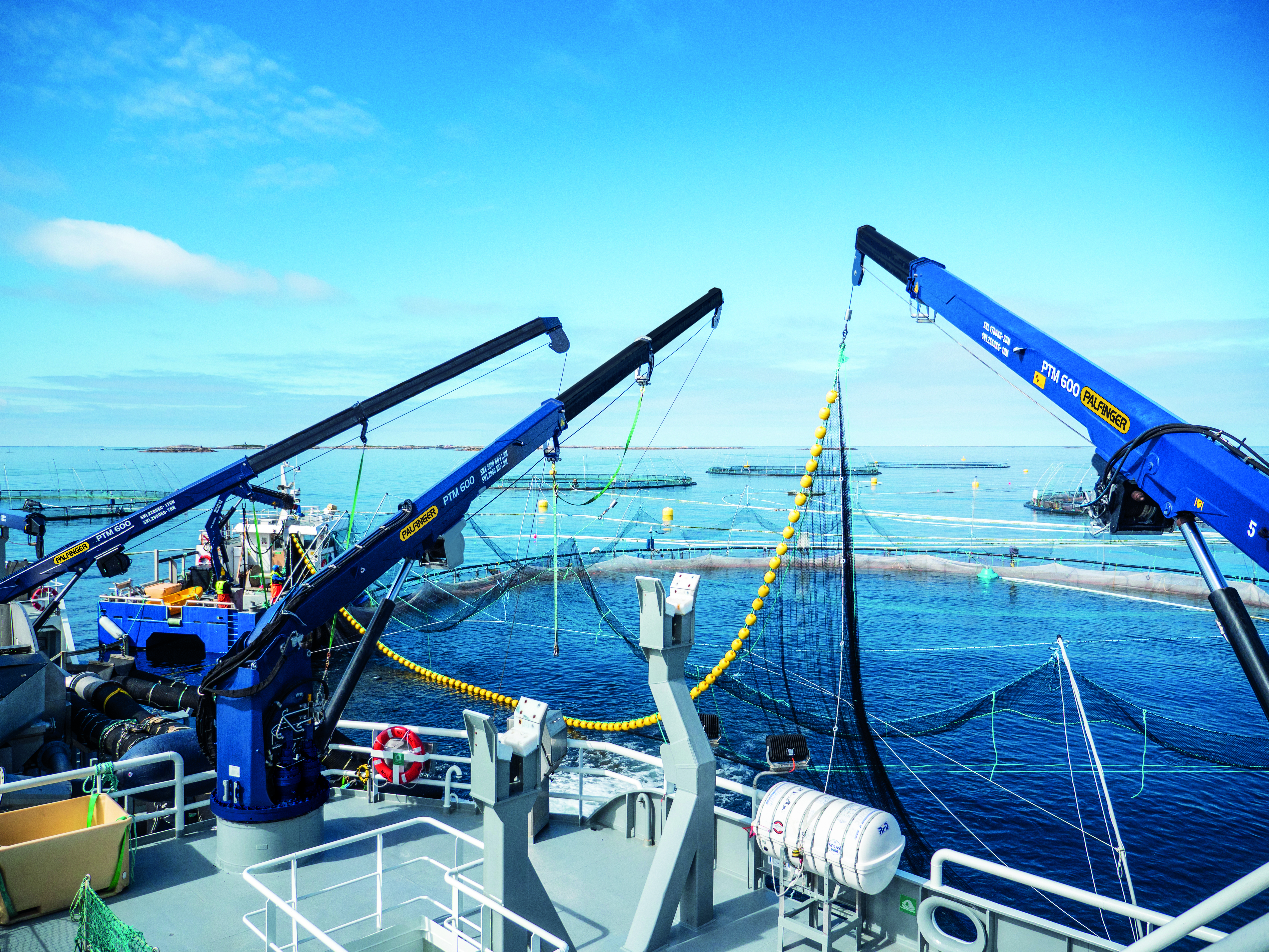

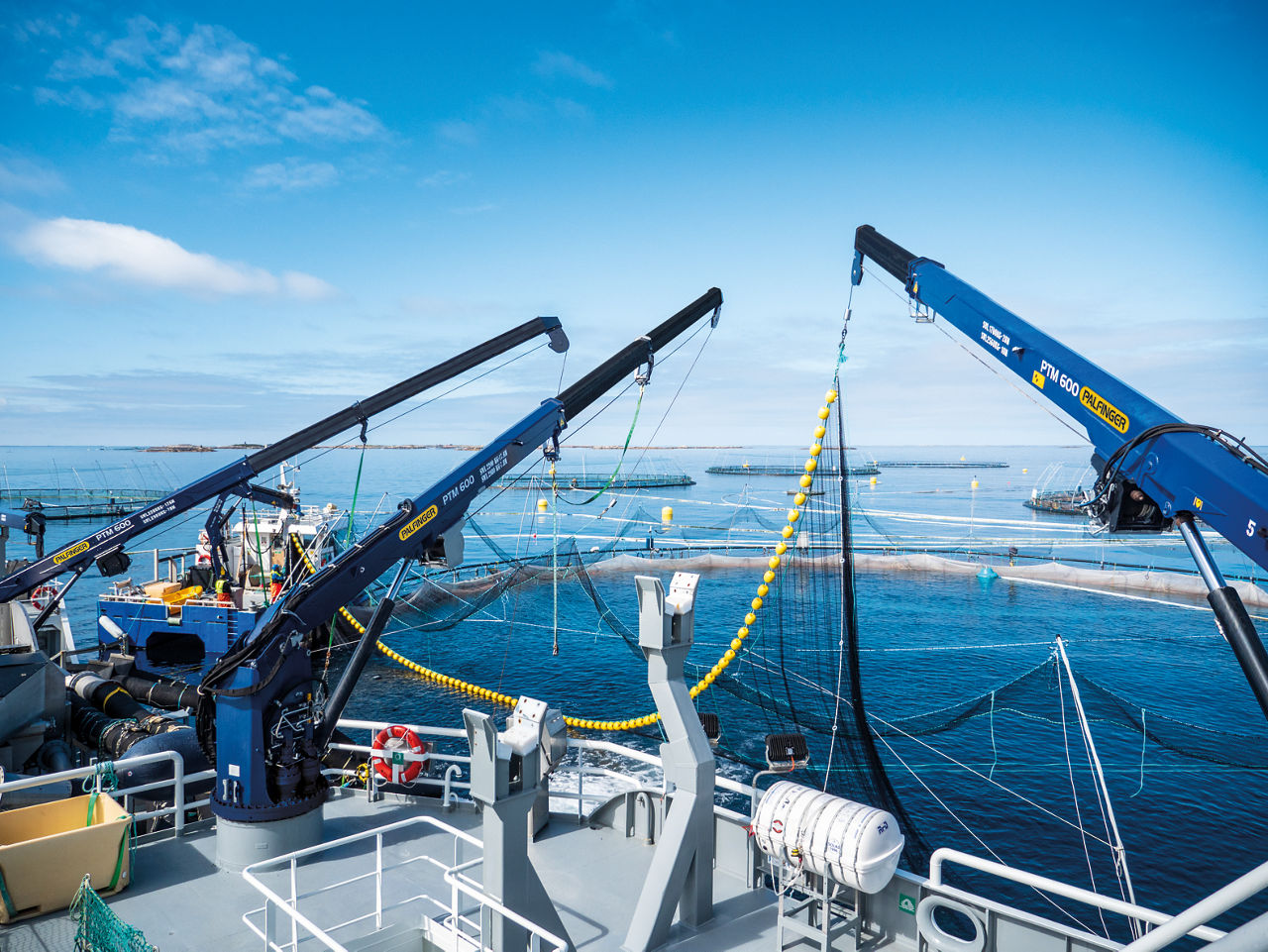

The boom extension features a telescopic inner section that provides a flexible and wide operational radius while keeping the crane compact when stored. With their low weight and simplified design, PALFINGER telescopic boom cranes are highly maintenance-friendly. They are commonly used on fish farming vessels and larger service vessels as service cranes, provision cranes, and container or cargo handling cranes, ensuring reliable and efficient operation across diverse marine applications.

PALFINGER

Offshore

PALFINGER telescopic boom cranes are built on a robust pedestal slewing design with hydraulic cylinder luffing and are available with lifting moments of up to 12,000 kNm. Supplied according to customer requirements and equipped with numerous optional features, they are mounted on rigs, platforms, and offshore vessels for a wide range of operations. Commonly used as deck cranes (shipboard), provision cranes, and ship-to-ship cranes, they provide reliable performance for flexible material handling and safe offshore operations.

PALFINGER

Wind

PALFINGER telescopic boom cranes for the wind industry ensure safe and efficient loading and unloading of supply vessels, as well as flexible material handling, servicing, and equipment transfer on offshore substations. Commonly used as substation cranes, they are customized to perform reliably in any sea state (SWH). With optional features that enhance functionality and safety, PALFINGER MARINE telescopic boom cranes are designed in accordance with all customer requirements, rules, and regulations.

PALFINGER

Special Developments

Winterization

We ensure reliable performance in extreme cold.

Winterization

Marine and offshore cranes from PALFINGER deliver outstanding performance even under the toughest environmental conditions.

For operations in extremely cold climates, PALFINGER has developed a range of innovative solutions that ensure safe and reliable performance at temperatures as low as -50 °C. All designs comply with the regulations of DNV, BV, LRS, ABS, and other relevant classification societies.



Features:

  • Fully insulated and heated lightweight housing that protects sensitive components
  • Heat tracing for components located in exposed areas
  • Specially designed, heated operator cabin with extra insulation
  • Heated gangways, stairs, ladders, and railings
  • Special hydraulic oil and grease formulated for cold climates
  • Heavy-duty components designed to withstand ice removal
  • Structural designs that minimize excessive ice build-up
Vessel at sea operating in extremely cold climate
www.stoyanvassevphotography.com
Features

Features

  • Hoisting capacity up to 50 metric tons
  • Jib radius up to 40 meters
  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated Electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
  • Anti-collision system

Global Service Competence

Solutions you can rely on

PALFINGER provides complete marine service solutions to keep your deck equipment and lifesaving appliances performing at their best. With our global network of over 300 specially trained engineers, we deliver inspections, maintenance, refurbishments, and upgrades – plus spare parts for PALFINGER and OEM equipment, efficient repairs, and expert training programs. Our team ensures reliability, safety, and performance to keep your fleet running smoothly.



Service excellence at a glance:

  • Inspection and Maintenance
  • Refurbishments and Upgrades
  • Spare Parts and Repair
  • Agreements
  • Training
  • Industrial Services | Rope Access
  • Hook Replacement



Dive into our Marine service solutions
Options

Options

  • Remote control / operator’s cabin
  • Overload protection systems: MOPS & AOPS
  • Constant tensioning
  • Lifting of personnel – man-riding
  • External hydraulic power packs
  • Spray metalizing
  • Different painting systems
  • Crane certification according to selected rules and regulations
  • Active Heave Compensation (AHC)
  • ATEX Zone 1 and 2 execution
  • Tugger winches
Range

Product Range

Crane TypeOutreach (m)Lifting Capacity (t)Lifting Moment (kNm)Total Moment (kNm)Pedestal Diameter (mm)Dead Weight (t)
PTM Range
PTM 2006.0-14.03.3-1.0133-1982418852.8-3.2
PTM 4006.0-14.05.5-1.8252-3303818853.7-4.3
PTM 6007.5-17.57.5-2.2385-56360310955.3-6.3
PTM 9008.2-20.09.9-2.7540-81298013257.8-9.2
PTM 12008.0-20.012.0-3.9780-9601375149011.5-12.8
PTM 15008.0-20.015.0-5.11020-12001765149012.7-14.0
PTM 180012.0-36.016.0-1.8648-19202555177019.2-23.0
PTM 300012.5-18.522.0-10.01850-27503720177527.0
DKT Range
DKT220 30.030.022004000180025.0
DKT300 30.030.030005000206527.5
DKT400 30.030.040006300205030.0
DKT500 32.035.050008000224035.0
DKT800 37.050.0800011500227155.0

Media Gallery

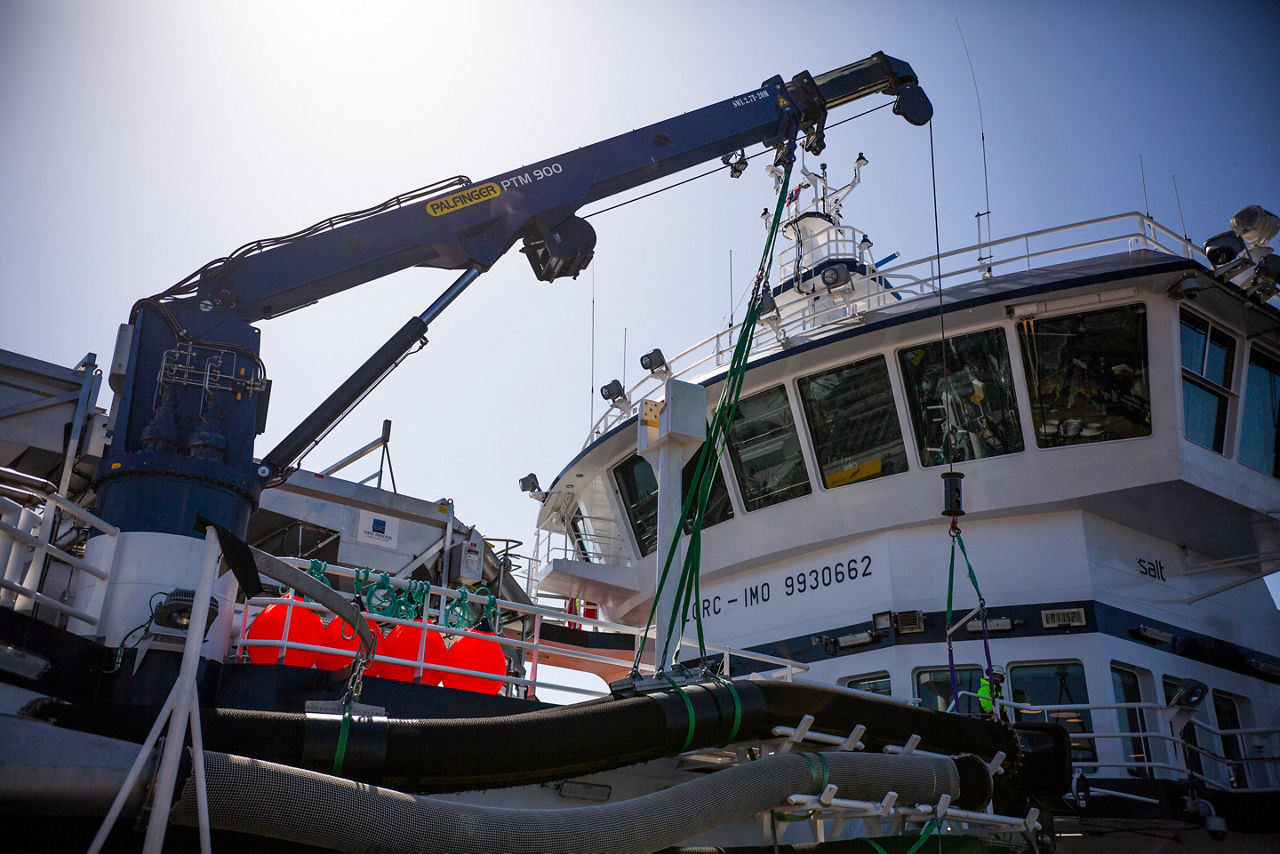

PTM 900

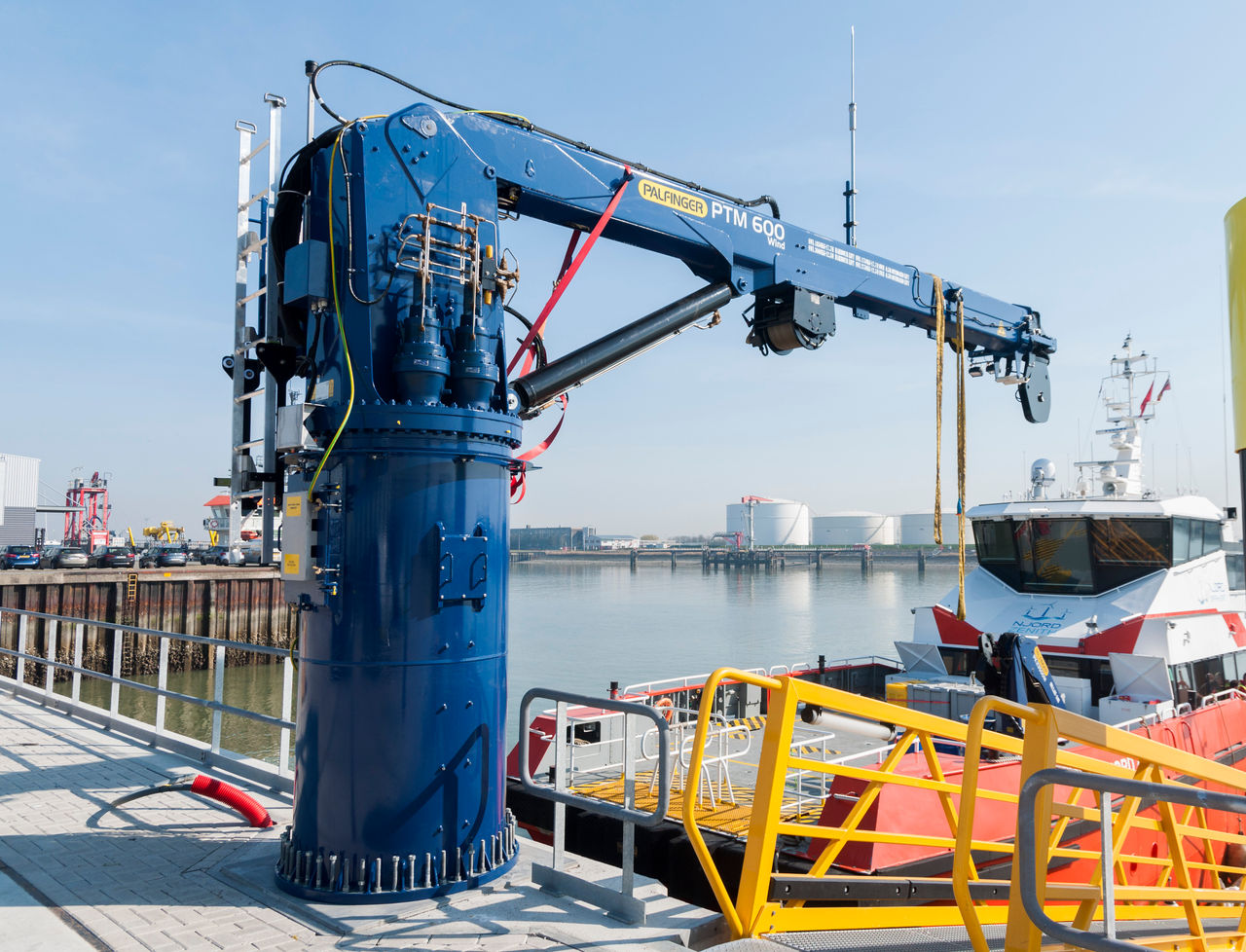

PTM 600

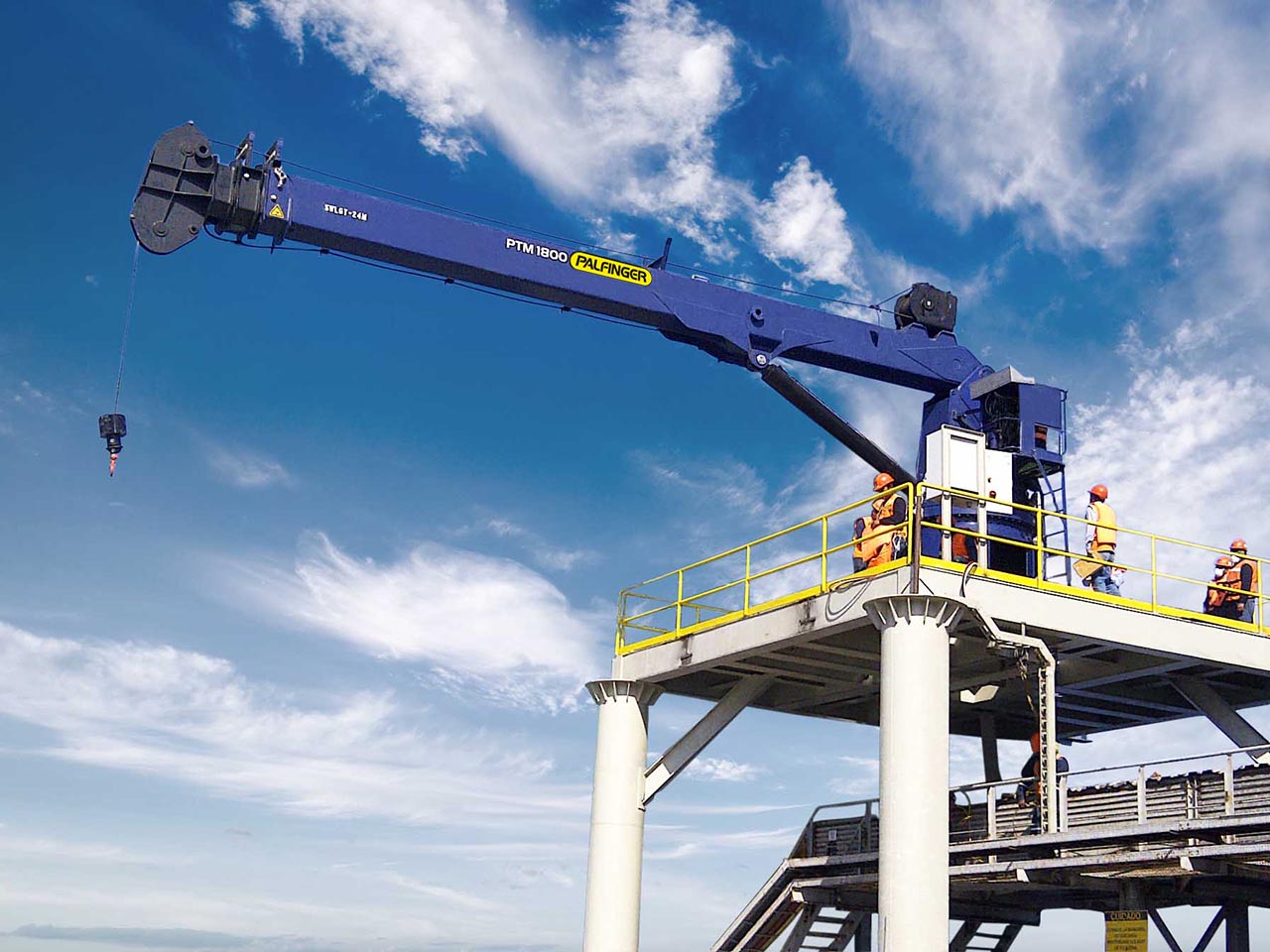

PTM 1800

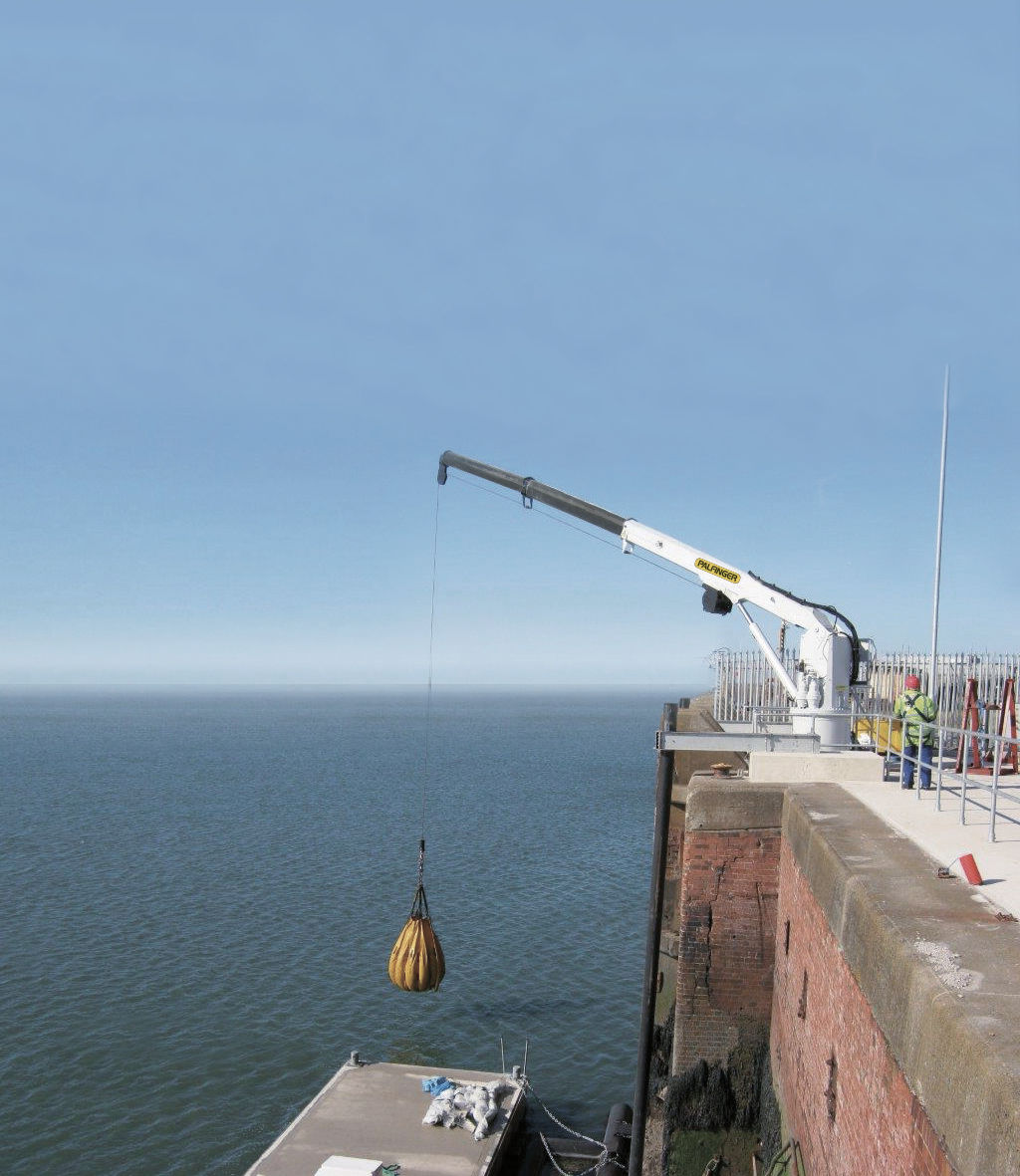

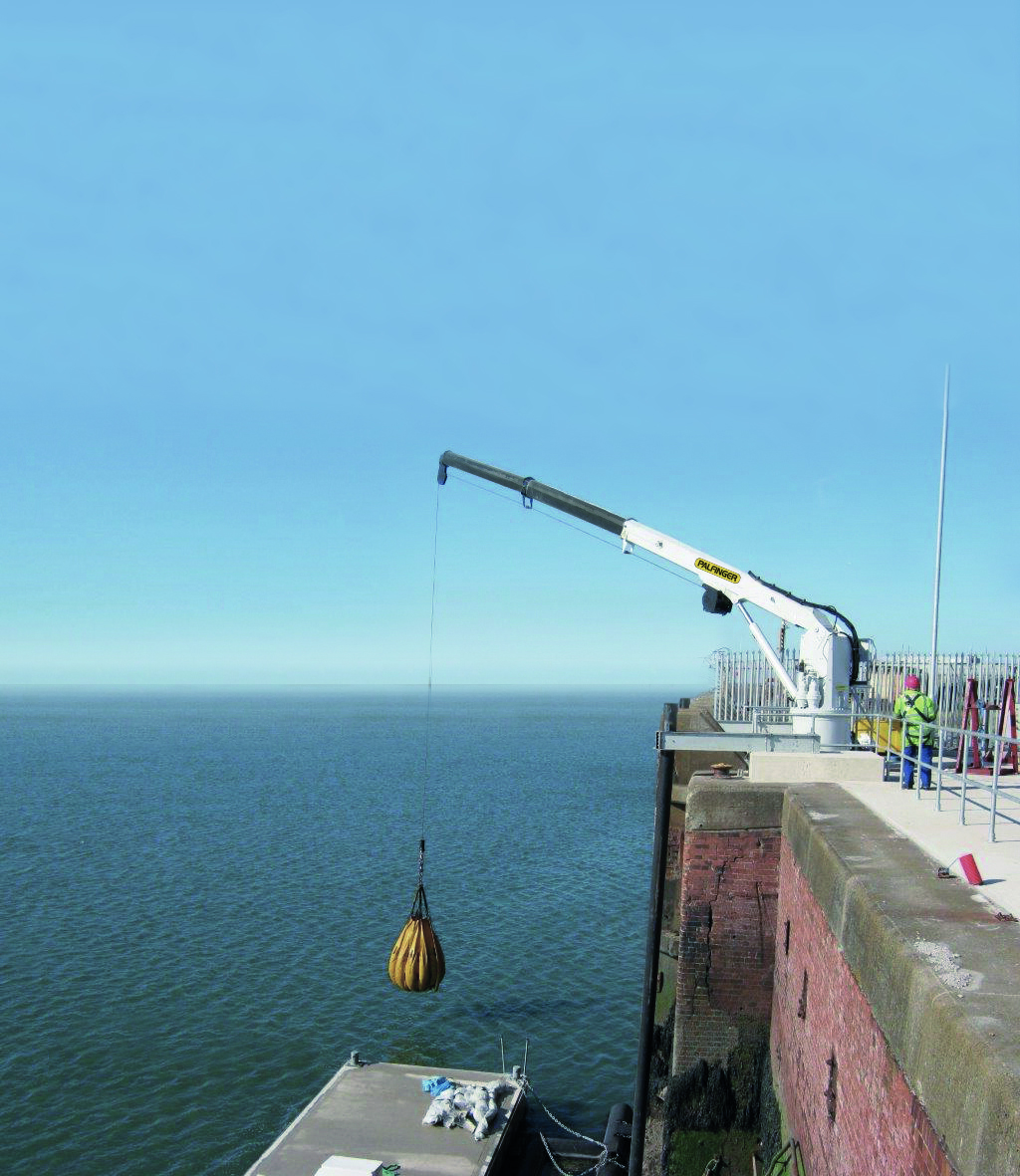

Telescopic boom crane PTM 600

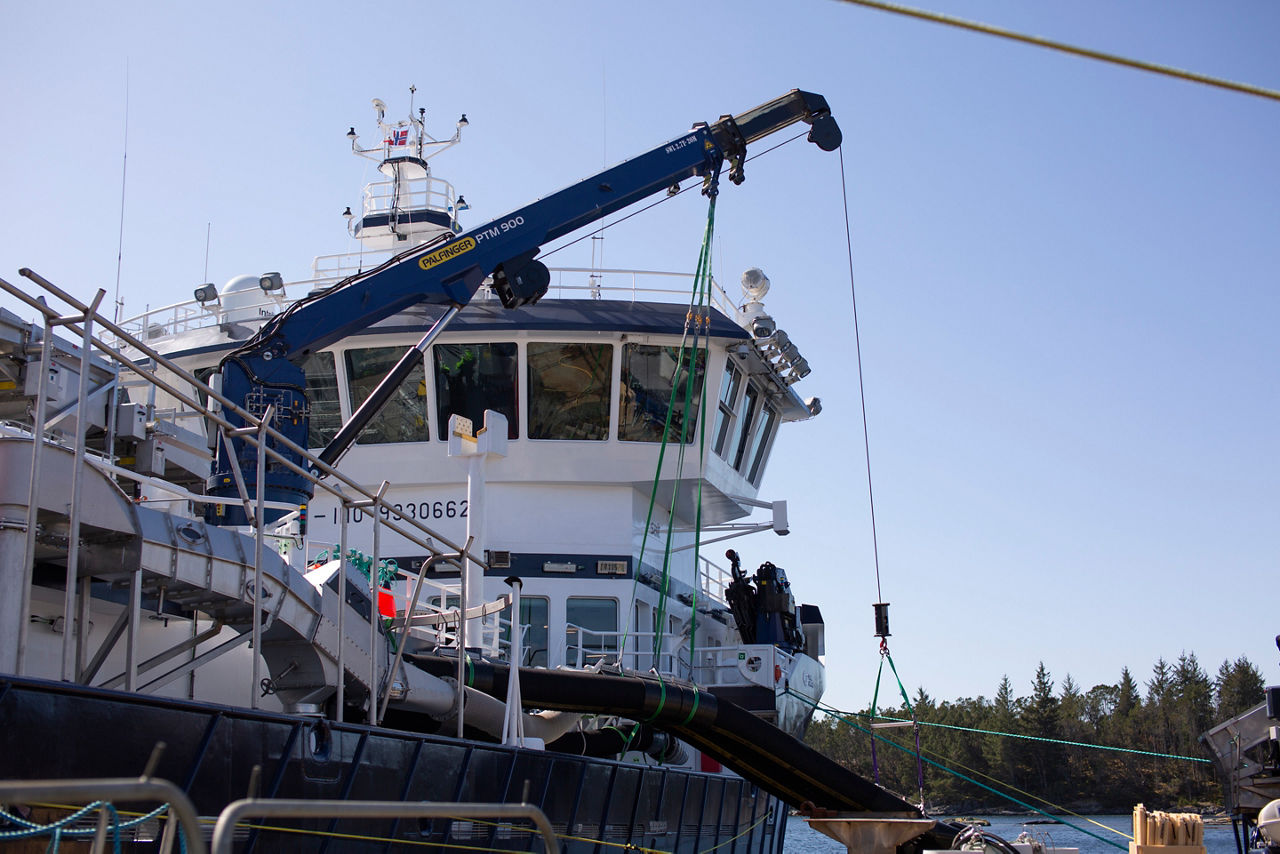

Telescopic boom crane PTM 900
