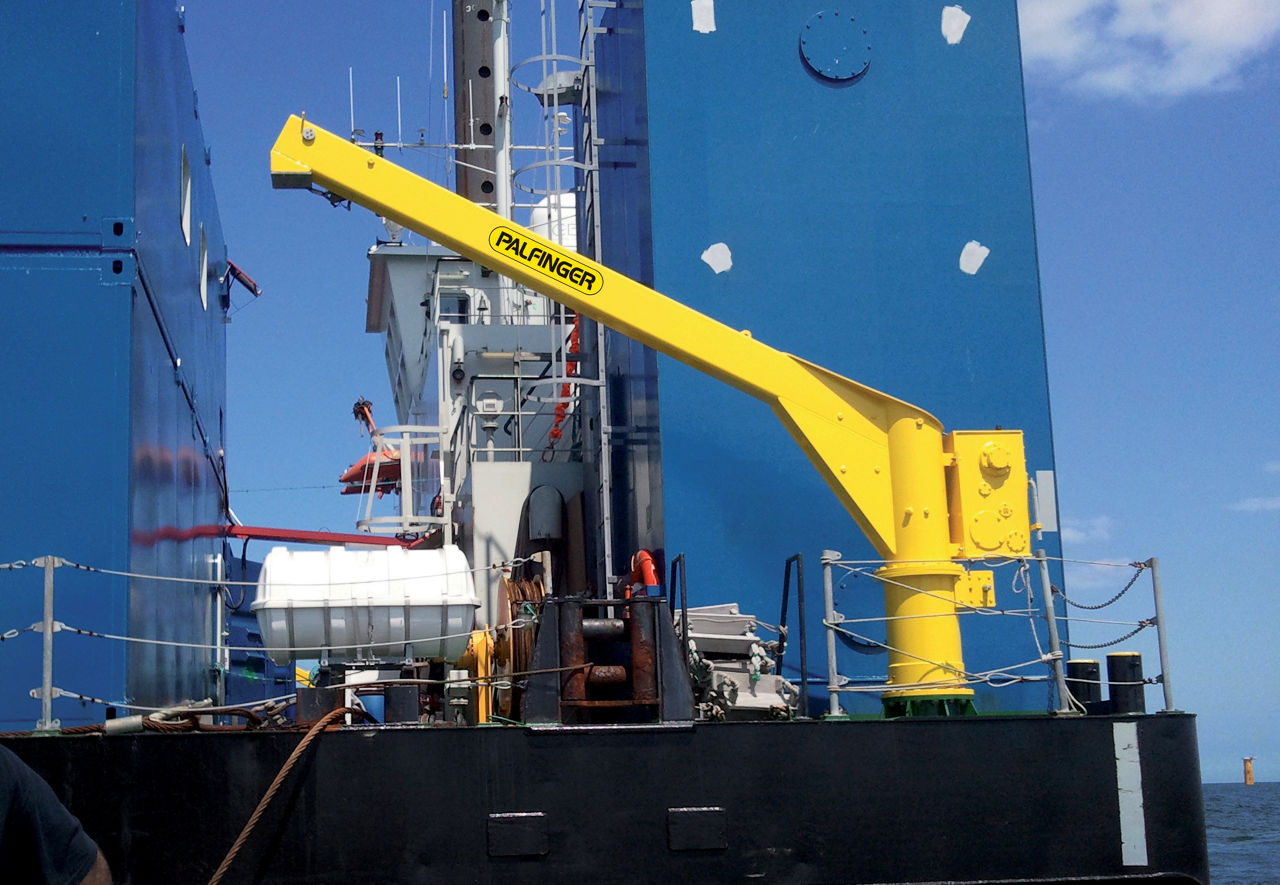

SCM-L Series
- Slewing davit for life rafts up to 39 people
- Plug-and-play system ready for immediate use
- Easy to operate
- Easy to install
- Standardized and proven design
- Different arm outreaches available
- Low cost of ownership
- Quick Return Unit for launching multiple rafts

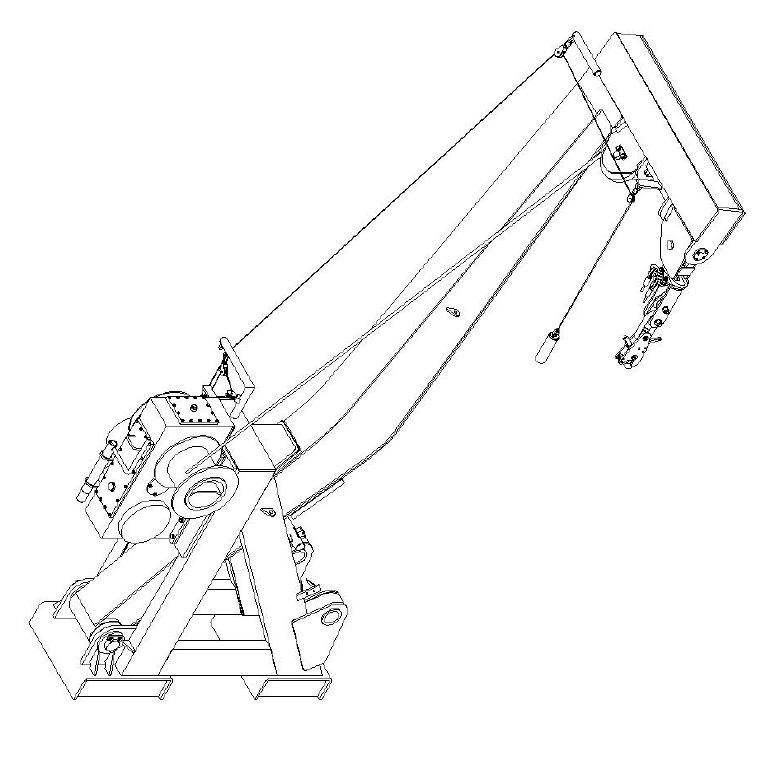

NPT20DRM
- Easy to install
- Compact footprint
- Economic solution
- Robust and straightforward to operate

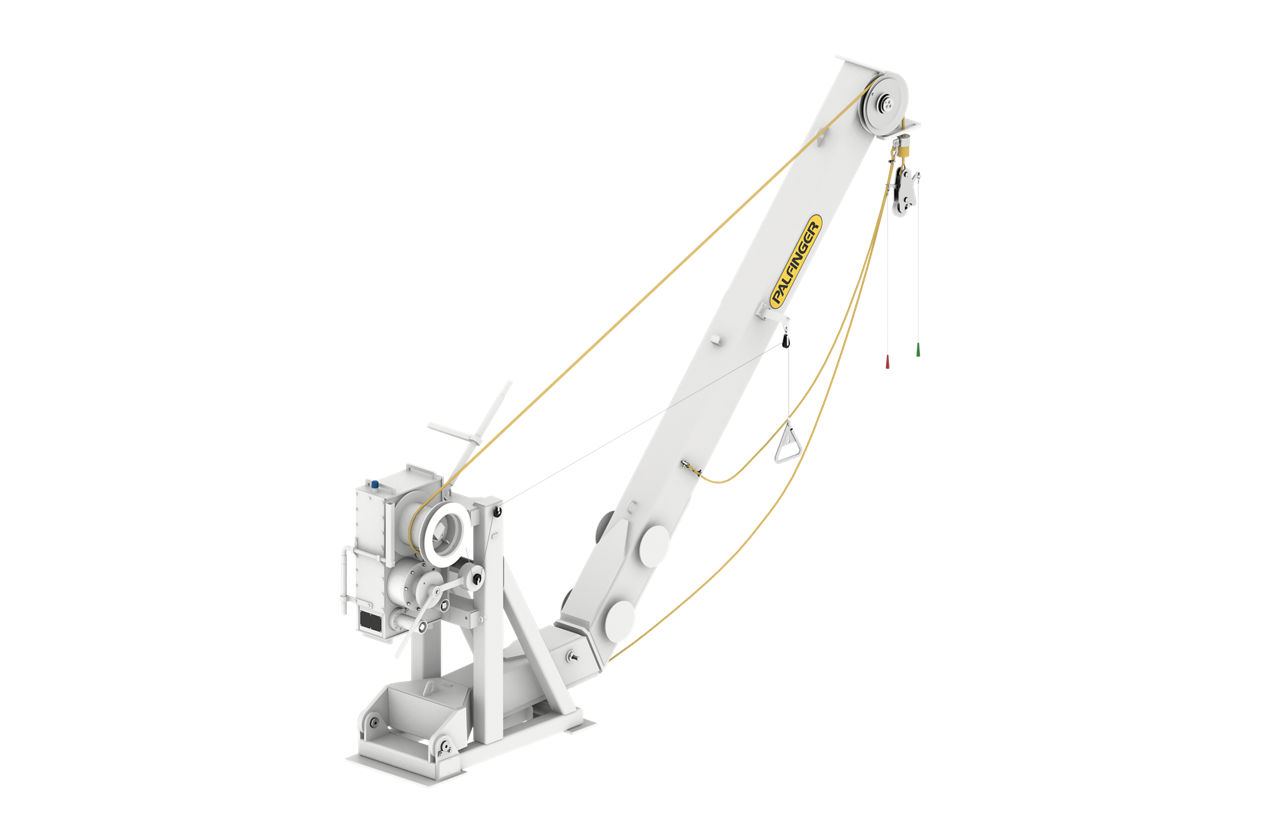

PBR 33
- Pivoting davit for life rafts up to 39 people
- Plug-and-play system with compact footprint for limited installation areas
- Fail safe and easy to operate
- Easy to install, with relatively low davit weight and low deck forces
- Standardized and proven design
- Compact footprint, perfect for limited deck space
- Low cost of ownership
- Quick Return Unit for launching multiple rafts

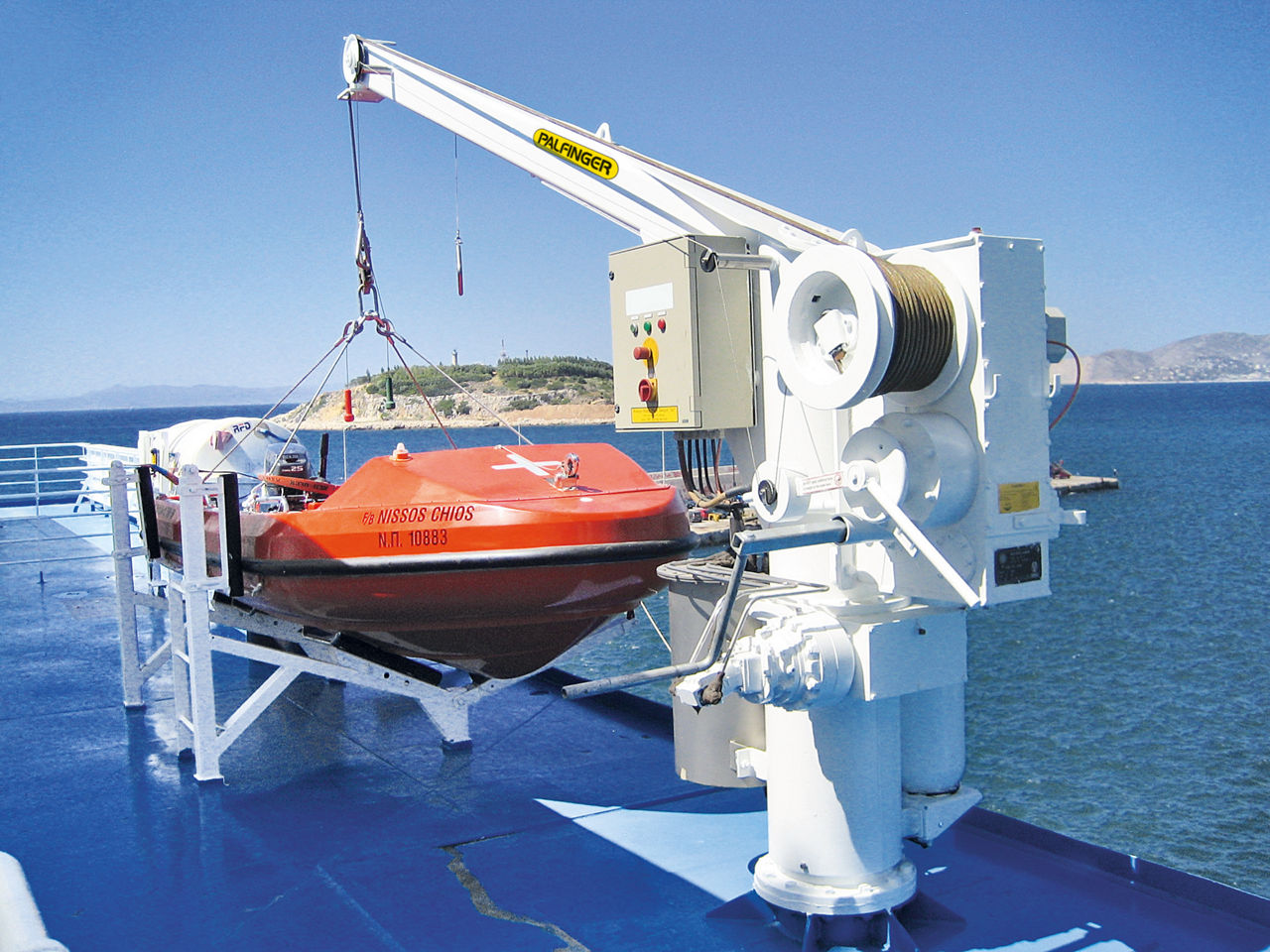

SCH-R Series
- Slewing davit for rescue boats up to 5.25 m (L.O.A.)
- Multiple safe working load configurations, suitable to handle most of the rescue boat models on the market
- Standard and proven design
- Easy to install (plug and play)
- Provided with self-contained stainless steel HPU
- Easy accessibility to main components for maintenance and inspection
- Quick delivery of spare parts (available at multiple locations worldwide)

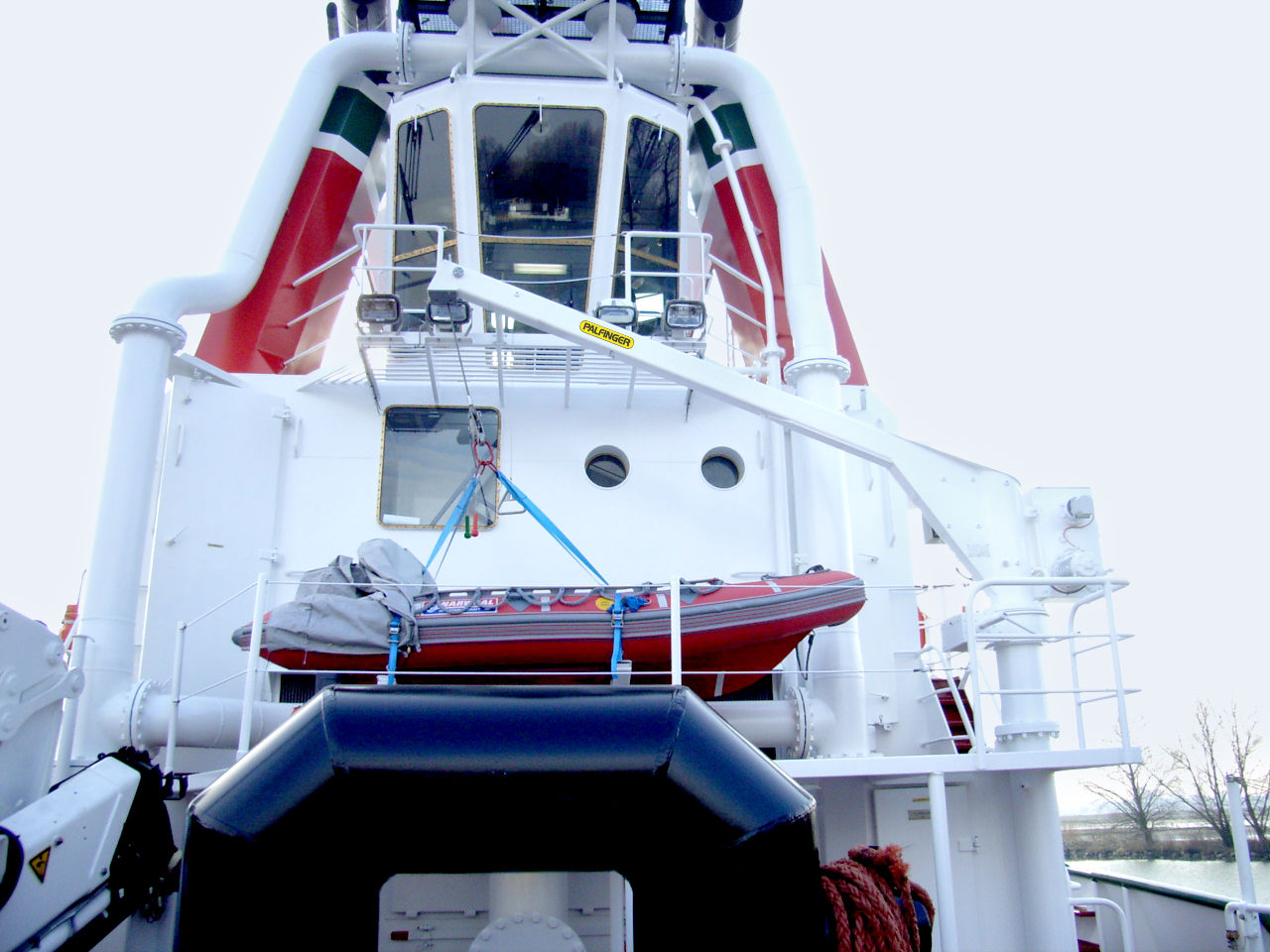

SCM-R Series
- Manual slewing davit for rescue boats handling
- Suitable to handle rescue boats up to 1,000 kg fully loaded
- Proven design and competitive price
- Easy accessibility to main components for maintenance and inspection
- Easy and time-saving installation
Options
Options
- Shock absorber
- Supports
- Converter
- Ex-proof
- Heating system
- Other options available on request
Range
Range
| Type | Safe Working Load (SWL) | Max. Boat Weight* | Radius | Operation |
| Rescue Boat Slewing Davits | ||||
| SCM 10-3.5 R | 1.02 t | 1020 kg | 3.5 m | Manual |
| SCH 10-4.0 R | 1.02 t | 1020 kg | 4.0 m | Hydraulic |
| SCH 10-5.2 R | 1.02 t | 1020 kg | 5.2 m | Hydraulic |
| SCH 12-3.5 R | 1.22 t | 1224 kg | 3.5 m | Hydraulic |
| SCH 17-4.0 R | 1.73 t | 1733 kg | 4.0 m | Hydraulic |
| Life Raft Slewing Davits | ||||
| SCM 14-3.5 L | 1.53 t | 1529 kg | 3.5 m | Manual |
| SCM 21-4.0 L | 2.53 t | 2345 kg | 4.0 m | Manual |
| SCM 33-4.0 L | 3.67 t | 3670 kg | 4.0 m | Manual |
| Life Raft Gravity Davits | ||||
| NPT20DRM | 2.04 t | 1650 kg | - | Manual |
PBR 33 | 3.67 t | 3670 kg | - | Manual |
| Type | SWL Rescue Boat (SWL) | SWL Life Raft (SWL) | Radius | Operation |
| Combined Rescue Boat/ Life Raft Davit | ||||
| SCH 23/17-4.0 R | 1.73 t | 2.35 t | 4.0 m | Hydraulic |
*Fully equipped and manned
Global Service Competence
Solutions you can rely onPALFINGER provides complete marine service solutions to keep your deck equipment and lifesaving appliances performing at their best. With our global network of over 300 specially trained engineers, we deliver inspections, maintenance, refurbishments, and upgrades – plus spare parts for PALFINGER and OEM equipment, efficient repairs, and expert training programs. Our team ensures reliability, safety, and performance to keep your fleet running smoothly.
Service excellence at a glance:
- Inspection and Maintenance
- Refurbishments and Upgrades
- Spare Parts and Repair
- Agreements
- Training
- Industrial Services | Rope Access
- Hook Replacement
