PRHE Series
- Delivered as a "plug-and-play" unit, ready for immediate use
- Hydraulic pivoting and electric hoisting
- Self-contained stainless steel HPU system, all critical components are fully submerged in hydraulic oil
- Stainless steel for all shafts, piping and bolts and nuts up to M12
- Remote-control push-button box, for hoisting and emergency stop
- Foldable davit arm for easy transportation
- Optional light weight version and boat fender kits available

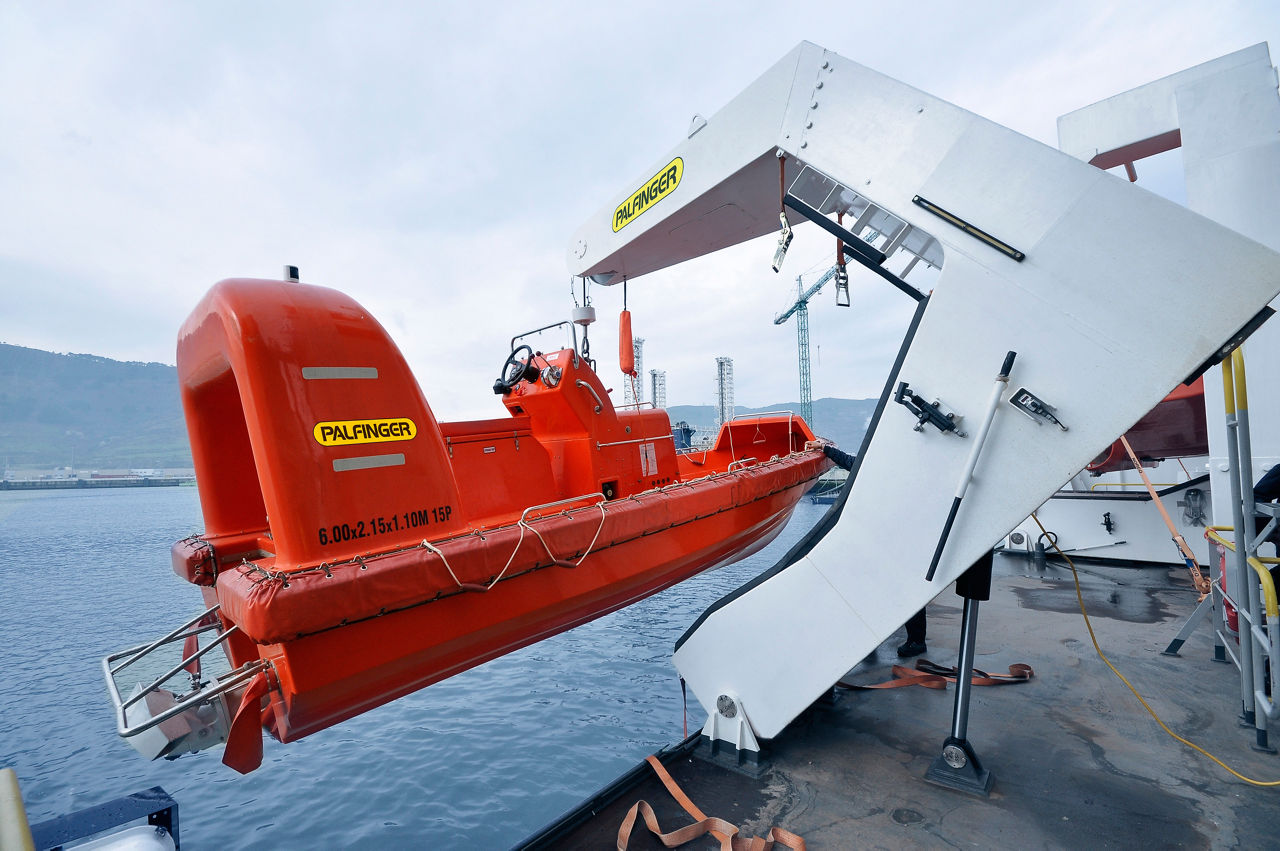

NPDS Series
- Innovative totally enclosed davit system: all components mounted inside the davit structure and protected from all weather conditions
- Fitted with several inspection/maintenance hatches for easy access to all equipment built inside
- Delivered as a "plug-and-play" unit, ready for immediate use
- Pad-eyes for lifting which makes it beneficial for mounting on board
- Standard configuration, or high speed (constant tensioning) configuration available
- Optional Ro-Ro certificate
Options
Options
PRHE/NPDS/NTDS Series:
- Constant tensioning system (if applicable)
- Shock absorber
- Boat supports
- Ex-proof (if applicable)
- Heating system
- Winterization package
Range
Range
| Type | Safe Working Load (SWL) | Max. Boat Weight | Hoisting | Operation |
| A-FRAME (FAST) RESCUE BOAT DAVITS | ||||
| PFHS 15 | 1.5 t | 1529 kg | 0-18 m/min (Electric) | Electric |
| PRHE 25-2 | 2.8 t | 2549 kg | 0-18 m/min (Electric) | Electric |
| PRHE 25 H 2 | 2.8 t | 2549 kg | 0-18 m/min (Hydraulic) | Hydraulic |
| PRHE 35-2 | 3.6 t | 3600 kg | 0-18 m/min (Electric) | Electric |
| PRH 35 H* | 3.8 t | 3823 kg | 0-48 m/min (Hydraulic) | Hydraulic |
| PRH 75 H | 7.6 t | 7647 kg | 0-18.48 m/min (Hydraulic) | Hydraulic |
| Type | Safe Working Load (SWL) | Hoisting | Operation | |
| SINGLE ARM TOTALLY ENCLOSED DAVITS | ||||
| NPDS 1800H | 1,8 t | 0-18 m/min | Hydraulic | |
| NPDS 1800 HFR | 1,8 t | 0-48 m/min | Hydraulic | |
| NPDS 3500H | 3,2 t | 0-18 m/min | Hydraulic | |
| NDPS 3500 | 3,2 t | 0-48 m/min | Hydraulic | |
* High speed, optional constant tensioning plus shock absorber
Max boat weight = Fully equipped and manned
Global Service Competence
Solutions you can rely onPALFINGER provides complete marine service solutions to keep your deck equipment and lifesaving appliances performing at their best. With our global network of over 300 specially trained engineers, we deliver inspections, maintenance, refurbishments, and upgrades – plus spare parts for PALFINGER and OEM equipment, efficient repairs, and expert training programs. Our team ensures reliability, safety, and performance to keep your fleet running smoothly.
Service excellence at a glance:
- Inspection and Maintenance
- Refurbishments and Upgrades
- Spare Parts and Repair
- Agreements
- Training
- Industrial Services | Rope Access
- Hook Replacement
