With the success of the PK 65002-SH Tree-Mek™ turn-key truck configuration, we envisioned a build with the same advantages as the PK 65002-SH but with additional reach and capacity, which led us to the design of the PK 92002-SH Tree-Mek™ configuration.
ARBORIST EDITION
WORK-READY TRUCK PACKAGE- 33' overall package length while traveling
- Designed to distribute weight over all axles evenly
- Relatively low finished package weight
- Annual permitting is not required
- Rock solid build stability—tested to 120% of crane capacity
- Full load chart stable—360 degrees
- Rear-mounted crane for maximum reach benefit
- Optimized for residential tree removals

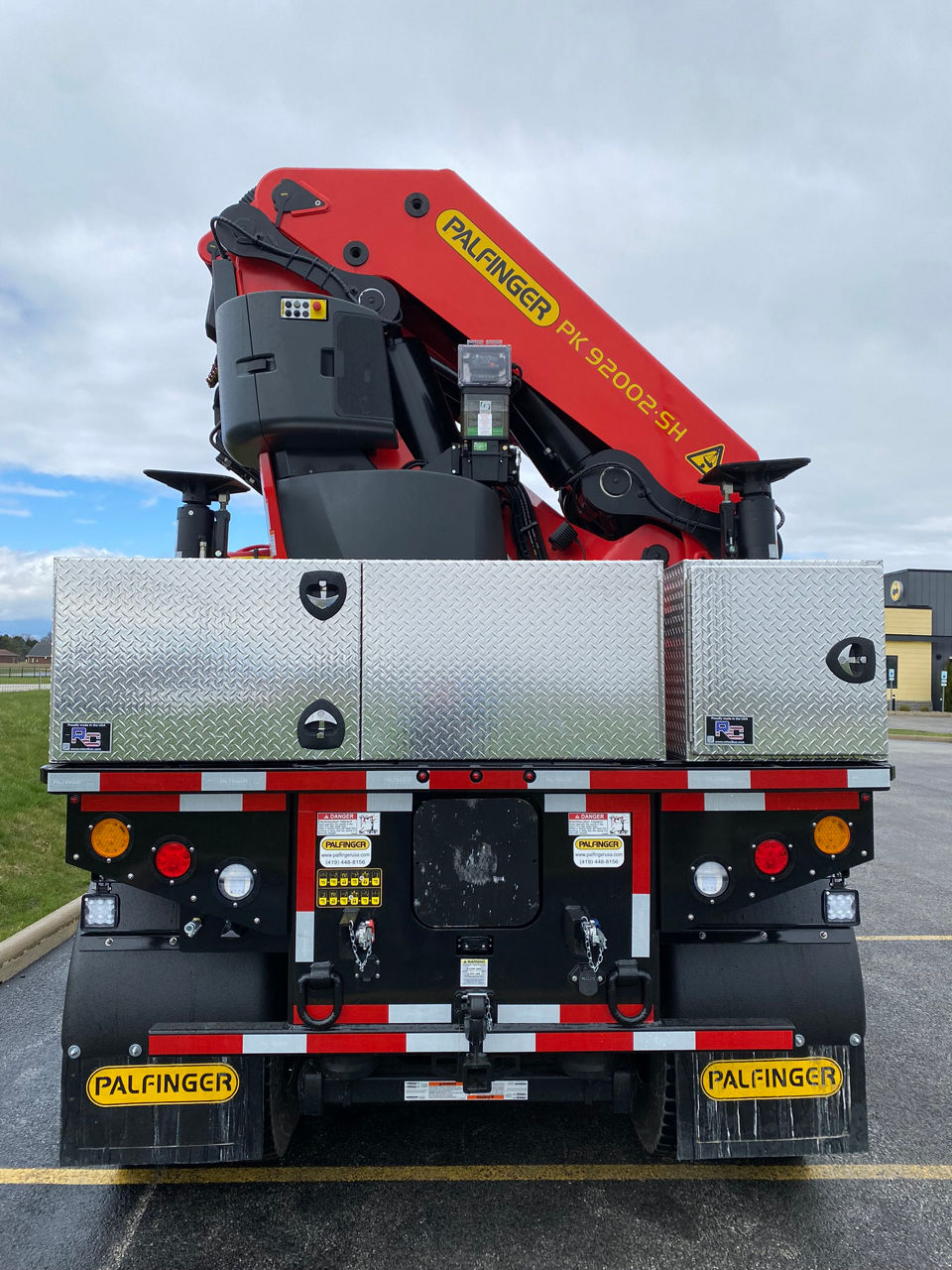

PALFINGER PK92002-SH-G PJ125-E
• Rear-mounted boom to allow for maximum available crane reach
• Main boom with 8 Extensions and fly jib with 6 extensions
• Capacity of 1,560 lbs. at hydraulic vertical outreach of 120'
• Capacity of 1,500 lbs. at hydraulic horizontal outreach of 108'
• Active Oscillation Suppression to eliminate boom bounce
• Fully protected 105-gallon hydraulic oil reservoir with integral heater
• Thermostatically controlled hydraulic oil cooler
• Hydraulic quick connect between the main boom and fly jib
• Eight-function Scanreco radio remote system
• 4200 Lumen boom lights on the main boom and fly jib
• Automatic tiltable jack legs on crane and rear auxiliary stabilizers
• Five composite stabilizer pads and pad holders
• 9-ton and 18-ton load hooks
• Manual boom section for connection of grapple saw
• Fully proportional load-sensing Danfoss control valve and hydraulic oil pump
• PAL150 electronic overload control system
• Capacity percentage readout at stabilizer controls and remote transmitter
• Installed on High tensile welded torsion box to eliminate frame twist
• 360-degree stability tested to 120% of crane capacity
• Hydraulic plumbing via formed steel lines wherever possible
PALFINGER 11' x 102" Platform
• Smooth steel low-profile deck coated with Line-X protective coating
• 40” oil reservoir and toolbox protector at the front of the deck
• Removable cribbing storage racks
• Mat rack installed at the rear of the truck
STANDARD FEATURES
- Mecanil SG280 Grapple Saw with storage bracket and spare parts kit
- Rear pintle plate with pintle, d-rings, Reese receiver, backup alarm

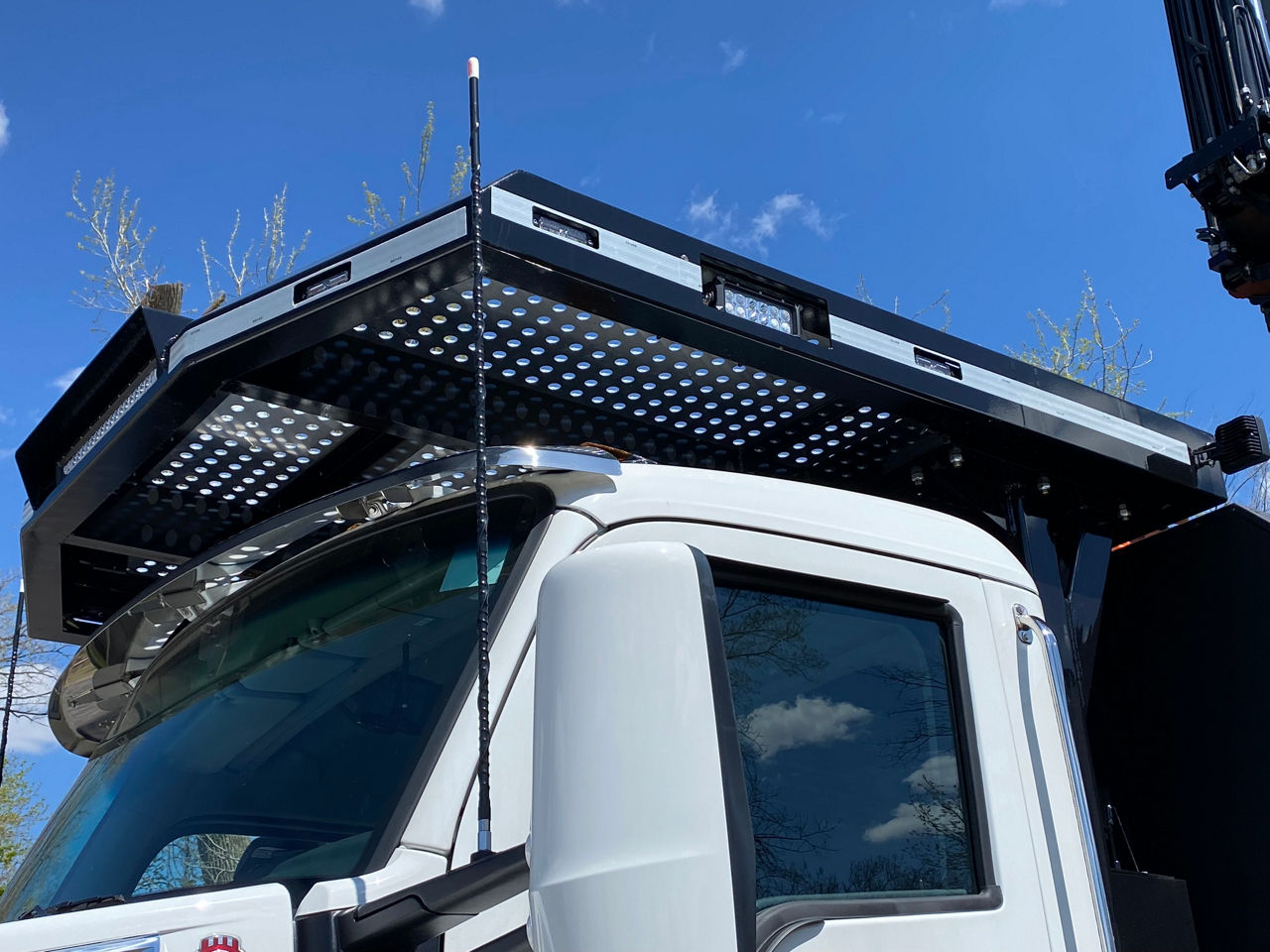

- Lighted cab protector with beacons and four light bars
- Six work lights located on the truck perimeter to light work area
- Backup camera and LCD screen in cab with audio coms
- Air connection to chassis air supply for blowing out saws
- Eight 28" traffic cones and cone storage bracket
- Igloo water cooler and water cooler bracket
- Spare parts kit for grapple saw and crane
- Spare crane transmitter and grapple transmitter
- 1000-watt power inverter to charge grapple batteries
- Sauber Galvanized wheel chocks and chock holders
- In-cab remote control storage bracket
- Winch binder bar

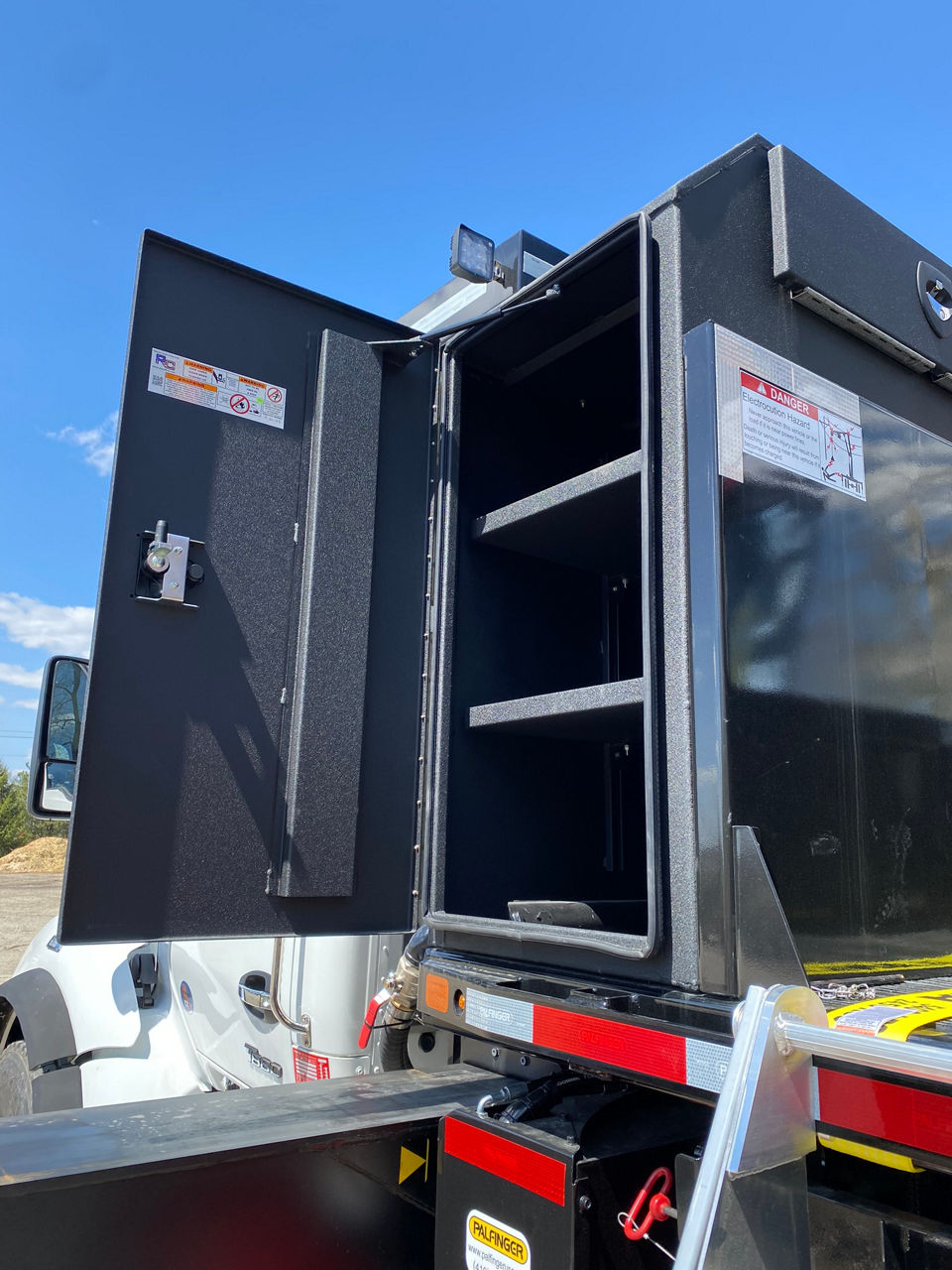

- Custom 24" x 52" x 96" pass-through toolbox with slide-out drawers
- Aluminum axle fenders sprayed with Line-X protective coating
- Nikon Forestry Pro laser rangefinder
- Complete chassis DOT inspection
- OSHA required first annual crane inspection
CHASSIS DETAILS

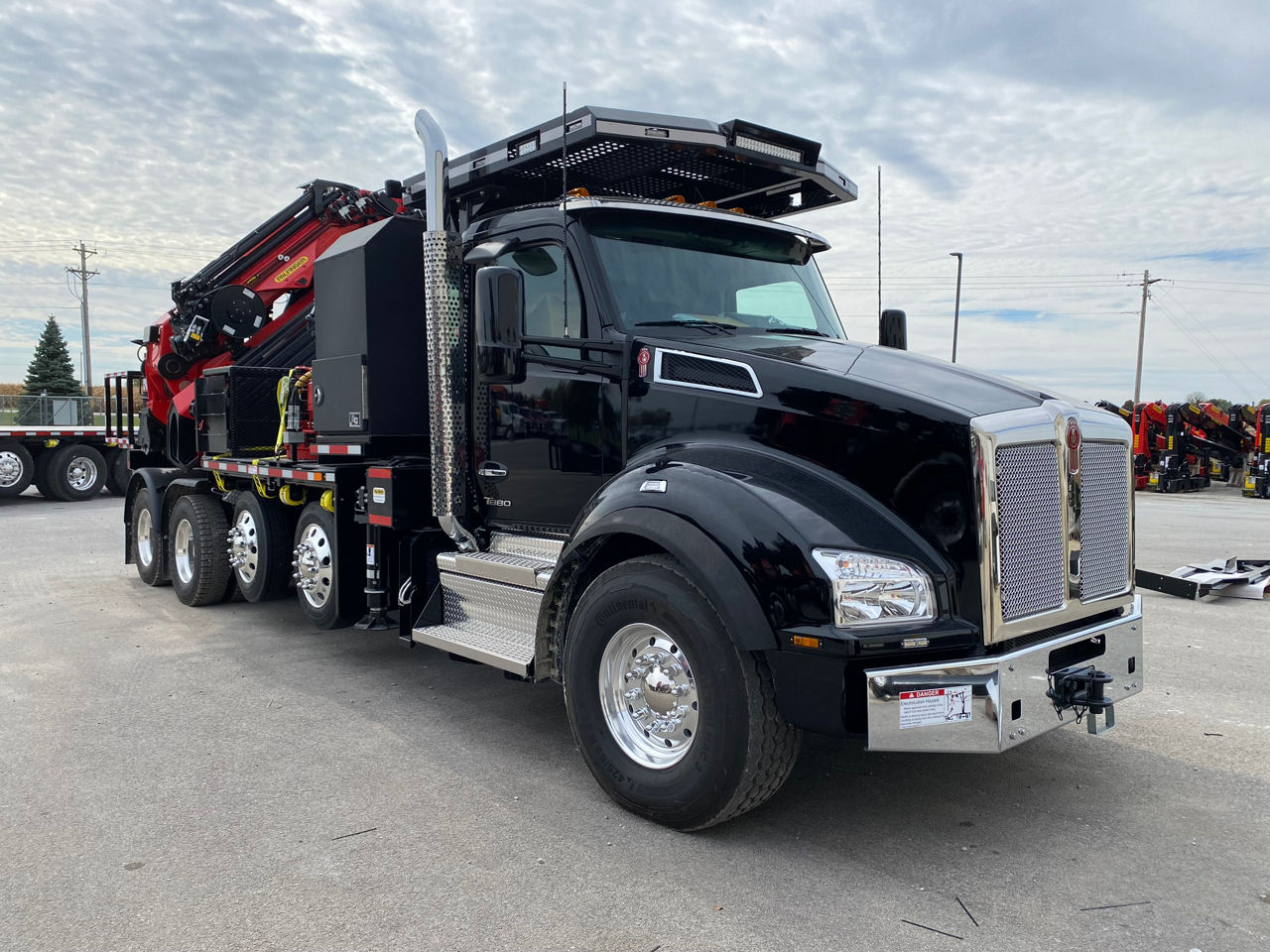

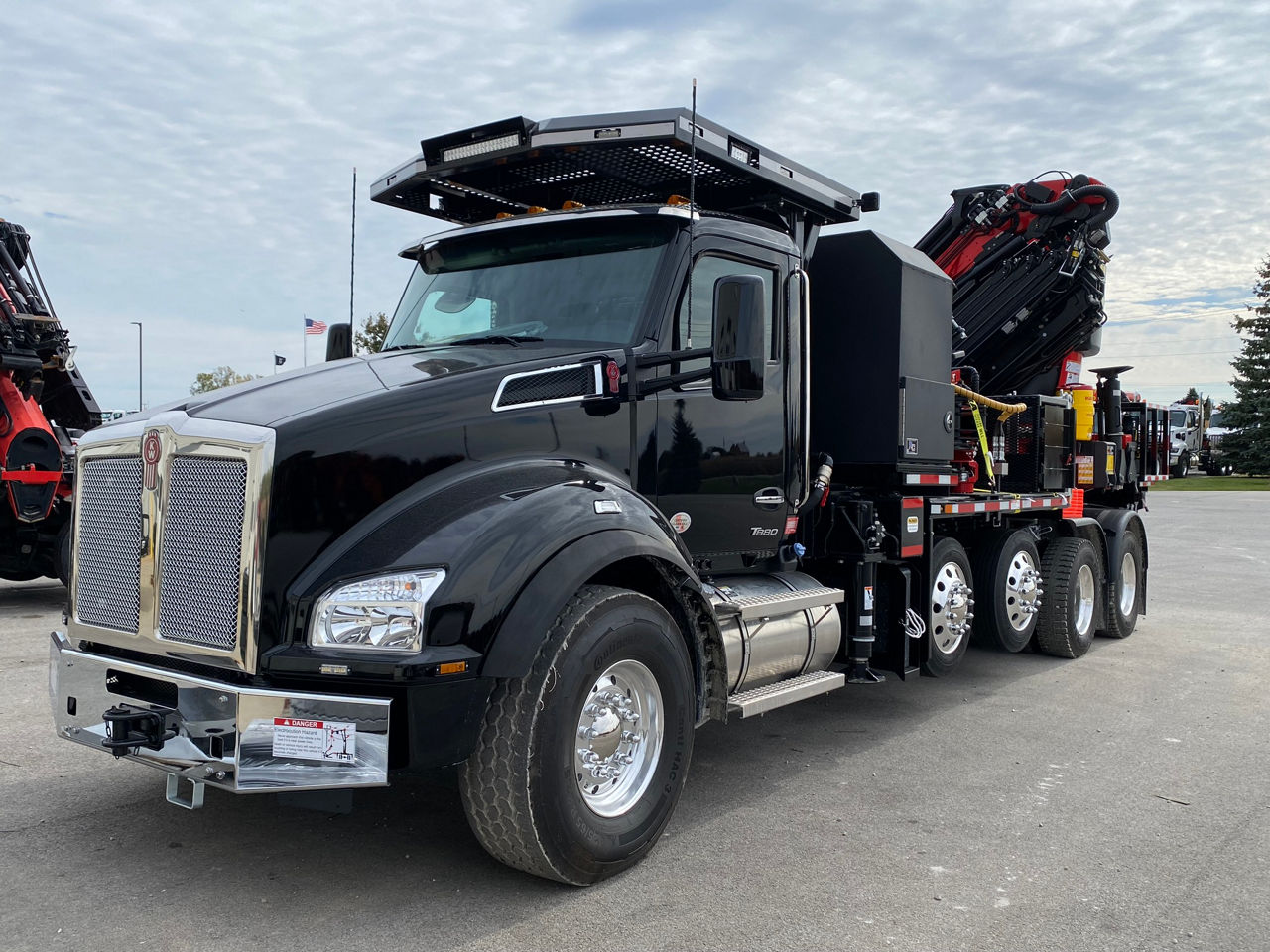

- Kenworth T880 five-axle 93,000 lb. GVW chassis
- Cummins ISX15 565 Horsepower Diesel Engine with 1,850 ft/lb. torque
- Jacobs-style engine brake
- Allison 4500 fully automatic transmission
- 20,000 lb. axle, suspension, steering gears, tires and brakes
- 46,000 lb. air-ride drive axles with full-locking differential
- (2) 13,500 lb. capacity self-steering air-lift axle(s)
- Alcoa Dura-Bright aluminum wheels
- Double frame rail to meet crane RBM requirement
- 90 Gallon fuel tank
- Chrome bumper, cab visor, exhaust
- Aluminum DPF cover and fuel tank/steps
MECANIL GRAPPLE SAW ATTACHMENTS
MECANIL SG 160 G2
- Weight 650 lbs. incl. rotator and links
- Wireless Radio Remote Control
- Hydraulically controlled grapple tilt
- Required pressure: 3,300 psi
- Required flow: 10 – 25 GPM
- Grapple opening: 37”
- Cutting bar length: 16”
- Grapple lift capacity: 3,300 lbs.
- All functions individually controllable
MECANIL SG 220 G2
- Weight 850 lbs. incl. rotator and links
- Wireless Radio Remote Control
- Hydraulically controlled grapple tilt
- Required pressure: 3,300 psi
- Required flow: 10 – 25 GPM
- Grapple opening: 47”
- Cutting bar length: 18”
- Grapple lift capacity: 4,300 lbs.
- All functions individually controllable
MECANIL SG 280 G2
- Weight 950 lbs. incl. rotator and links
- Wireless Radio Remote Control
- Hydraulically controlled grapple tilt
- Required pressure: 3,300 psi
- Required flow: 10 – 25 GPM
- Grapple opening: 58"
- Cutting bar length: 25”
- Grapple lift capacity: 6,500 lbs.
- All functions individually controllable
