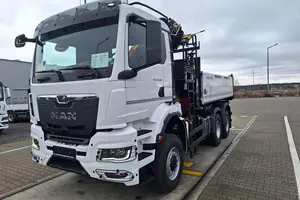

PK 24.001 SLD 5

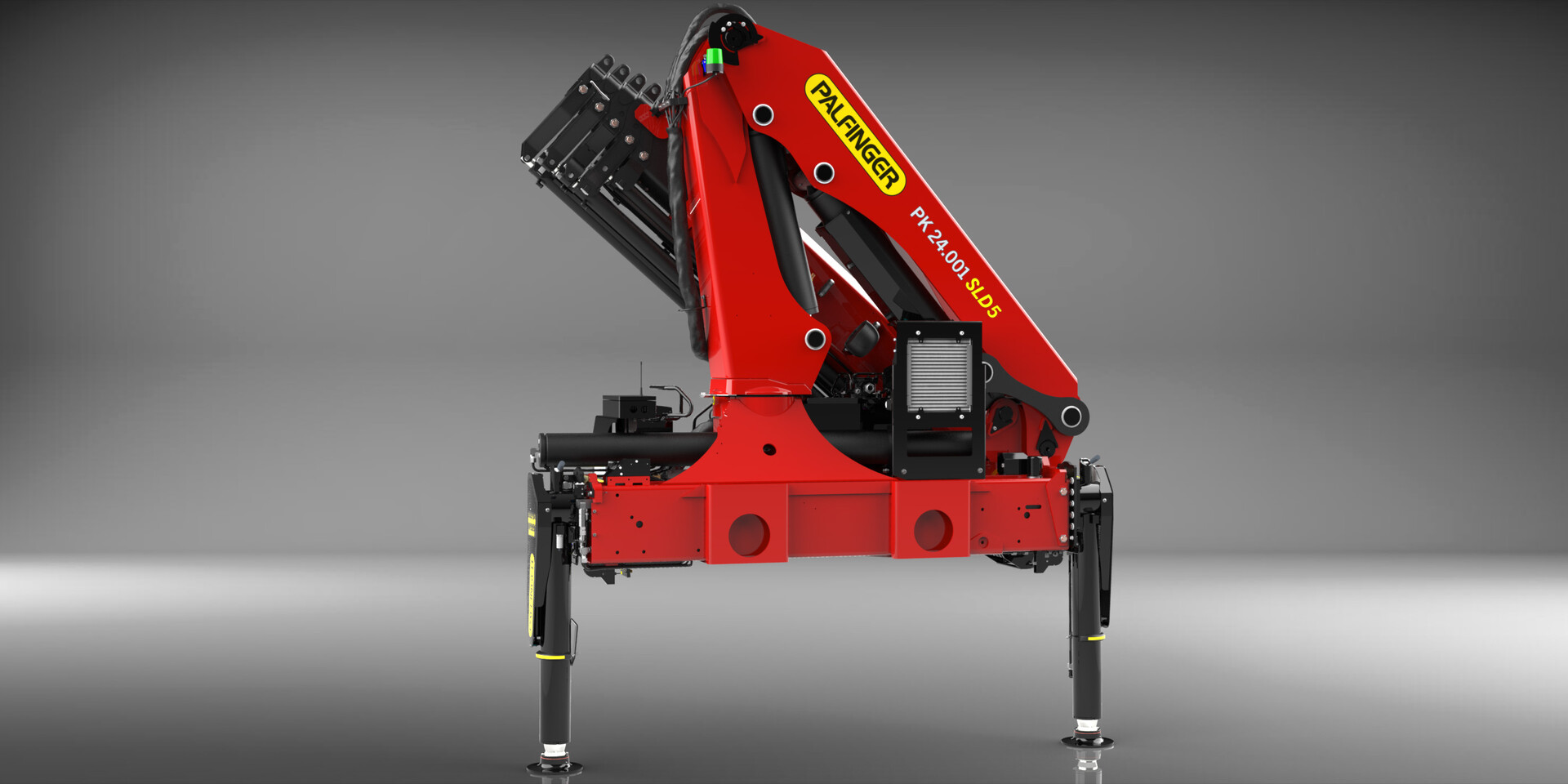

Loader Crane

Maximum reliability due to PALTRONIC
More lifting power due to A-HPLS
Additional applications with Single Link Plus
Shorter load cycle times due to High Speed extension

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

HPSC-Plus LOAD

PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.

Details

Paltronic

With the PALTRONIC, PALFINGER offers the latest control electronics for the series production crane. Different systems are available depending on the series and the range of functions. The most important safety and comfort functions include such as overload protection and different variations of the stability control system HPSC and High Power Lifting System HPLS.

Details

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

Technical data
Lifting capacities

Max. lifting moment	23.1 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	14.9 m
Max. manual outreach	19.1 m
Slewing angle	400°
Slewing torque	2.3 mt
Stabilizer spread (std)	5.0 m
Fitting space required (std)	0.91 m
Width folded	2.54 m
Max. operating pressure	360 bar
Pump capacity	65 - 90 l/min
Dead weight (std)	2260 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

	Lifting moment (mt)	Outreach (m)	Slewing angle (°)	Slewing torque (mt)	Pressure (MPa)	Pump capacity (l/min)	Crane Weight (kg)	Crane Height (mm)	Crane Width (mm)	Installation Width (mm)
A	22.7	8.2	400	2.3	36.0	65-90	2250	2310	2550	905
B	22.2	10.4	400	2.3	36.0	65-90	2410	2310	2550	905
C	21.8	12.6	400	2.3	36.0	65-90	2540	2310	2550	975
D	21.5	14.9	400	2.3	36.0	65-90	2640	2310	2550	975

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
