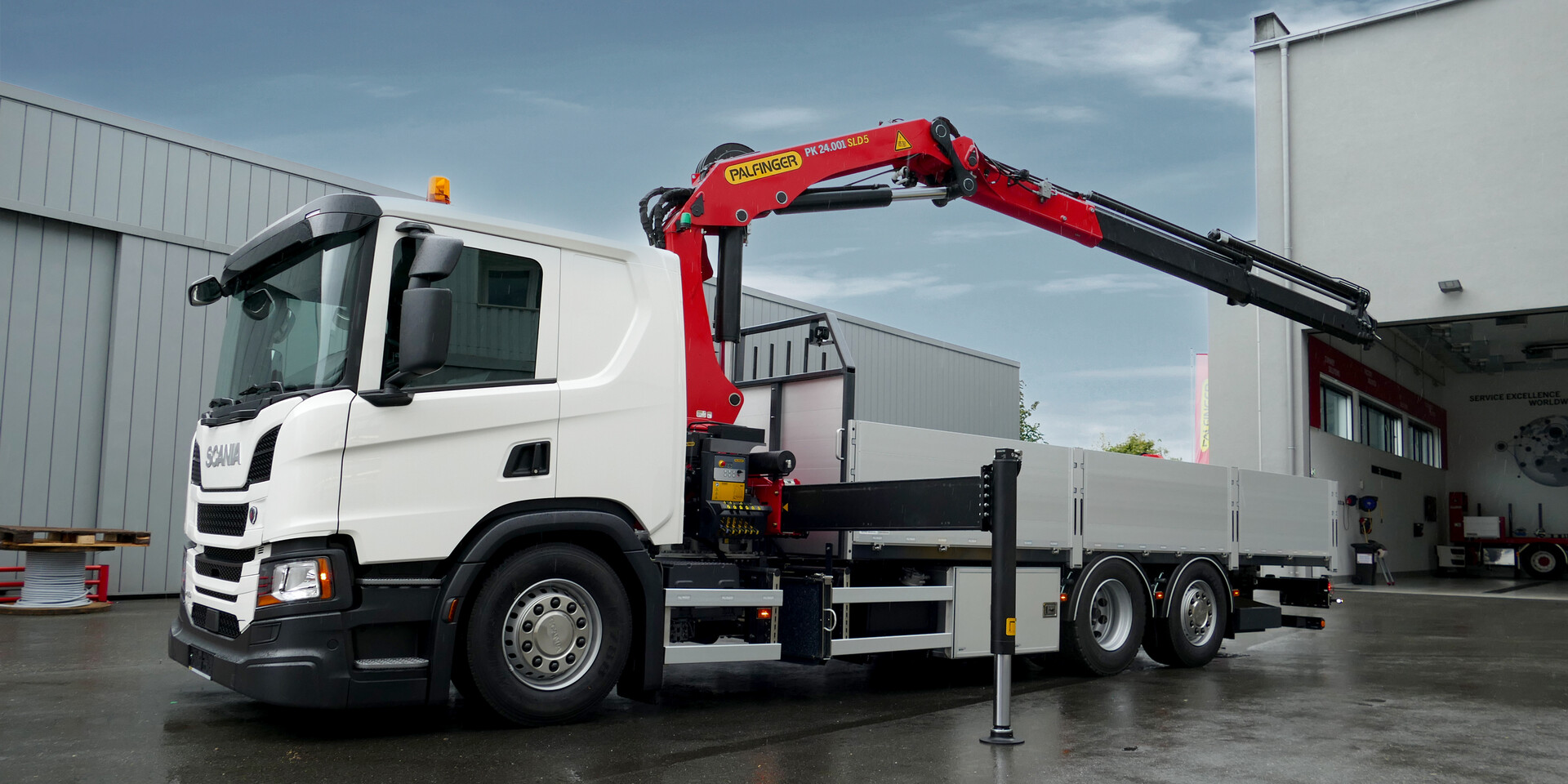

Knuckle Boom

PK 24.001 SLD 5

Knuckle Boom Crane

Imperial Metric

Max Lifting Moment 167,000 ft lbs

Max Lifting Capacity 13,700 lb

Max Hydraulic Outreach 48' 11''

Technical Data

Maximum reliability due to PALTRONIC
More lifting power due to A-HPLS
Additional applications with Single Link Plus
Shorter load cycle times due to High Speed extension

Downloads

High Power Lifting System

The PALFINGER High Power Lifting System (E-HPLS, A-HPLS or S-HPLS) increases the capacity of the crane by up to 15% while reducing working speed. E-HPLS can be activated manually for the occasional manipulation of very heavy loads. A-HPLS as well as S-HPLS are activated fully automatically. There is continuous activation depending on the power required.

Details

HPSC-Plus LOAD

PALFINGER has further developed the proved stability system HPSC and offers application oriented additional functions in a modular system. One of the modules of this HPSC-Plus concept is HPSC-Plus LOAD. It reacts to the loading condition of the truck and calculates on the basis of the inclination the maximum load limit suitable for the respective situation.

Details

Paltronic

With the PALTRONIC, PALFINGER offers the latest control electronics for the series production crane. Different systems are available depending on the series and the range of functions. The most important safety and comfort functions include such as overload protection and different variations of the stability control system HPSC and High Power Lifting System HPLS.

Details

Single Link Plus

The knuckle joint on the crane's knuckle boom improves lifting power significantly in typical working positions. Developed by PALFINGER, this knuckle boom can be angled upwards providing excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.

Max. lifting moment	167000.0 ft lbs
Max. lifting capacity	13,700 lb
Max. hydraulic outreach	48' 11''
Max. manual outreach	62' 4"
Slewing angle	400°
Slewing torque	16960.0 ft lbs
Stabilizer spread (std)	16' 5''
Fitting space required (std)	2' 12''
Width folded	8' 4"
Max. operating pressure	5220 psi
Pump capacity	17.2 - 23.8 gpm
Dead weight (std)	4960 lbs

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Max. lifting moment	23.1 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	14.9 m
Max. manual outreach	19.1 m
Slewing angle	400°
Slewing torque	2.3 mt
Stabilizer spread (std)	5.0 m
Fitting space required (std)	0.91 m
Width folded	2.54 m
Max. operating pressure	360 bar
Pump capacity	65 - 90 l/min
Dead weight (std)	2260 kg

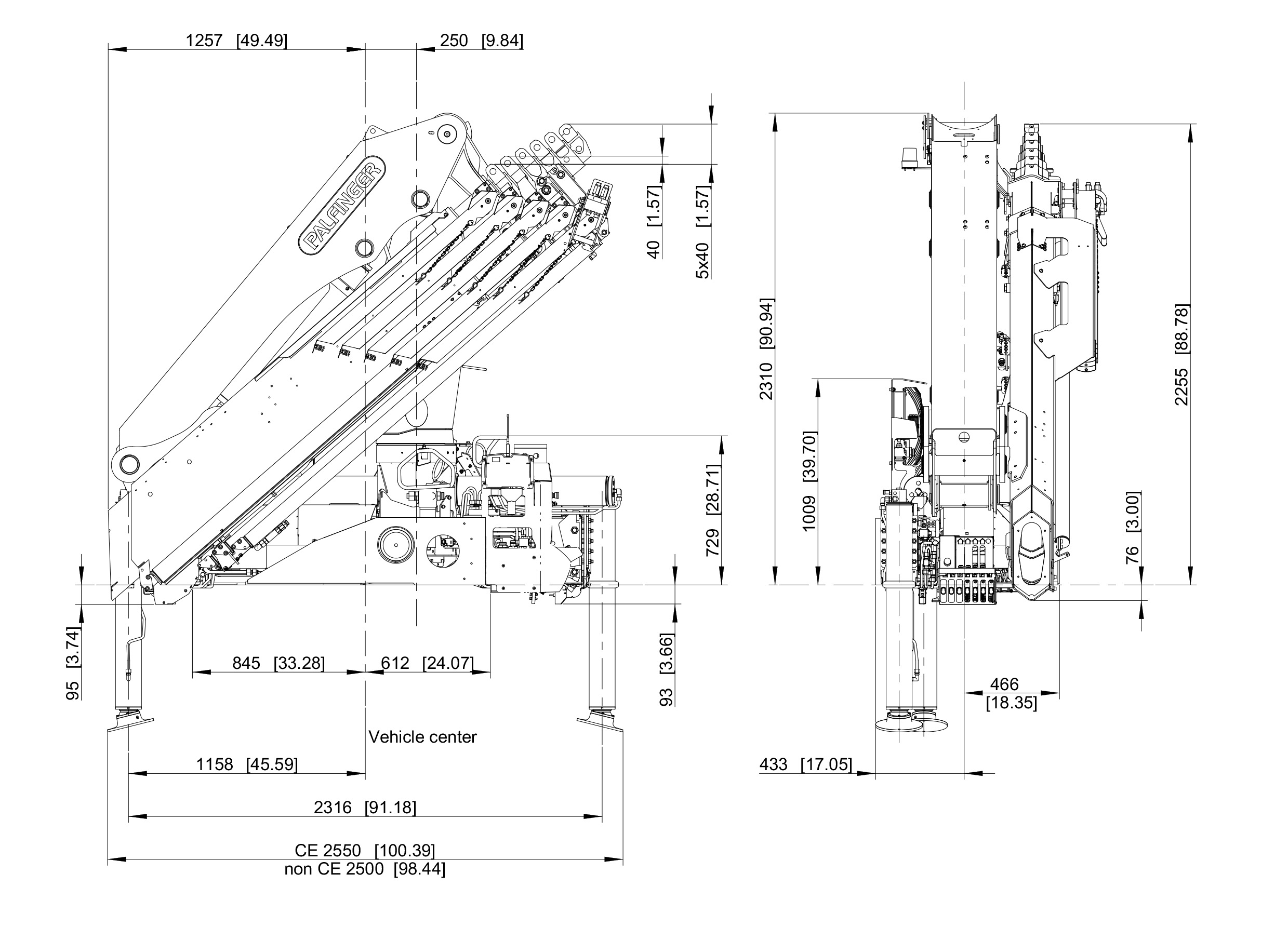

	Lifting moment (ft_lbs)	Outreach	Slewing angle (°)	Slewing torque (ft_lbs)	Pressure (psi)	Pump capacity (gpm)	Crane Weight (lbs)	Crane Height (inch)	Crane Width (inch)	Installation Width (inch)
A	164234.5	26'11"	400	16960.0	5220.0	17.2 - 23.8	4960.4	90.9	100.4	35.6
B	160617.0	34'1"	400	16960.0	5220.0	17.2-23.8	5313.1	90.9	100.4	35.6
C	157723.0	41'4"	400	16960.0	5220.0	17.2-23.8	5599.7	90.9	100.4	38.4
D	155552.5	48'11"	400	16960.0	5220.0	17.2-23.8	5820.2	90.9	100.4	38.4

	Lifting moment (mt)	Outreach (m)	Slewing angle (°)	Slewing torque (mt)	Pressure (MPa)	Pump capacity (l/min)	Crane Weight (kg)	Crane Height (mm)	Crane Width (mm)	Installation Width (mm)
A	22.7	8.2	400	2.3	36.0	65-90	2250	2310	2550	905
B	22.2	10.4	400	2.3	36.0	65-90	2410	2310	2550	905
C	21.8	12.6	400	2.3	36.0	65-90	2540	2310	2550	975
D	21.5	14.9	400	2.3	36.0	65-90	2640	2310	2550	975

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
