MBB R 1500 L

  1. Go back
  2. Home
  3. MBB R 1500 L

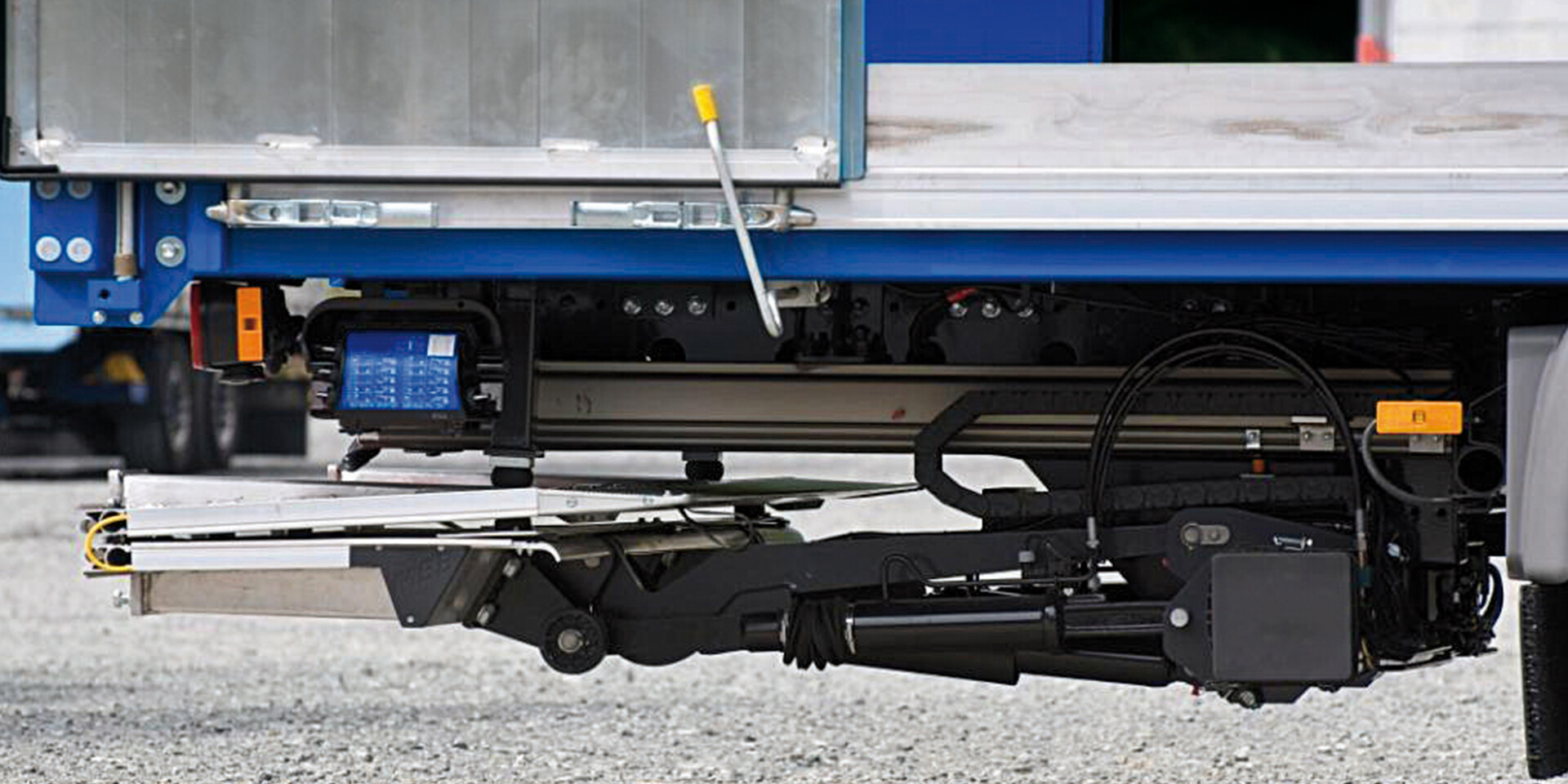

Tail Lift
  • 1,500 kg lifting capacity with four cylinders and 600 mm load distance
  • Simple-fold platform
  • Modular, boltable design for adaptation to a wide range of vehicle types
  • All-aluminium or steel/aluminium platform design
  • Spring-supported folding part
  • Platform housing serves as underride guard
  • Bridging projection for espagnolettes
  • Powerful moving cylinder for horizontal positioning of the tail lift
  • Optimal adaptation to motor vehicles and trailers thanks to a wide range of different lifting arm lengths and pitches
  • Moving rails in steel as standard, optionally available in aluminium
  • Optionally available completely pre-assembled with energy chain
Downloads Technical Data
Lifting capacity 1500 kg
Main beam 180 x 180 mm
Lifting gear hydraulics 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length 760 / 1310 / 1490 mm
Load centre - lengthwise 600 mm
Load centre - across center Central 50% of rated load on one side
Inclination angle of the platform 10° to -10
Platform type Platform width platform height Dead Weight Dead Weight
alualu 2400 1805 598 -
steelalu 2400 1800 688 -



The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

a (mm) Q (kg)
600 1500
720 1250
900 1000
1200 750

Lift arms (in mm) 700 800 900

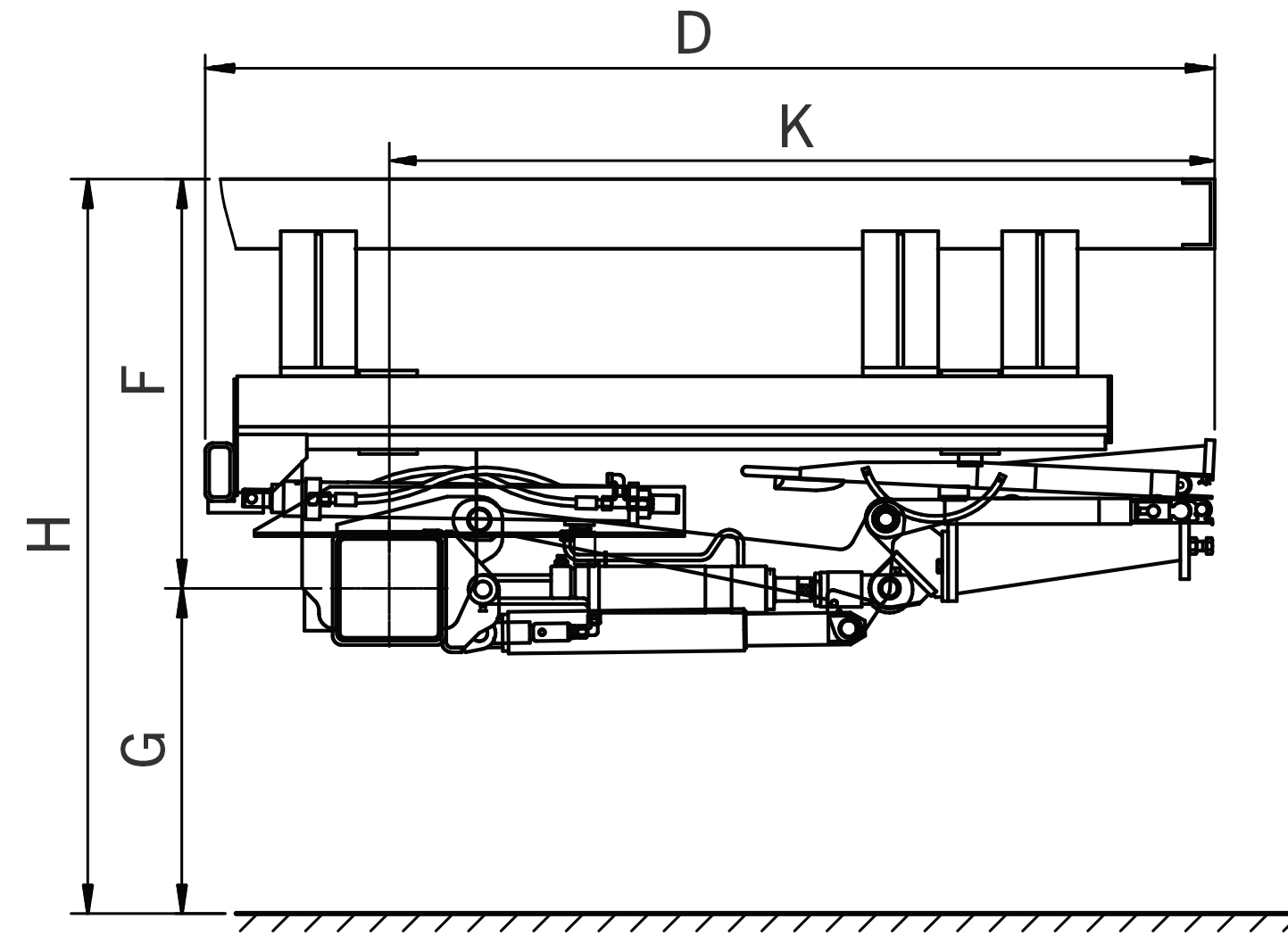

H (max.) Loading height unloaded 1256 1409 1546
H (min.) Loading height loaded 906 922 998
F (max.) Middle of main beam to upper edge of loading floor 728 811 894
K (min.) at dimension F (max.) 515 571 627
D (min.) Installation space (min.) 1800 1800 1900
F (min.) 529 572 625
K (max.) at dimension F (min.) 710 801 886
G (max.) Unloaded (middle of main beam to ground) 528 598 652
G (min.) loaded 377 350 373
E (max.) Vehicle frame width (max.) 920 920 920
E (min.) Vehicle frame width (min.) 645 645 645
