Construction & Building Materials Handling

PALFINGER offers one-stop solutions to Construction and Building Materials Handling segment customers via our truck-mounted knuckle boom cranes with the possibility to use several localized attachments for your working needs. Common attachments used by our customers include manipulators, fly-jibs, rope winches, and simple hook attachments with sling. For more complex applications, the Multi-Functional Adaptor (MFA) is available.

Modern construction sites come with high demands. No matter if you work in structural or civil engineering, masonry or road construction – our cranes, hook- and skiploaders, truck mounted forklifts and tail lifts offer high-quality solutions for your work requirements.

Thanks to our thought-out product portfolio, tasks such as building material handling, roofing, scaffolding and glass works are simplified and accelerated. By investing into a PALFINGER product, you invest into better utilization, improved time management, fast load cycles and maximum safety.

HOW CAN WE HELP YOU?





EQUIPMENT IN ACTION

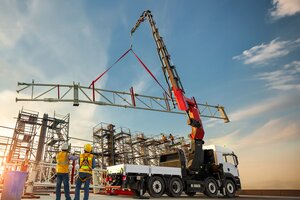

Precise positioning of construction materials

  • Suitable for specfic positioning of construction materials such as structural beams and poles

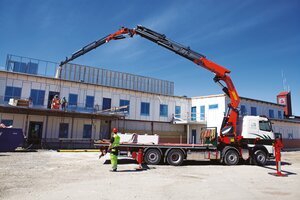

  • Unloading of building materials onto a higher floor or deep into a building
Play
Current Time 0:00
/
Duration Time 0:00
Remaining Time -0:00
Stream Type LIVE
Loaded: 0%
Progress: 0%
00:00
Fullscreen
00:00
Mute
Playback Rate
1

    unloading of delicate materials - solar panels

    • High stability to prevent damage to load
    • Precision handling over obstacles
    Play
    Current Time 0:00
    /
    Duration Time 0:00
    Remaining Time -0:00
    Stream Type LIVE
    Loaded: 0%
    Progress: 0%
    00:00
    Fullscreen
    00:00
    Mute
    Playback Rate
    1

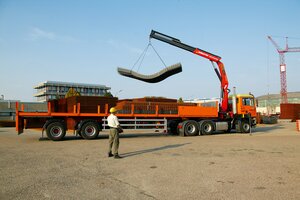

      Precast of various shapes

      • With the help of various attachments, highly versatile to lift any load for transportation
      • High stability to prevent damage to load during loading and unloading
      • Precision handling over obstacles
      Play
      Current Time 0:00
      /
      Duration Time 0:00
      Remaining Time -0:00
      Stream Type LIVE
      Loaded: 0%
      Progress: 0%
      00:00
      Fullscreen
      00:00
      Mute
      Playback Rate
      1

        Features & Options

        HPSC (Stability Control System)

        The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional travel measurement in the outriggers allow completely variable outrigger positioning. In this way, the permissible, safe working range can be calculated for any support situation.

        Paltronic 50/150

        With the PALTRONIC 50 and PALTRONIC 150, PALFINGER offers the latest control electronics for the series production crane. The most important safety and comfort functions include:

        • Overload cut-off
        • Stability control (HPSC)
        • High Power Lifting System (HPLS)
        • Active Oscillation Suppression system (AOS)
        • Dual Power System plus (DPS plus) in the fly jib insert

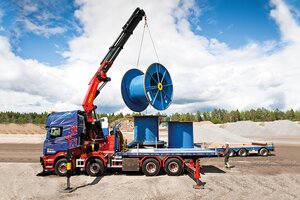

        Cable Winch System

        Complete series of winches available from 1.5T to 4.5T

        Rope lengths up to 90 meters make it possible to work with fly jibs

        High torque enables starting up winch under full load

        Reduced oil heating for longer work cycles

        Fly-Jib System

        A fly-jib system extends the working range of the crane and thereby increases the possible areas of application. The same crane can be used with or without the fly jib and can therefore be adapted for different applications. Applications with additional attachments (grabber, rotator) and/or cable winch are possible.

            Leveling Assistant

        Leveling assistant simplifies the stabilizing process overall by optimally leveling the vehicle. The process itself takes place through pulsating movements of the stabilizer cylinders. With just one lever movement on the remote control, optimal leveling is achieved by pulsating movements of the stabilizers.



            AOS oscillation suppression

        (EH/SH/TEC)

        The patented PALFINGER "AOS" oscillation suppression system cancels out vibrations and blows that occur during crane operation. Any "post-oscillation" is prevented through rapid braking or load changes. The result is a decisive increase to safety in crane operation for employees, the load and building.





            Rope tension control

        Any crane movements (e.g. folding and unfolding) that affect the rope length are automatically adjusted for the rope length to match and remain in tension.

        Operator friendly and prevents rope damage



            sYNCHRONISED ROPE CONTROL

        Automatically maintains a constant distance between the pulley head and the hook block, increasing operator efficiency.

        Load attached to the winch can be traversed at a specific angle or height, improving loading cycle time.
