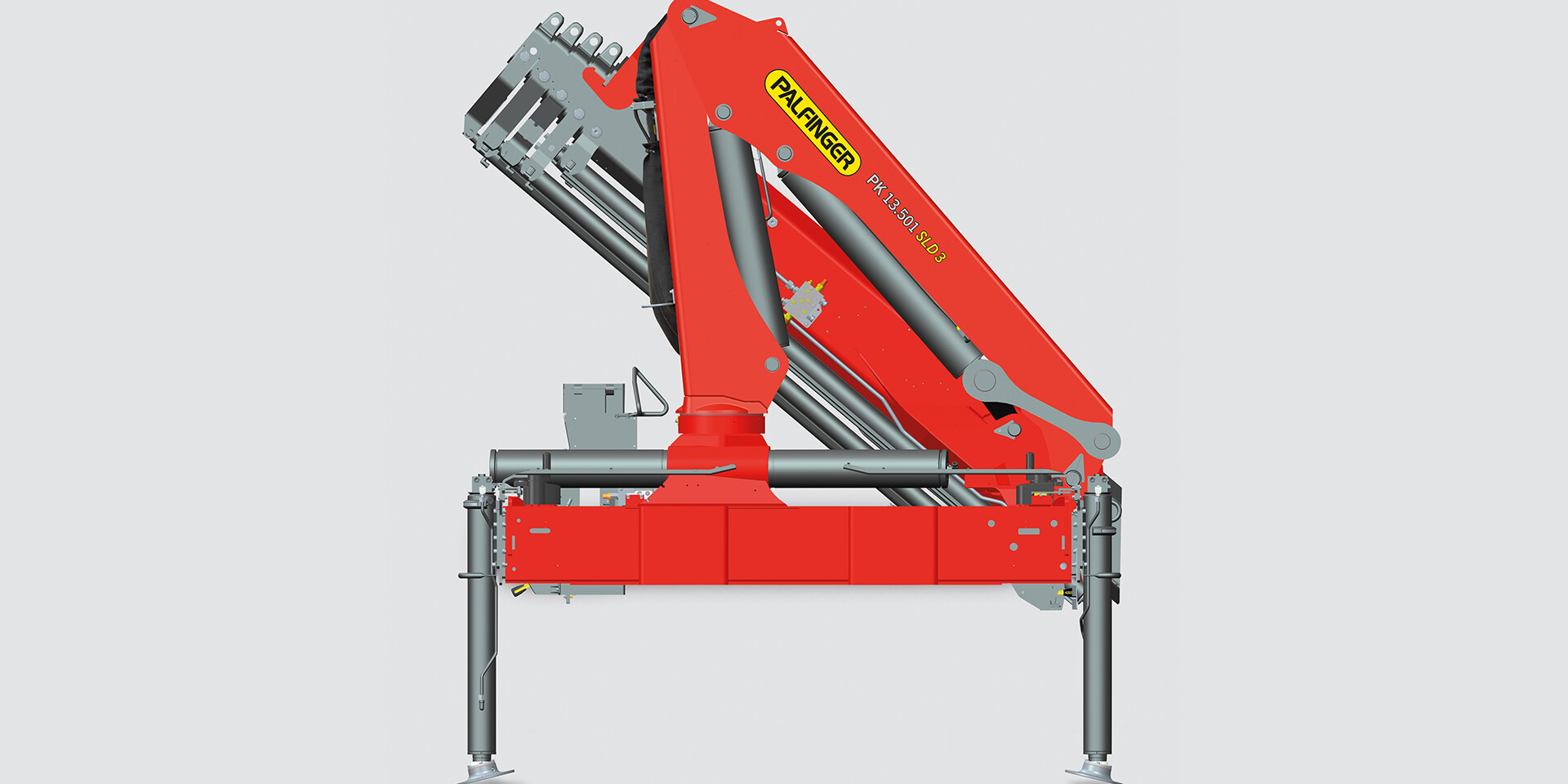

PK 13.501 SLD 3
Loader Crane
WELL-ENGINEERED HYDRAULIC- AND ELECTRONIC SYSTEMS
- More power in the hook due to Single Link Plus
- Maximum utilisation of the working range due to HPSC
- Shorter load cycle times due to High Speed Extention
- Maximum reliability due to Paltronic
Max. lifting moment | 13.1 mt |
Max. lifting capacity | 6200 kg |
Max. hydraulic outreach | 14.8 m |
Max. manual outreach | 19.0 m |
Slewing angle | 420° |
Slewing torque | 1.6 mt |
Stabilizer spread (std) | 5.0 m |
Fitting space required (std) | 0.74 m |
Width folded | 2.50 m |
Max. operating pressure | 330 bar |
Pump capacity | 35 - 50 l/min |
Dead weight (std) | 1510 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) | Outreach (m) | Slewing angle (°) | Slewing torque (mt) | Pressure (MPa) | Pump capacity (l/min) | Crane Weight (kg) | Crane Height (mm) | Crane Width (mm) | Installation Width (mm) | |
---|---|---|---|---|---|---|---|---|---|---|
13.1 | 6.1 | 420 | 1.6 | 33.0 | 35-50 | 1510 | 2215 | 2550 | 740 | |
12.7 | 8.2 | 420 | 1.6 | 33.0 | 35-50 | 1660 | 2215 | 2550 | 740 | |
12.3 | 10.4 | 420 | 1.6 | 33.0 | 35-50 | 1780 | 2215 | 2550 | 740 | |
12.0 | 12.6 | 420 | 1.6 | 33.0 | 35-50 | 1880 | 2215 | 2550 | 740 | |
11.7 | 14.8 | 420 | 1.6 | 33.0 | 35-50 | 1980 | 2215 | 2550 | 800 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
