Retractable
MBB R 2000 LH
Tail Lift
Platform standard
- AluLite 30/40/40S - platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Abrollsicherung
Innenseite
- Increased anti-slip resistance R13 (for Aluminium platforms)
- Plastic coating for platforms (incl. coated roll-stops) per m²
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- R-models with central push-pull cylinder drive (CCD)
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
| Lifting capacity | 2000 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder |
| Lift arm pitch /Lift arm length | 1300 mm |
| Load centre - lengthwise | 750 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | 0° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alualu | 2300 | 1805 | 775 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

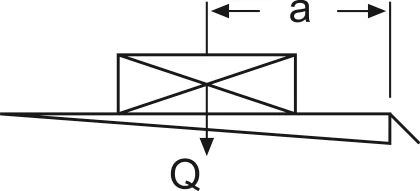

| a (mm) | Q (kg) |
| 750 | 2000 |
| 900 | 1650 |
| 1100 | 1300 |
| 1600 | 950 |

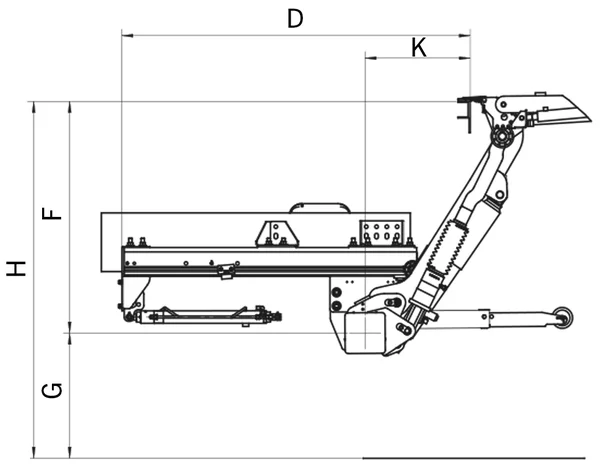

| Lift arms (in mm) | 1040 |
| H (max.) Loading height unloaded | 1711 |
| H (min.) Loading height loaded | 1054 |
| F (max.) Middle of main beam to upper edge of loading floor | 1110 |
| K (min.) at dimension F (max.) | 510 |
| D (min.) Installation space (min.) | 1544 |
| F (min.) | 714 |
| K (max.) at dimension F (min.) | 949 |
| G (max.) Unloaded (middle of main beam to ground) | 600 |
| G (min.) loaded | 290 |
| E (max.) Vehicle frame width (max.) | 870 |
| E (min.) Vehicle frame width (min.) | 758 |
