All-Terrain "Black Edition"
ALL-TERRAIN "BLACK EDITION"
Premium Partnership

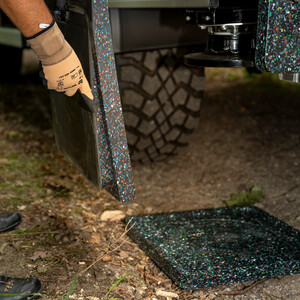

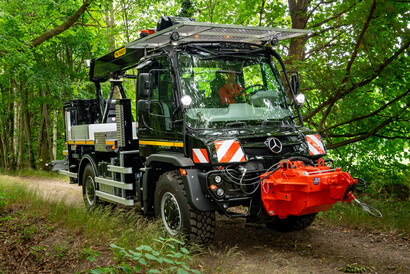

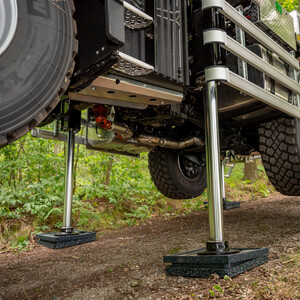

PALFINGER and Unimog - this is where the off-road capability of a Unimog meets the outstanding performance of a PALFINGER aerial work platform. Thanks to the enormous support stroke of 1,300 mm, a lateral reach of 16.7 meters and a height of 25.3 meters, even the most difficult tasks can be mastered.

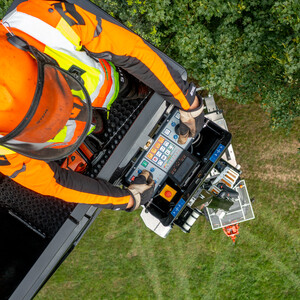

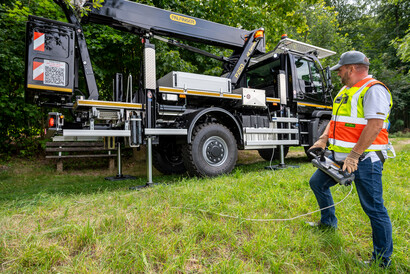

Remote control with 12 meter cable
Your safety plays an essential role during the operation. For this reason, the All Terrain "Black Edition" has been equipped with a remote control that allows the machine to be operated from a distance of up to 12 meters. This can be particularly helpful when, for example, the controls on the vehicle are difficult to reach due to the terrain.

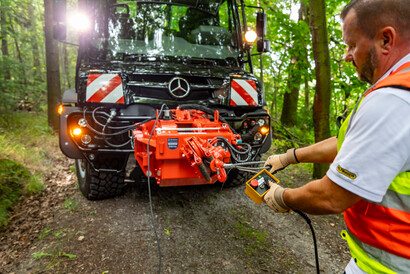

Powerful and versatile winch
In order to be able to carry out any "recovery" tasks in steep and rough terrain, the Unimog is equipped with a particularly powerful winch. A choice can be made between a special forestry winch or a smaller standard winch - depending on the requirements of the work to be carried out in the forest.

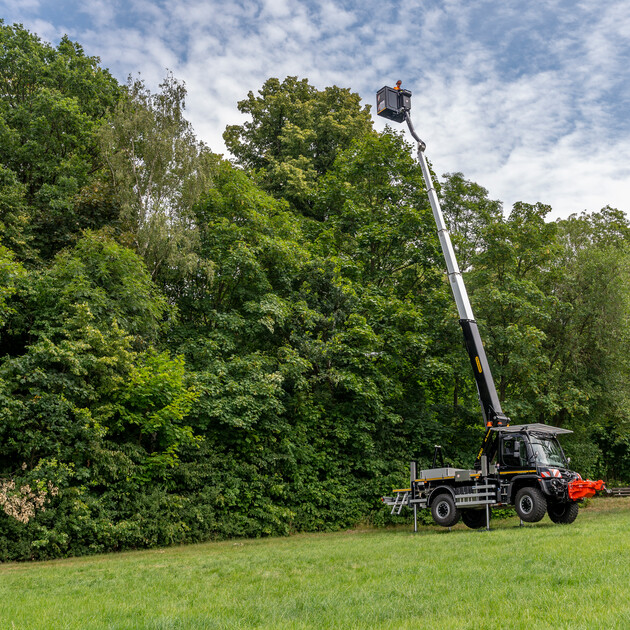

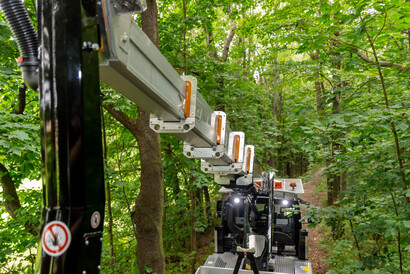

Tree cutting features

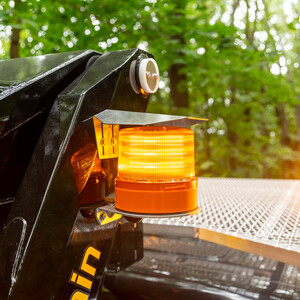

To make the task of tree cuting easier and safer for the operator, a number of special "features" and elements have been installed. For example, the telescopic arm is equipped with special slats, which prevents small branches or leaves from entering the telescopic system. In addition, important elements such as the lights, the roof of the Unimog or the basket frame are equipped with protective measures.

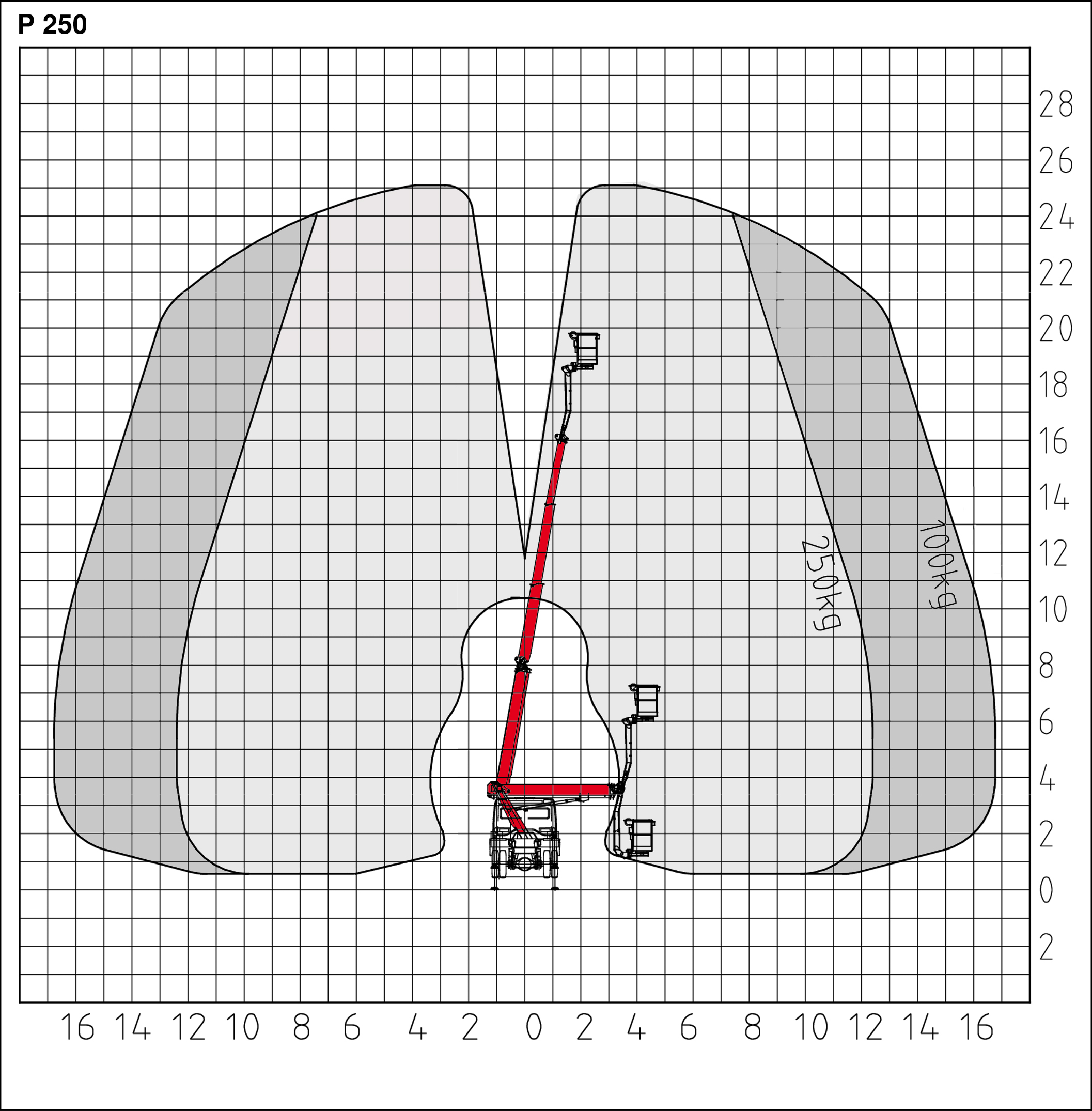

| Max. height of work | 25.3 m |
| Max. basket floor height | 23.3 m |

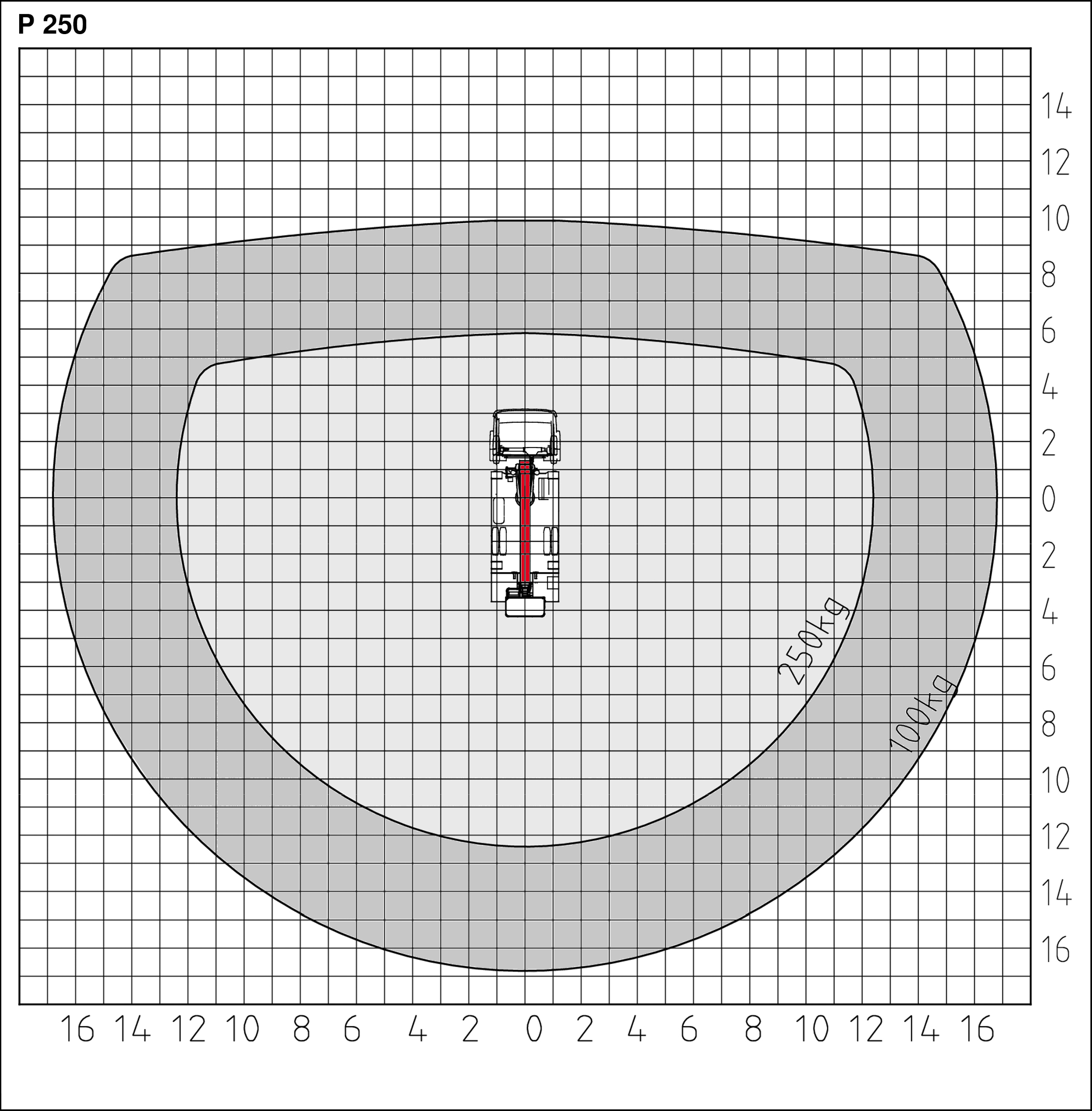

| Max. horizontal outreach /with basket load | 16,90 m |
| Slewing range of basket | 2x 90° |
| Operating angle of working arm | 185° |
| max. basket load | 250 kg |
| Workman basket - breadth / length / height | 1,4 x 0,7 x 1,1 m |
| Rotation angle of turntable | 500° |
| Height in transport position | 3.65 m |
| Width in transport position | 2.40 m |
| Overall length | 7.95 m |
* depending on the installation inclination
** The above values are standard values and vary depending on the equipment and carrier vehicle
Some of the aerial work platforms shown are fitted with optional equipment and do not always correspond to the standard version. Country-specific regulations must be observed when setting up. Dimensions are not binding. Subject to technical changes, errors and translation errors.
A possible 2% tolerance is contingent on structural components depending on chassis and equipment
Available standard chassis:
