Knuckle Boom
PK 8.501 SLD 1
PK 8.501 SLD 1

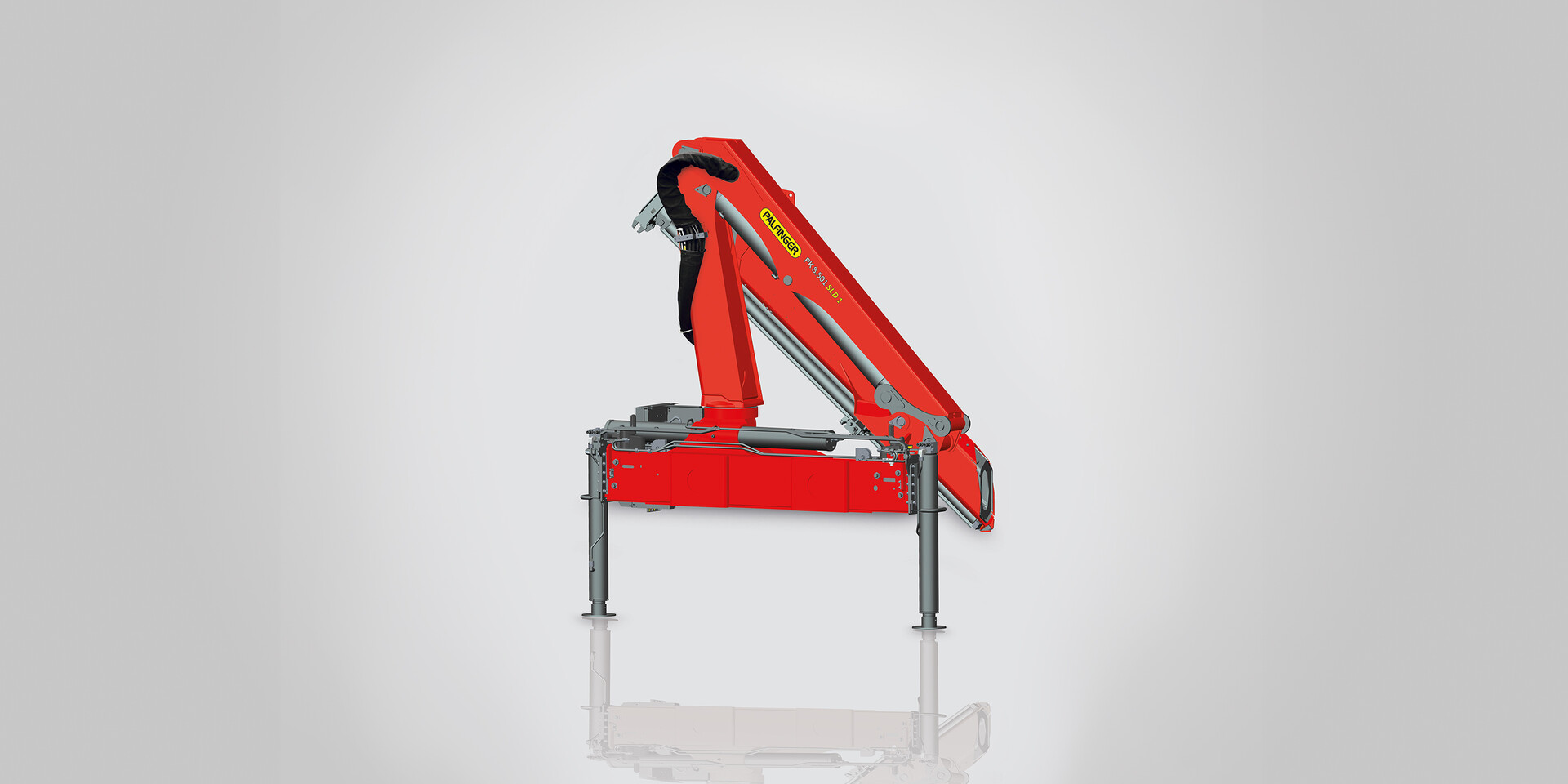

Knuckle Boom Crane
| Max. lifting moment | 58710.0 ft lbs |
| Max. lifting capacity | 12570 lb |
| Max. hydraulic outreach | 38' 9'' |
| Max. manual outreach | 52' 6" |
| Slewing angle | 400° |
| Slewing torque | 7230.0 ft lbs |
| Stabilizer spread (std) | 16' |
| Fitting space required (std) | 2' 4'' |
| Width folded | 7' 7'' |
| Max. operating pressure | 4785 psi |
| Pump capacity | 6.6 - 9.2 gpm |
| Dead weight (std) | 2320 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 8.1 mt |
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 11.8 m |
| Max. manual outreach | 15.8 m |
| Slewing angle | 400° |
| Slewing torque | 1.0 mt |
| Stabilizer spread (std) | 32 m |
| Fitting space required (std) | 0.72 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 25 - 35 l/min |
| Dead weight (std) | 1050 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 58604.0 | - | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2320 | 78.94 | 90.55 | 27.56 |
| A | 57157.0 | 39' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2510 | 78.94 | 90.55 | 27.56 |
| B | 54986.0 | 46' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2730 | 78.94 | 90.55 | 27.56 |
| C | 53539.0 | 52' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2910 | 78.94 | 90.55 | 27.56 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Std | 8.1 | 5.6 | 400 | 1.0 | 33.0 | 25-35 | 1050 | 2005 | 2300 | 720 |
| A | 7.8 | 7.6 | 400 | 1.0 | 33.0 | 25-35 | 1140 | 2005 | 2300 | 720 |
| B | 7.6 | 9.7 | 400 | 1.0 | 33.0 | 25-35 | 1240 | 2005 | 2300 | 720 |
| C | 7.4 | 11.8 | 400 | 1.0 | 33.0 | 25-35 | 1320 | 2005 | 2300 | 720 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
