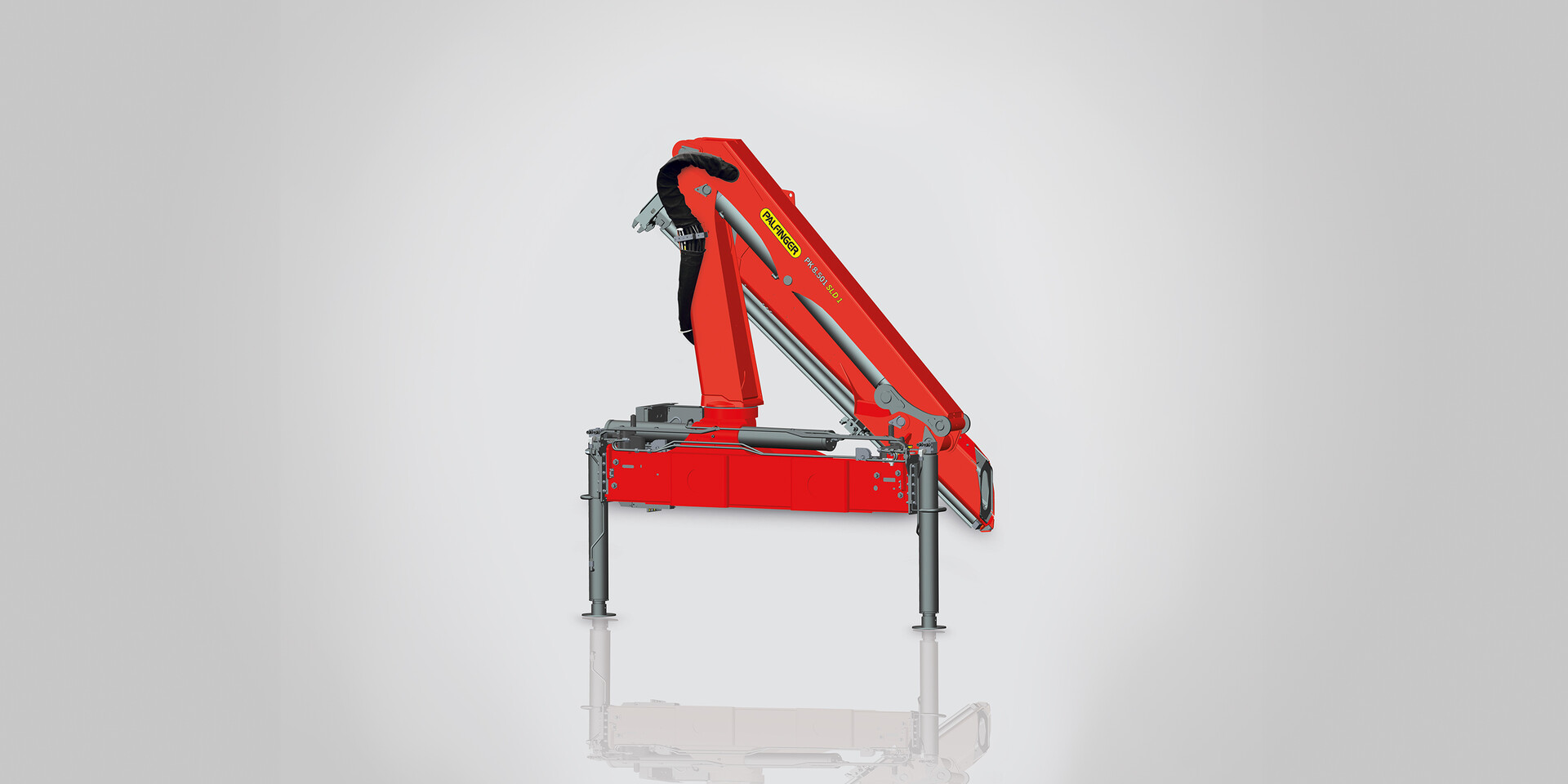

PK 8.501 SLD 1
INTELLIGENT LIGHTWEIGHT DESIGN OFFERS AN OPTIMIZED MOUNTING CONCEPT
- More power on the hook due to Single Link
- Shorter load cycle times due to High Speed extension
- Perfect appearance and the highest value retention due to coating technology
![](https://assets.palfinger.com/cache-buster-1601458159/importdata/product-data/loader-cranes/highlights/image-thumb__7597__highlight-slider-img/return-oil-utilisation.jpg)
![](https://assets.palfinger.com/cache-buster-1601465321/importdata/product-data/loader-cranes/highlights/image-thumb__7695__highlight-slider-img/single-link.jpg)
High Speed Extension
The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.
Single Link
The knuckle joint significantly improves the crane’s motion geometry.
- Technical data U.S. Units
- Technical Data Metric
- Lifting Capacities U.S. Units
- Lifting Capacities Metric
Max. lifting moment | 58710.0 ft_lbs |
Max. lifting capacity | 12570 lb |
Max. hydraulic outreach | 38' 9'' |
Max. manual outreach | 52' 6" |
Slewing angle | 400° |
Slewing torque | 7230.0 ft_lbs |
Stabilizer spread (std) | 16' |
Fitting space required (std) | 2' 4'' |
Width folded | 7' 7'' |
Max. operating pressure | 4785 psi |
Pump capacity | 6.6 - 9.2 gpm |
Dead weight (std) | 2320 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Max. lifting moment | 8.1 mt |
Max. lifting capacity | 5700 kg |
Max. hydraulic outreach | 11.8 m |
Max. manual outreach | 15.8 m |
Slewing angle | 400° |
Slewing torque | 1.0 mt |
Stabilizer spread (std) | 32 m |
Fitting space required (std) | 0.72 m |
Max. operating pressure | 330 bar |
Pump capacity | 25 - 35 l/min |
Dead weight (std) | 1050 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|
|
|
|
|
|
|
|
Crane Width (inch) |
|
|
---|---|---|---|---|---|---|---|---|---|---|
Std | 58604.0 | - | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2320 | 78.94 | 90.55 | 27.56 |
A | 57157.0 | 39' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2510 | 78.94 | 90.55 | 27.56 |
B | 54986.0 | 46' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2730 | 78.94 | 90.55 | 27.56 |
C | 53539.0 | 52' | 400 | 7230 | 4786.0 | 6.6 - 9.2 | 2910 | 78.94 | 90.55 | 27.56 |
|
|
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|---|
Std | 8.1 | 5.6 | 400 | 1.0 | 33.0 | 25-35 | 1050 | 2005 | 2300 | 720 |
A | 7.8 | 7.6 | 400 | 1.0 | 33.0 | 25-35 | 1140 | 2005 | 2300 | 720 |
B | 7.6 | 9.7 | 400 | 1.0 | 33.0 | 25-35 | 1240 | 2005 | 2300 | 720 |
C | 7.4 | 11.8 | 400 | 1.0 | 33.0 | 25-35 | 1320 | 2005 | 2300 | 720 |

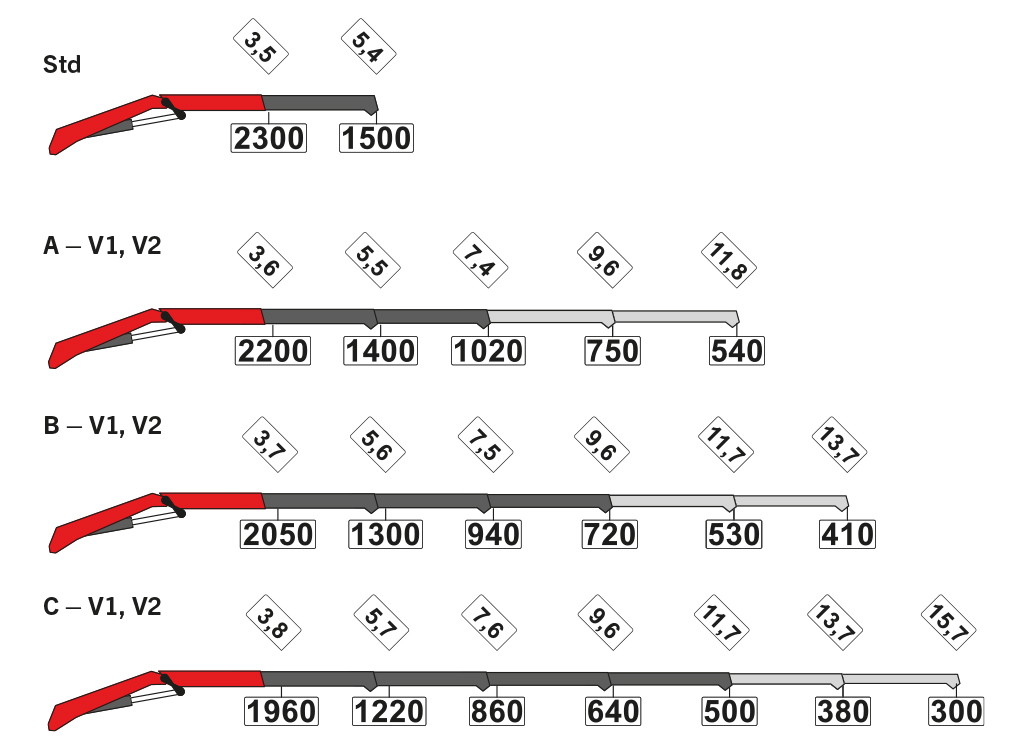

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
![](https://assets.palfinger.com/cache-buster-1502113691/importdata/product-data/loader-cranes/images/loader-cranes/PK%208.501%20SLD%201%20S105-EK-B/pk%208.501%20sld1_armdrawing.jpg)
