L-Series

M12L

Epsilon Timber and Recycling Crane

NEW STANDARDS IN TECHNOLOGY AND DESIGN

What can we do for our customers?

At Palfinger, we pursued comfort, durability and design for the new M series, and as a result, we are now able to offer products that no one could even imagine. The master drive system, which has established new standards for design and technology, and the longest boom system in its class are the first in the industry, and were developed to improve work efficiency such as customer comfort. The new M series is a reliable machine that responds to the voices of many customers.

Downloads Technical Data

Perfection in Action

Images & Videos

Highlights

Option 1

This all-new topseat has dramatically improved comfort and operability. Combining the sophisticated technology and experience of Palfinger Epsilon, this master drive enables smooth crane operation that no one has ever experienced, and makes it less tiring even during long hours of operation. Ergonomic seats with mechanical suspension provide unprecedented comfort.

Multi-function armrest
Cockpit control is placed.
Joystick lever (hydraulic control method)
Light operation feeling like power steering.
Twin direction suspension
The ergonomically shaped horizontal and vertical suspension seats from Glamor, Germany, are easy to move,
provide a safe and stable seating position, and are equipped with seat heaters, weight adjustment and lumbar support..
Twin direction suspension

Main Specifications

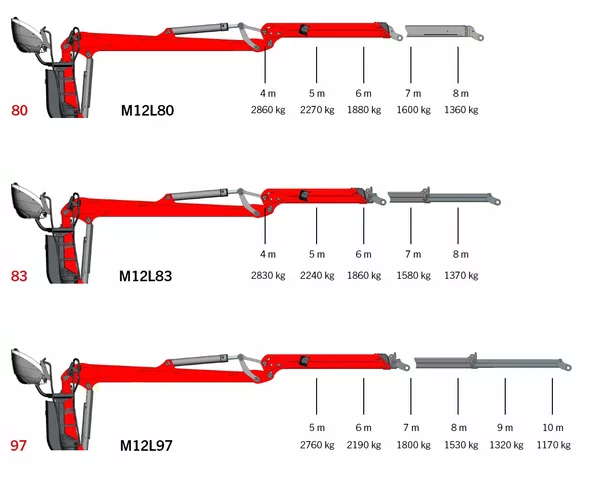

Rated Load

	M12L
Boom length	80	83	97
Crane capacity [kNm]	115	113	110
Turning torque [kNm]	28	28	28
Turning angle [◦]	425	425	425
Maximum working radius [m]	8	8,3	9,7
Rated pressure [bar]	250	250	250
Recommended pump capacity 2K [l / min]	1x80	1x80	1x80
Recommended pump capacity 1K LS [l / min]	1x150	1x150	1x150
