Jumbo Class NX

P 640

Access Platform

Working Height 64 M

Basket Load 600 KG

Side Reach 40,5 m

OUTSTANDING PERFORMANCE DATA

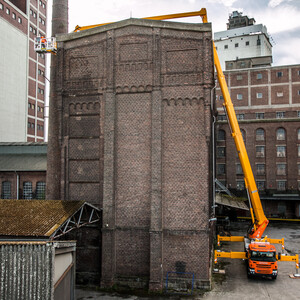

The P 640 model offers a working height of 64 metres and a reach of 41 metres. The fully automatic telescope lubrication system supplies the lower boom telescopes with grease during operation. This extends the service life of the platform and keeps service costs to a minimum.

Greater working range thanks to 240° X-jib
2 x 200° rotation for perfect positioning of the workman basket
Telescopic upper boom up to 19 m

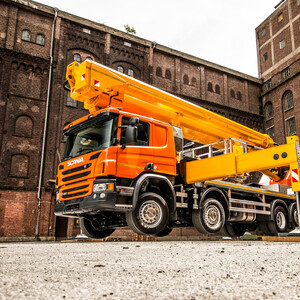

Can be mounted on four-axle chassis with 32 t
Telescopic basket with 600 kg basket load and integrated preparation for Powerlift system

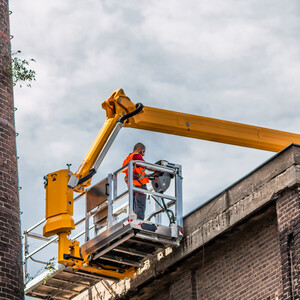

Hanging basket enables users to get close to objects

Downloads

Perfection in Action

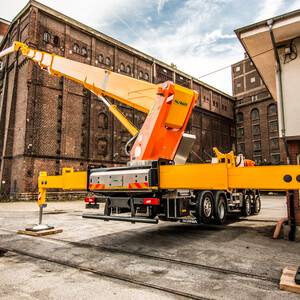

Images & Videos

Max. height of work	64 m
Max. basket floor height	62 m
Max. horizontal outreach /with basket load	40,5 m
Slewing range of basket	2 x 200°
max. basket load	600 kg
Workman basket - breadth / length / height	3.81 x 1.04 x 1.1 m
Rotation angle of turntable	540°
Height in transport position	3.93 m
Width in transport position	2.51 m
Overall length	11.93 m
Overall weight	29000 kg

*above mentioned values are standard values and vary depending on options and chassis

Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
