Heavy

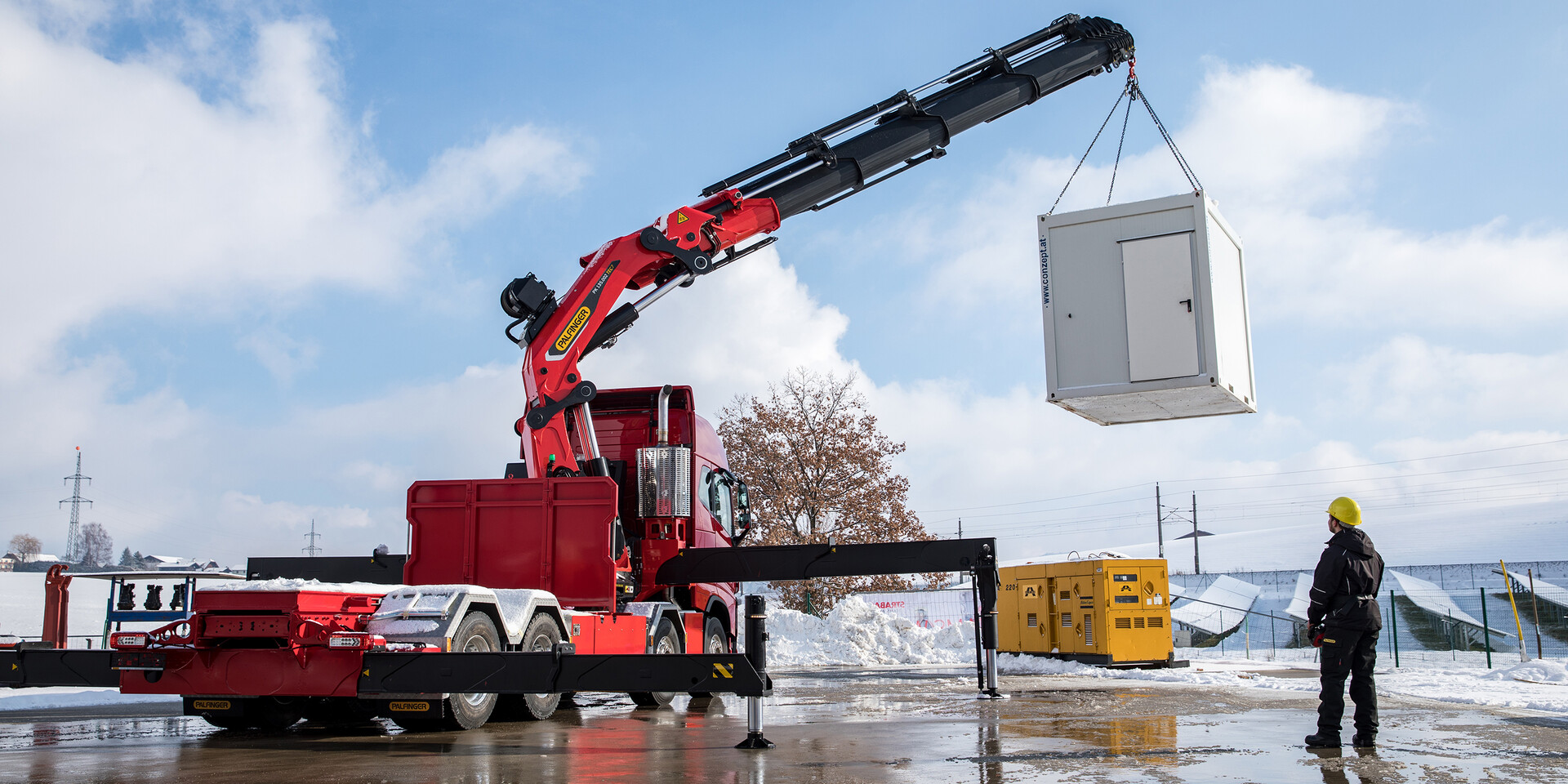

PK 135.002 TEC 7
PK 135.002 TEC 7
AOS
PRODUCT FEATURES
The patented PALFINGER "AOS" oscillation suppression system cancels out vibrations and blows that occur during crane operation. Any "post-oscillation" is prevented through rapid braking or load changes. The result is a decisive increase to safety in crane operation for employees, the load and building.
HOW IT WORKS
The electronics receive signals from pressure sensors on both sides of the elevating cylinder and interpret them as arm vibrations. The signals for the counter-movement of the elevating cylinder are handled by the control valve. The incurred vibration can be cancelled through the exactly determined frequency and wavelength. The result is damping of the arm to just one or two short vibrations so that the arm comes to an immediate standstill.
* Optional feature/country-specific-equipment
HPSC
PRODUCT FEATURES
The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional path measurement in the stabilizer supports permit completely variable support positioning. Hence, the permissible, safe working range can be calculated for any support situation.
HOW IT WORKS
The HPSC system calculates the permissible working range for any slewing angle of the boom system and for any support situation. The position of the stabilizer support is detected by means of a cable extension transducer or magnetostrictive position sensor. Based on the intelligent calculation algorithm developed by PALFINGER, it works more efficiently than comparable systems that are available in the market.
* Optional feature/country-specific-equipment
HPSC Plus
PALFINGER has continued development of the well-proven stability control system HPSC and is offering additional application-orientated functions in a modular system. Three modules which are available on their own as well as combined, turn HPSC into HPSC-Plus. In this way, the stability control system can be adapted to the current situation and ensure an optimal performance.
* Optional feature/country-specific-equipment
DPS-C
DPS-C enables an increase of lifting power in the cases of fully as well as partly extended crane booms. A length measuring system identifies the current position of the extension booms and the fly jib. In that way, the performance can be optimised across the entire outreach.
* Optional feature/country-specific-equipment
| Max. lifting moment | 109.3 mt |
| Max. lifting capacity | 30000 kg |
| Max. hydraulic outreach | 21.9 m |
| Slewing angle | ∞ |
| Slewing torque with 2 gears | 10.6 mt |
| Stabilizer spread (std) | 10.0 m |
| Fitting space required (std) | 2.55 m |
| Max. operating pressure | 385 bar |
| Pump capacity | 2x 100 - 130 l/min |
| Dead weight (std) | 10170 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 105.0 | 10.8 | ∞ | 10.6 | 38.5 | 2x 100 - 130 | 10170 | 2600 | 2550 | 2450 | |
| 101.6 | 15.0 | ∞ | 10.6 | 38.5 | 2x 100 - 130 | 10930 | 2600 | 2550 | 2540 | |
| 100.7 | 17.2 | ∞ | 10.6 | 38.5 | 2x 100 - 130 | 11250 | 2600 | 2550 | 2600 | |
| 99.0 | 19.6 | ∞ | 10.6 | 38.5 | 2x 100 - 130 | 11530 | 2600 | 2550 | 2600 | |
| 99.2 | 22.0 | ∞ | 10.6 | 38.5 | 2x 100 - 130 | 11780 | 2600 | 2550 | 2600 | |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
