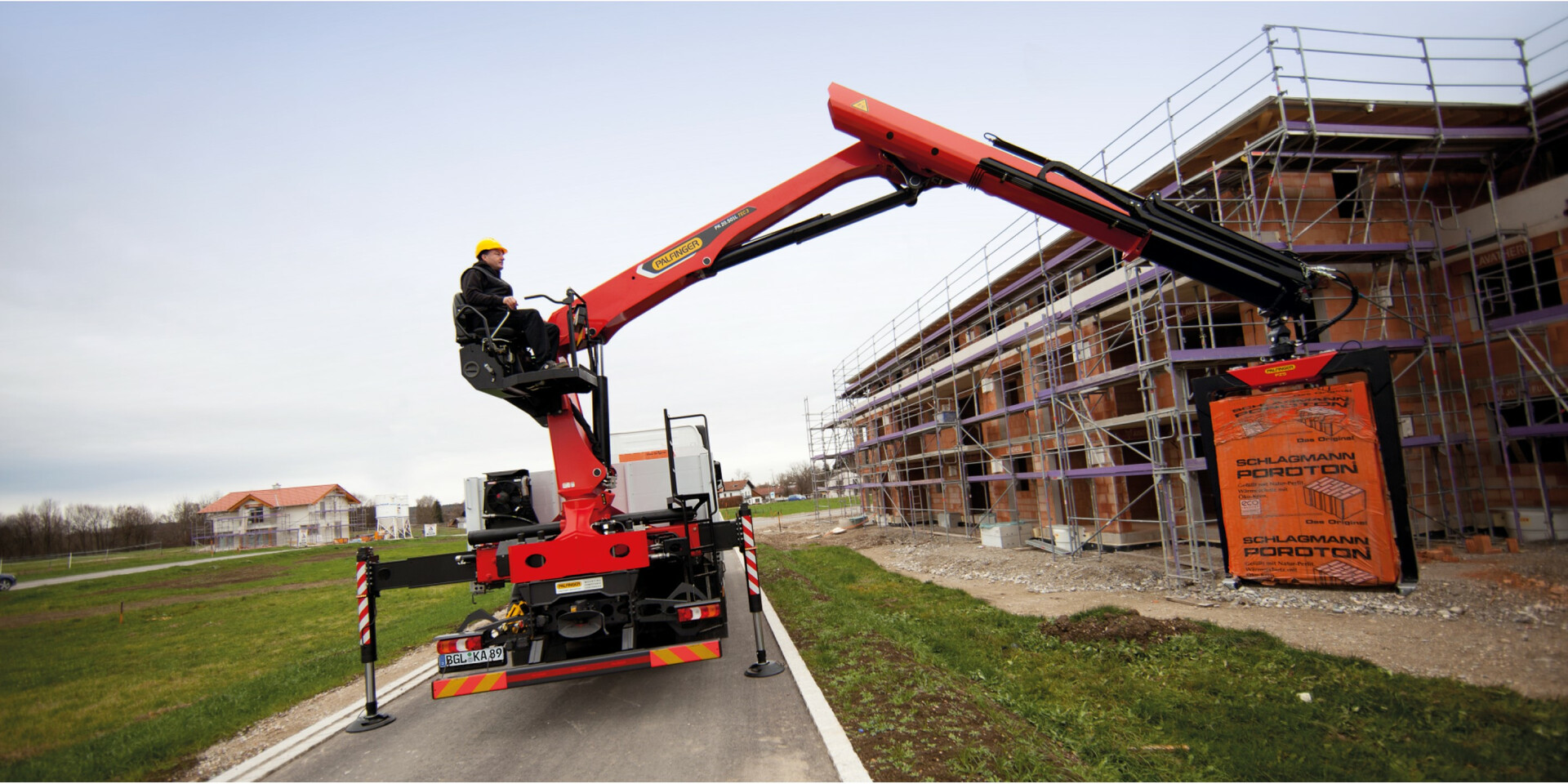

PK 20.501L TEC 3

Loader Crane

High outreach and high operating speed ensure efficient handling of construction material

  • Maximum radius of action thanks to slewing angle of 440 degrees
  • Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing
  • Avoiding damage of the hydraulic hoses and compact set-up dimensions thanks to the new internal hose guiding system
  • Excellent visibility and high operator comfort thanks to new top seat with new joystick control



Downloads Technical Data

Internal hose routing system through the column

Avoiding damage of the hydraulic hoses as well as compact set-up dimensions are possible thanks to the internal hose routing system.

Loading height in close range

Thanks to the very good loading height in close range, the crane can move pallets over the entire loading area.

Details

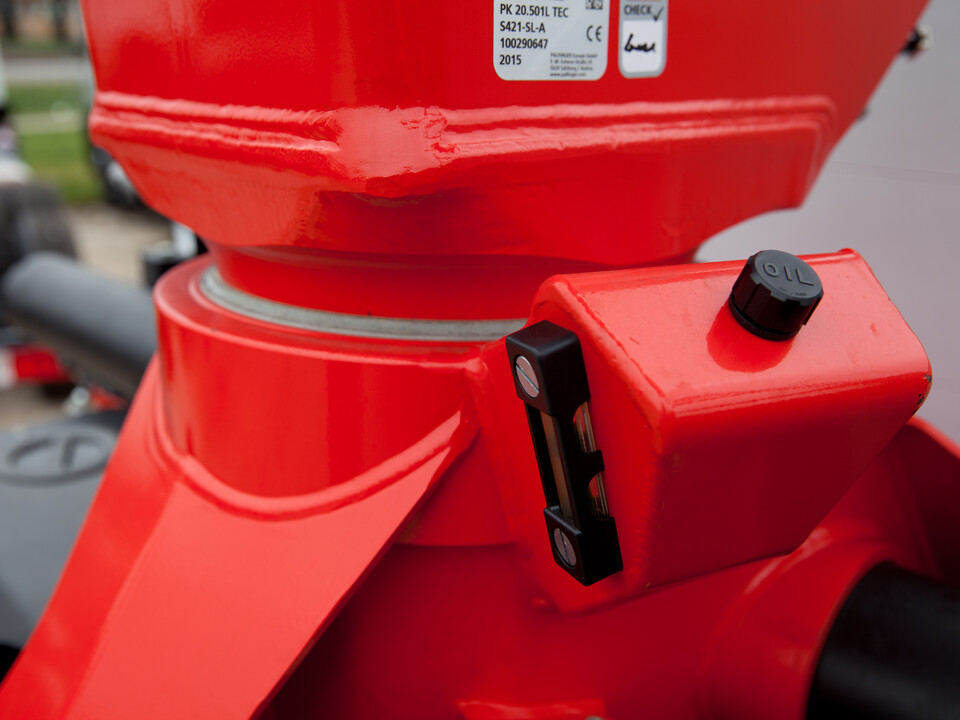

Slewing Mechanism in Oil Bath

Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing.

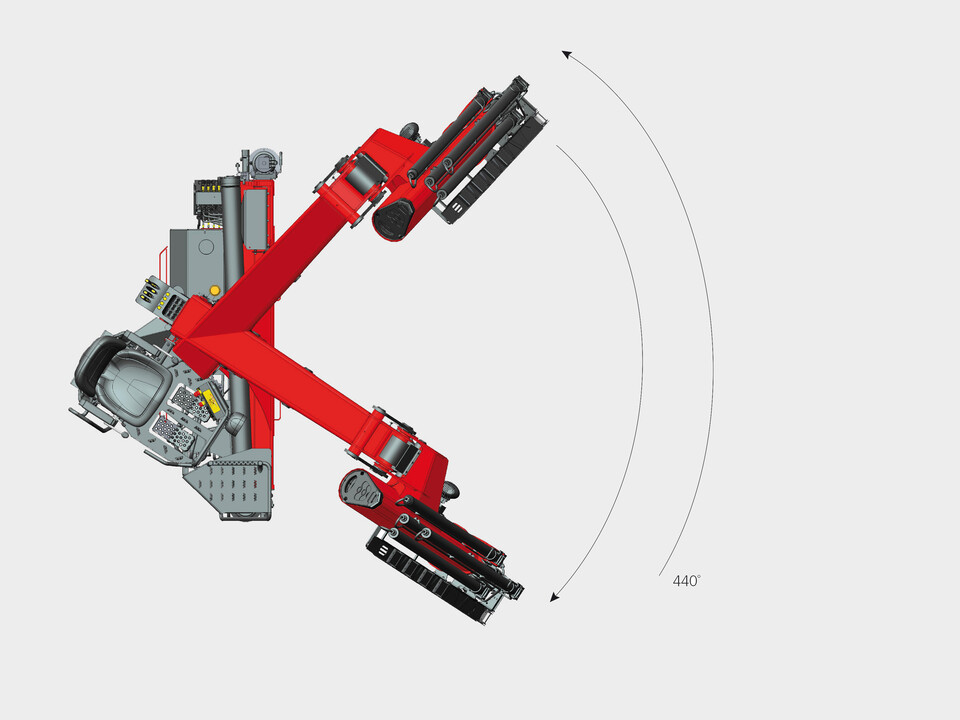

Slewing angle

The slewing angle of 440 degrees enables the maximum radius of action.

P-Profile

The polygonal or drop-shaped P-Profile is especially rigid and simultaneously light weight design perfection. Thanks to self-lubricating materials, the extension boom system is low in maintenance.

Details
Max. lifting moment 19.7 mt
Max. lifting capacity 5650 kg
Max. hydraulic outreach 13.7 m
Slewing angle 440°
Slewing torque 3.1 mt
Stabilizer spread (std) 6.6 m
Max. operating pressure 340 bar
Recommended pump capacity
Top seat RSQ240 		50 - 70 l/min
Recommended pump capacity
Top seat RSQ240 LS		 65 - 90 l/min
Recommended pump capacity
Top seat PVG32 Radio		 85 - 110 l/min
Dead weight (std) 2400 kg

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Lifting moment
(mt) 		Outreach
(m) 		Slewing angle
(°) 		Slewing torque
(mt) 		Pressure
(MPa) 		Pump capacity
(l/min) 		Crane Weight
(kg) 		Crane Height
(mm) 		Crane Width
(mm) 		Installation Width
(mm)

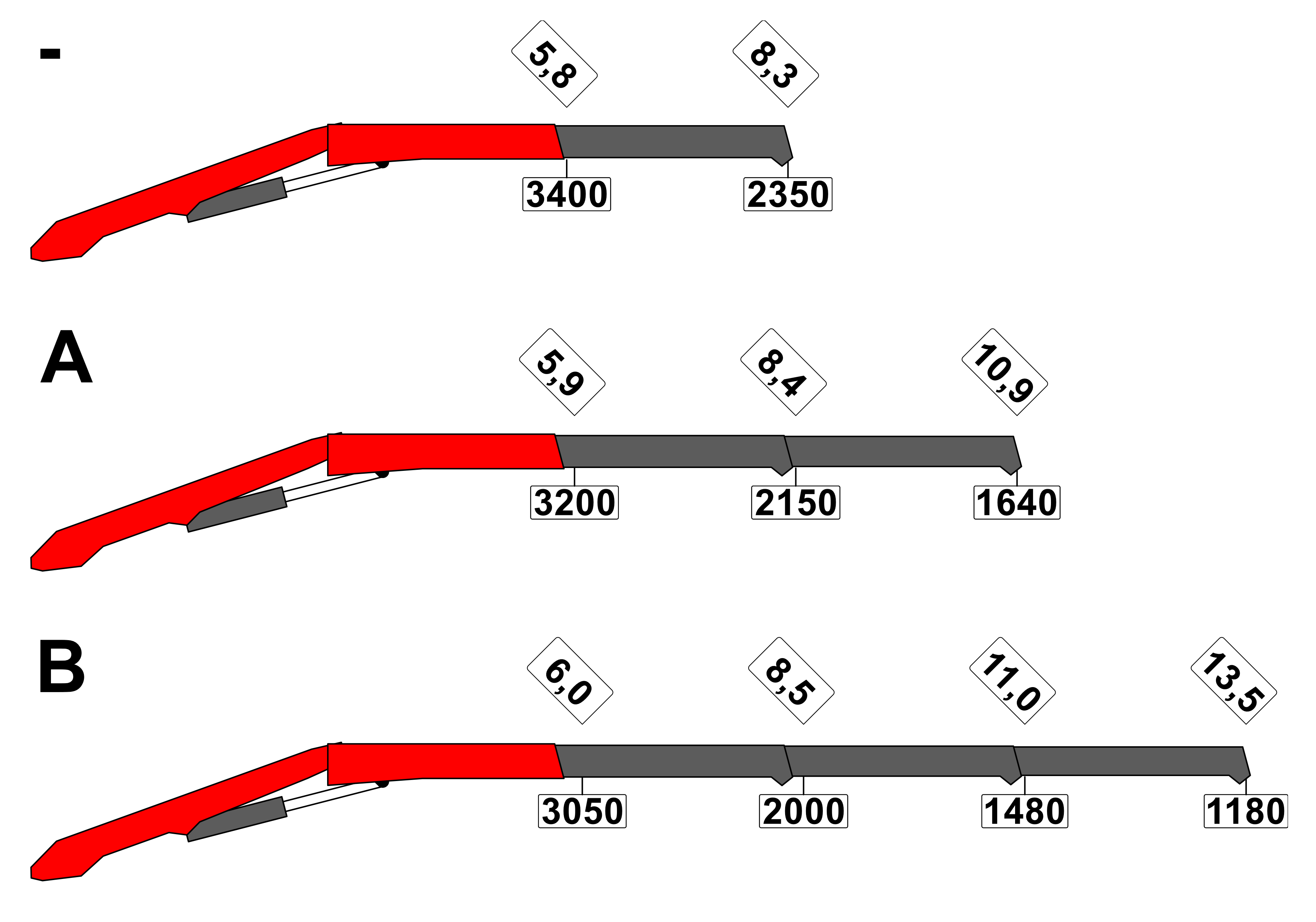

Std 19.7 8.5 440 2.3 34.0 50-110 2400 2430 2550 -
A 19.1 11.1 440 2.3 34.0 50-110 2570 2430 2550 -
B 18.4 13.7 440 2.3 34.0 50-110 2730 2430 2550 -

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
