18 - 19 t GVW

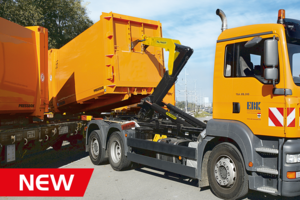

TELESCOPIC HT 18 A ACTS

TELESCOPIC

Hooklift

Versatility at all stages

The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s low transport height and light weight contribute to the assets to maximize application options safely. The TEC line brings flexibility and state of the art features, opening up the possibility to add various options to improve equipment, in terms of comfort, performance and safety.

The HT 18 A ACTS TEC can be installed on chassis of 26 t and are capable of handling containers up to 18 t in loading, unloading, trailer transfer and tipping.

With the ACTS version, transfer to railway wagon is possible according to ACTS standard.

Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet. The range in length can be further extended with an articulated jib, while allowing the loading angle to be reduced to limit spillage.

Downloads Technical Data

Perfection in Action

Images & Videos

Technical data

HT 18 A ACTS

Unit length (mm)	Container max. length (mm)	Container min. length (mm)	Transport height	Weight (kg)	Tipping angle (°)
4950	5750	2500	250	2400	53
5100	6000	2500	250	2400	53
5300	6000	2750	250	2450	53
5450	6250	3000	250	2450	50
5650	6500	3250	250	2500	48
5850	6500	3250	250	2500	48
6000	6750	3500	250	2550	50
6150	7000	3500	250	2550	48
