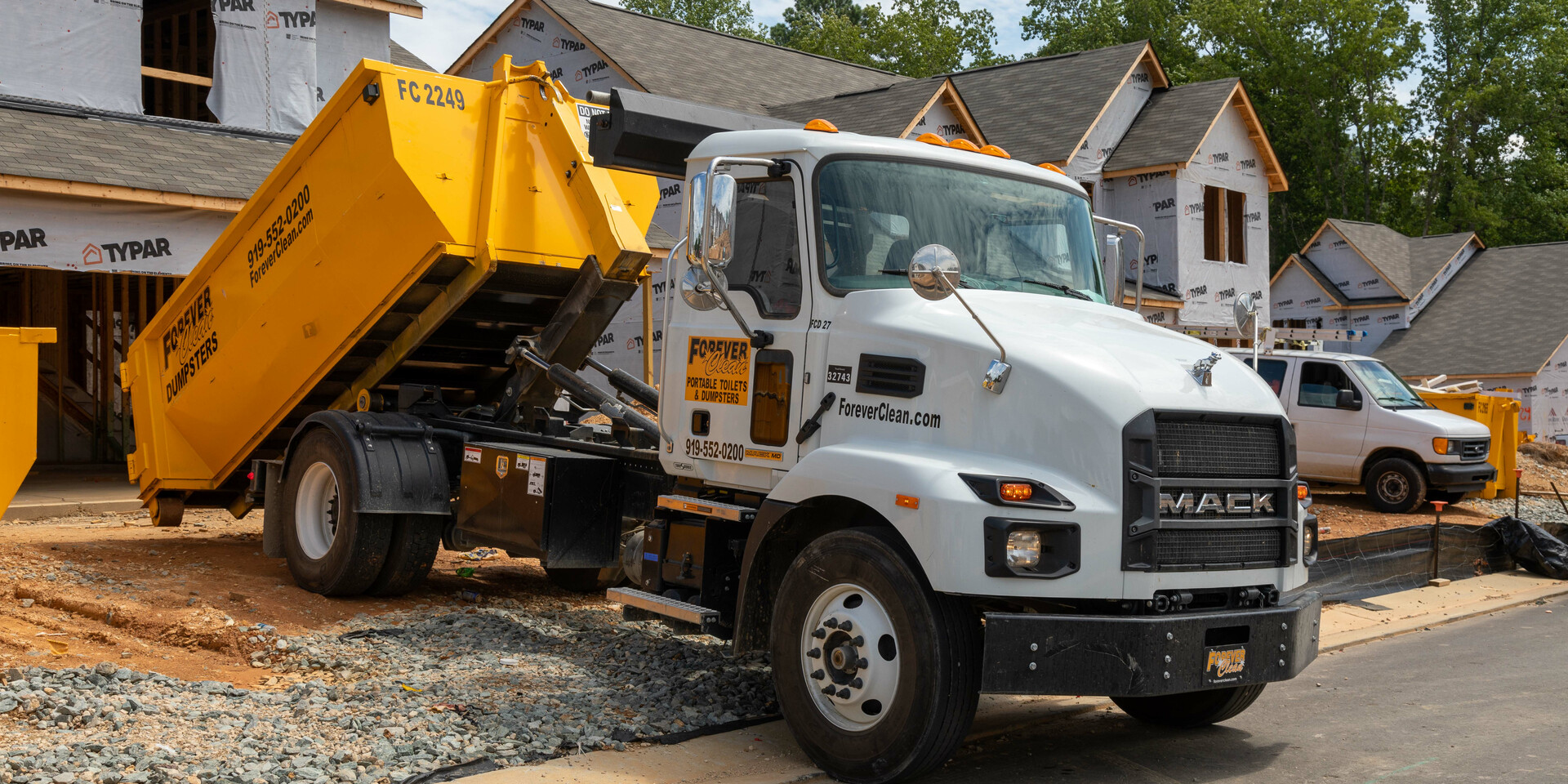

Multi

HT 160

Single Axle

Hooklift

Imperial Metric

Hook Height 36" - 54"

Container Length 10' - 12'

Min GVWR 22,500 lbs.

Technical Data

Higher Performance

Reduced dead weight (-10%) while keeping the lifting and tipping capacity unchanged at 16,000 lbs.

Easy Installation

The new subframe design, featuring a raised front cross member, suits many trucks.
- Quick and easy installation
Standard Advanced Mounting (SAM)
POP (PALFINGER Origin Protection) Painting and surface treatment — best protection for our customers' investment value over the unit's lifetime.

User-Friendliness

Adjustable hook height (36"/54")
Greaseless bushings minimize maintenance
New hook shape — allows for easier connection to the container bar
Flexible "clamp-on" slide-through container hold-down brackets

Downloads

Perfection in Action

Images & Videos

Container Locking System

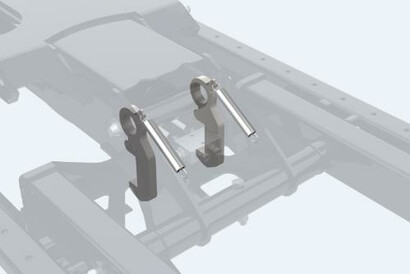

Equipped with mechanical locking hooks welded to the tipping frame.

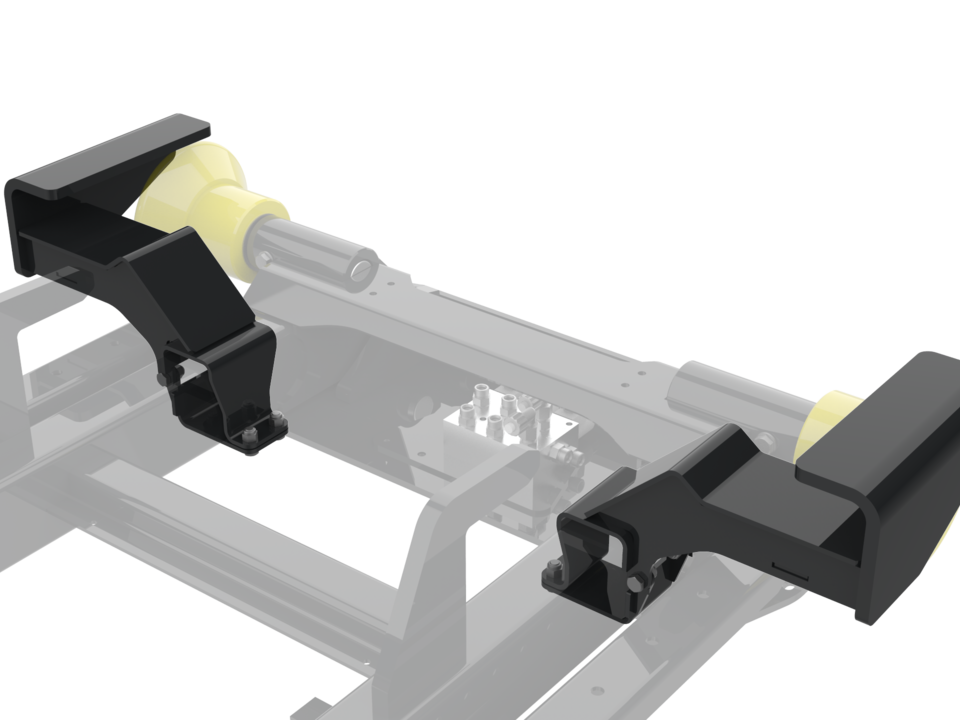

The “clamp-on” slide-through container hold-downs are to be added on request and can be easily positioned to the customer's demand.

User-friendliness: flexible positioning of the slide through hold-down brackets.

Main Control Valve

The SLD3 range features a single-speed control.

The SDM110 main valve has a “monoblock” design with a direct electric spool activation (no compressed air required).
Equipped as standard with three hydraulic functions. Optionally up to five functions are possible.

Optional feature “Softstop”:

A hook loader of this capacity range is now available with the “soft-stop” feature for the first time. This well-known feature from only heavy-duty hook loaders slows down the bin 5° before it lands onto to base frame. This reduces the stress on the structure of the hook loader and the chassis frame.

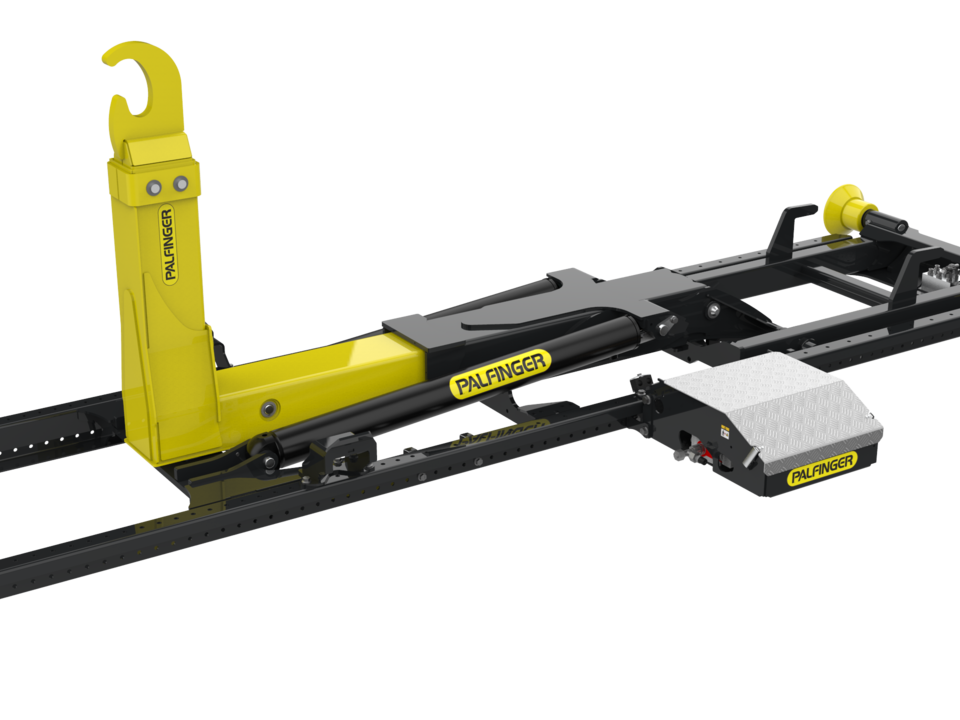

New Hook Arm

"Spoon Effect" Hook Shape

This new hook arm design features a new “spoon effect” hook shape, simplifying the connection to the bin. It allows the pickup of the bin by just lifting the arm from underneath the container ring.

Equipped as a standard with a mechanically adjustable hook height (36”/54”)
Higher performance due to fewer limitations of hook heights
User-friendly due to easier connection to the bin.

Highlights

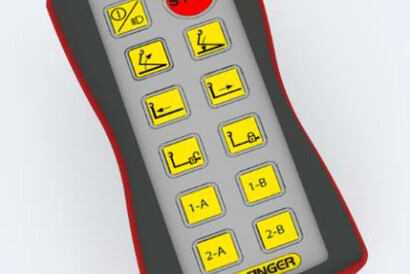

Easy Drive Control System

Easy Drive control offers an easy and reliable in-cab command for hook loader operations. There are two different sizes are available with three or five functions.

The controller is connected by a thin CAN BUS cable and is programmed directly via the handset. Two LEDs are used for status indication and transport position monitoring. An acoustic warning is embedded in the cab control as well.

Hook loader operation is activated via the in-cab control—no need for PTO signal.
Auto power off the control system if the unit is not used for more than three minutes.
The in-cab controller has a magnet to position it to the driver’s liking.

Tipping Lock

The tipping lock is now actuated by the sliding arm

Reliability

The container condition doesn’t influence the tipping lock

Service friendliness

Maintenance operations are easier
A safety rod is available as a service tool

	Lift / DumpCapacity (lb.)	CA Range (in.)	Optimum CA (in.)	Min. GVWR (lb.)	Hooklift length	Body Length Range (ft.)	Optimum Body Lenghts (ft.)	Jib Height (in.)	Jib Action	Max. Dump Angle	Pivot	# of Lift / Dump Cylinders	Operating Pressure (PSI)	Pump Type	Fitting Hoses	Paint	Construction
L	16000	120 in	120	22500	140	11-14 ft	12-14 ft	36/54 in	Telescopic	51°	Dual	2/2	4500	Piston	JIC/SAE	Finish Paint	A514 (T-1)
S	16000	108 in	108	22500	128	10-12 ft	11-12 ft	36/54 in	Telescopic	59°	Dual	2/2	4500	Piston	JIC/SAE	Finish Paint	A514 (T-1)

	Lift / DumpCapacity (lb.)	CA Range (in.)	Optimum CA (in.)	Min. GVWR (lb.)	Hooklift length	Body Length Range (ft.)	Optimum Body Lenghts (ft.)	Jib Height (in.)	Jib Action	Max. Dump Angle	Pivot	# of Lift / Dump Cylinders	Operating Pressure (PSI)	Pump Type	Fitting Hoses	Paint	Construction
L	7257.5	3 m	2.7	10205.8	3.3	3.4-4.3 m	3.7-4.3 m	914.4/1371.6 mm	Telescopic	51°	Dual	2/2	31	Piston	JIC/SAE	Finish Paint	A514 (T-1)
S	7257.5	2.7 m	2.7	10205.8	3.3	3-3.7 m	3.4-3.7 m	914.4/137.6 mm	Telescopic	59°	Dual	2/2	31	Piston	JIC/SAE	Finish Paint	A514 (T-1)

New Subframe

Speeds up the installation and ensures a proper fixation on the most common chassis.

The side and top row of holes enable bolted fixation
Free holes at the front crossbeam area
The front cross beam is raised up just over 2.5 inches
- Collision with the gearbox is prevented
The subframe is designed with a bi-point cinematic to ensure an optimized tipping capacity

Grease-Free Bushes

The bushes used are composed of compound material, enabling grease-free usage.

Reliability

Compound bushes duration tests are making possible the extension of this technology.

Reduced Maintenance

In total, 12 grease points are removed

New Top-Mounted Oil Tank

Volume of 30L—it is to be noted that this tank will increase the installation length of the unit by 6”.
Alternatively, the already-known 50L oil tank for chassis installation can be used.

Easy installation: Fully bolt-on solution to existing holes in the base frame of the hook loader

Rear Rollers

New design— the shaft retaining system is modified to two screws and a plate to be more service friendly.

Control Box Position

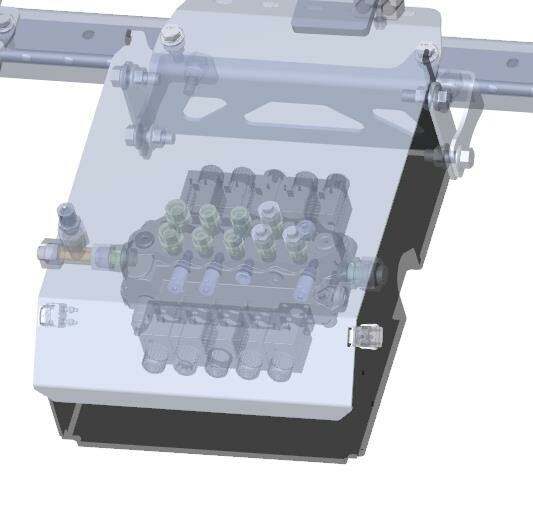

The control box is positioned in the middle left, and the main control valve is perfectly protected with a cover made of treated steel with higher scratch resistance.
