Insulated
PBO 5548 IM
Overcenter Insulated Material Handler
Elevator design
Delivers exceptional performance
Provides a smoother ride and improved hose containment, plus it decreases warranty costs. Reach up to 62 ft vertical working height with elevator option.
Additional maintenance access points
Provide access to both upper and lower boom
Maximize performance and uptime with easy access to hoses for inspections and maintenance.
Military grade plastic covers
Withstand tough conditions
Improved protection and rigidity when encountering trees and other overhead obstructions - reducing downtime.
Overstow protection
Protects upper and lower booms
Automatically reduces boom speed into the cradle maximizing equipment life.
Hydraulic tank location
Moved outside of load area for extra storage
Frees up valuable working space and provides more storage for tools and materials.
Reduced corrosion on all pins & bosses
Minimizes maintenance
Utilizing proprietary components on all pivot points, composite bushings, and trademarked coating processes on pins result in increased durability, reduced service time and lower costs.
High pressure oil filtration
Increases reliability
PALFINGER state-of-the-art high pressure filter improves oil cleanliness and reduces valve replacement.
Bucket pin triple-redundant fastening to the boom
Maximizes safety
Increases safety attachment between bucket and boom.
Very low heat generation while idling
Maximizes performance
Advanced hydraulic system reduces horsepower loss and heat generation. Temperature control extends component life.
Bonded boom tip
Safety at the highest level
Fiberglass bonded to steel improves safety during operation.
| Height to bottom of bucket* | 55’ | 57' with elevator |
| Working Height* | 60’ | 62' with elevator |
| Side Reach, Over-center | 48’ 7” |
| Side Reach, Non-Over-center | 44’ 1” |
| Rotation | 360° Continuous |
| Lower Boom Articulation | 0° -> 121° |
| Upper Boom Travel | -8° -> 195° |
| Stow Height* | 11’ 9” |
| Rated Bucket Capacity | Up to 800 lbs | 600 lbs with elevator |
| Maximum System Pressure | 3,000 psi |
| Hydraulic System Flow (Piston Pump) | Up to 22 gpm |
| Jib Length | 5’ |
| Winch Capacity | Up to 2,000 lbs |
| GVWR (Dual Rear Wheels) | 33,000 lbs |
| GAWR (Front) | 12,000 lbs |
| GAWR (Rear) | 21,000 lbs |
| C.A. | 124” |
*Based on a 40” (101.6 cm) chassis frame height
| Height to bottom of bucket* | 16.76 m | 17.37 m with elevator |
| Working Height* | 18.29 m | 18.90 m with elevator |
| Side Reach, Over-center | 14.81 m |
| Side Reach, Non-Over-center | 13.44 m |
| Rotation | 360° Continuous |
| Lower Boom Articulation | 0° -> 121° |
| Upper Boom Travel | -8° -> 195° |
| Stow Height* | 3.58 m |
| Rated Bucket Capacity | Up to 363 kg | 272 kg with elevator |
| Maximum System Pressure | 207 bar |
| Hydraulic System Flow (Piston Pump) | 83.27 lpm |
| Jib Length | 1.52 m |
| Winch Capacity | Up to 907 kg |
| GVWR (Dual Rear Wheels) | 14,969 kg |
| GAWR (Front) | 5,444 kg |
| GAWR (Rear) | 9,526 kg |
| C.A. | 314.96 cm |
*Based on a 40” (101.6 cm) chassis frame height
- 90° Bucket Rotator
- Single Handle Upper Control
- 24" x 48" Basket
- 2 Sets of Outriggers
- Emergency Hydraulic Power (12V DC)
- Dual Hydraulic Tool Circuit at Upper Controls

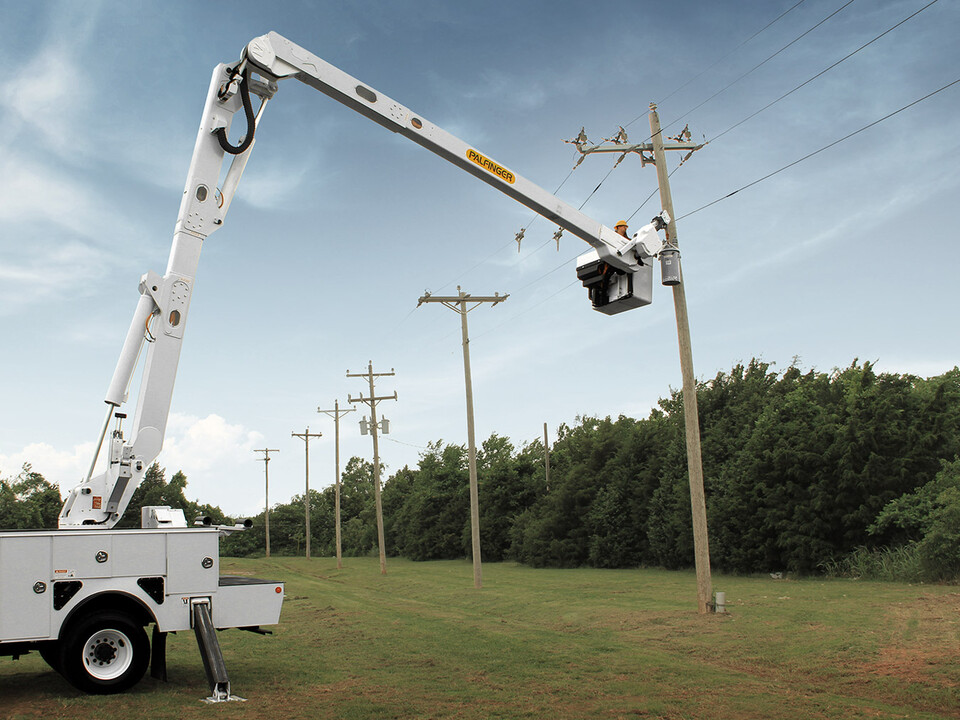

- Hydraulic Extend Jib for Material Handler
- Over-Stow Protection – Upper Boom and Lower Boom
- Stationary Worm Gear Motor for Turret Rotation with Manual Override Capability
- All Pins Turn on Replaceable Bushings
- Variable Displacement Piston Pump (Up to 22 gpm)
- Automatic Upper Boom Stow
- Continuous Rotation
- Hydraulic Bucket Tilt
- Full Pressure Hydraulic System
- Outrigger Boom Interlock
- 24" Bucket Elevator
- 69 kV Rating – Category B
- Automatic Engine Throttle
- Engine Start/Stop at Basket
- Pilot Operated Hydraulic System
