Fixed
CC 80
Basic Carrier
Container Delivery Unit (CDU)

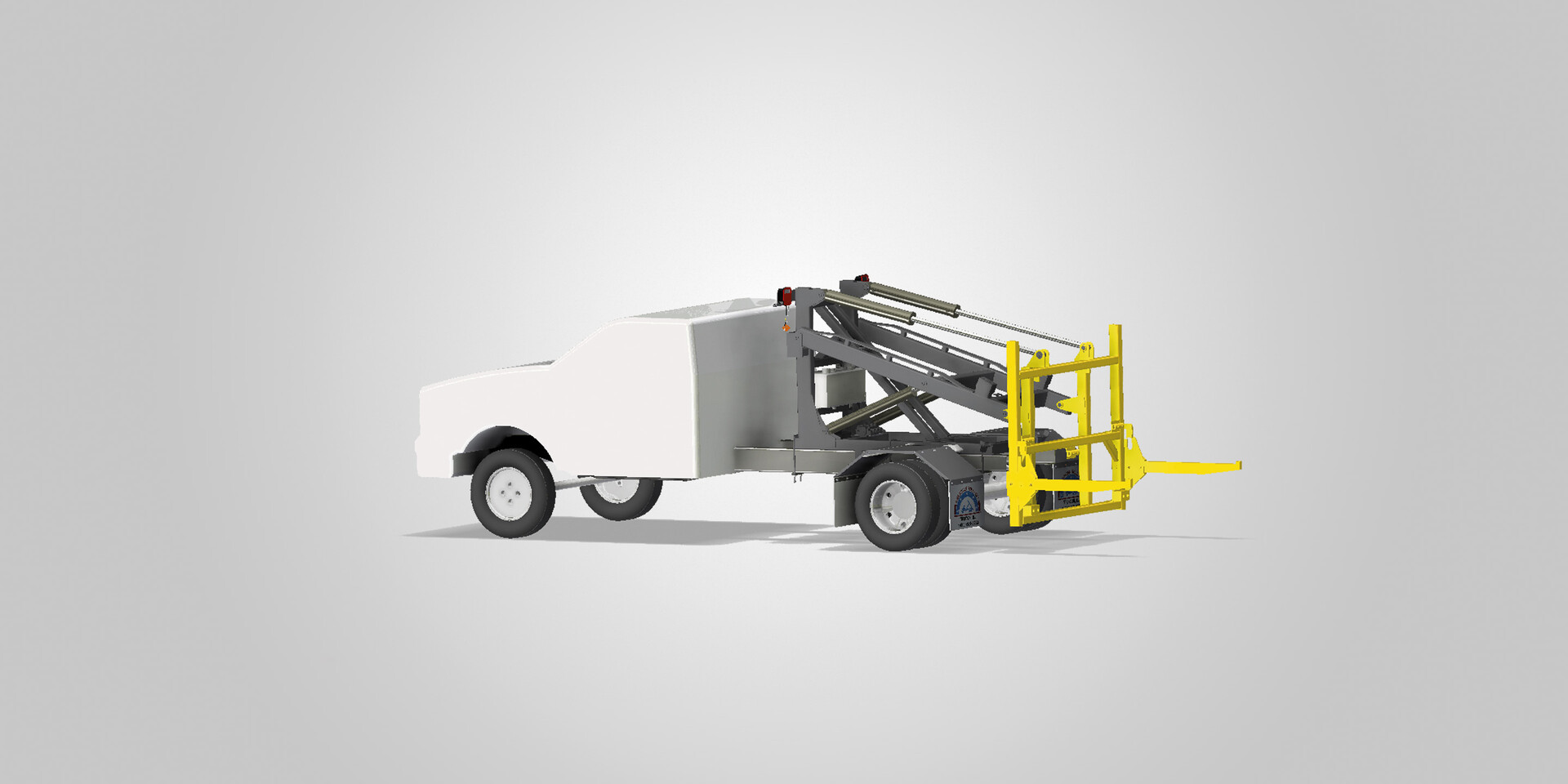

The model CC 80 container carrier is designed to easily load, unload or transport front load containers ranging from 2 to 8 cubic yards. The carrier can be mounted on a minimum 16,000 lb. GVWR chassis and 60" CA. Containers can be transported individually or using the container carrier, can load multiple containers on a flatdeck trailer for transporting to a job site. Two function cable controls are located in the cab. The carrier's fork are bolt on for ease of replacement.
OPTIONS INCLUDE:
| Lifting Capacity | 8000 lb |
| Rotating capacity (360° bi-rotational) | N/A |
| Weight (approx.) | 2550 lb |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 2 spools |
| Operating pressure | 2500 psi |
| Hydraulic tank | 10 gal. |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 84" |
| Recommended GVWR | 24000 lb |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 2550 lb |
| Lifting Capacity | 3628 kg |
| Rotating capacity (360° bi-rotational) | N/A |
| Weight (approx.) | 1156 kg |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 2 spools |
| Operating pressure | 2500 psi |
| Hydraulic tank | 37.8 l |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 84" |
| Recommended GVWR | 24000 lbs |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 1156 kg |
