Foldable
MBB F 1000 SH SX
Tail Lift
| Lifting capacity | 1000 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders |
| Lift arm pitch /Lift arm length | 1310 mm |
| Load centre - lengthwise | 600 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | +10° to -10° |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 2300 | 1605 | 478 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 1000 | 600 |
| 1500 | 400 |
| SH | SH/SX | ||

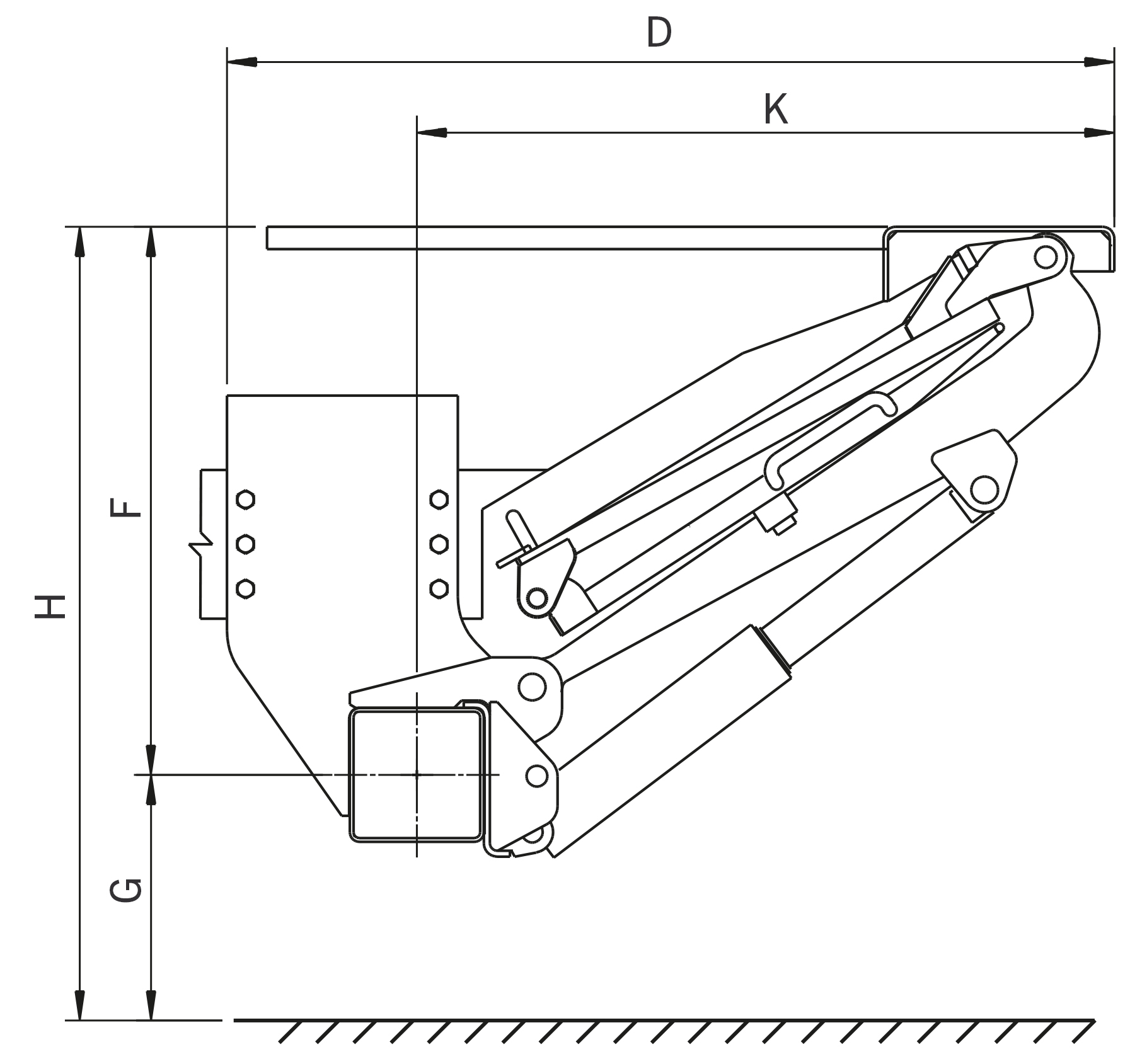

| Lift arms (in mm) | 800 | 900 | 1000 |
| H (max.) Loading height unloaded | 1420 | 1546 | 1550 |
| H (min.) Loading height loaded | 972 | 1102 | 1172 |
| F (max.) Middle of main beam to upper edge of loading floor | 822 | 896 | 980 |
| K (min.) at dimension F (max.) | 694 | 763 | 815 |
| D (min.) Installation space (min.) | 1065-850 | 1215-1000 | 1130-1070 |
| F (min.) | 607 | 737 | 794 |
| K (max.) at dimension F (min.) | 910 | 937 | 1023 |
| G (max.) Unloaded (middle of main beam to ground) | 598 | 650 | 570 |
| G (min.) loaded | 365 | 365 | 378 |
| E (max.) Vehicle frame width (max.) | 1120 | 1120 | 1120 |
| E (min.) Vehicle frame width (min.) | 750 | 750 | 750 |
