PK 8502 High Performance
PK 8502 High Performance
Loader Crane
| Max. lifting moment | 8.1 mt |
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 14.1 m |
| Slewing angle | 400° |
| Slewing torque | 1.0 mt |
| Stabilizer spread (std) | 3.2 m |
| Fitting space required (std) | 0.70 m |
| Max. operating pressure | 320 bar |
| Pump capacity | 25 - 35 l/min |
| Dead weight (std) | 1044 kg |

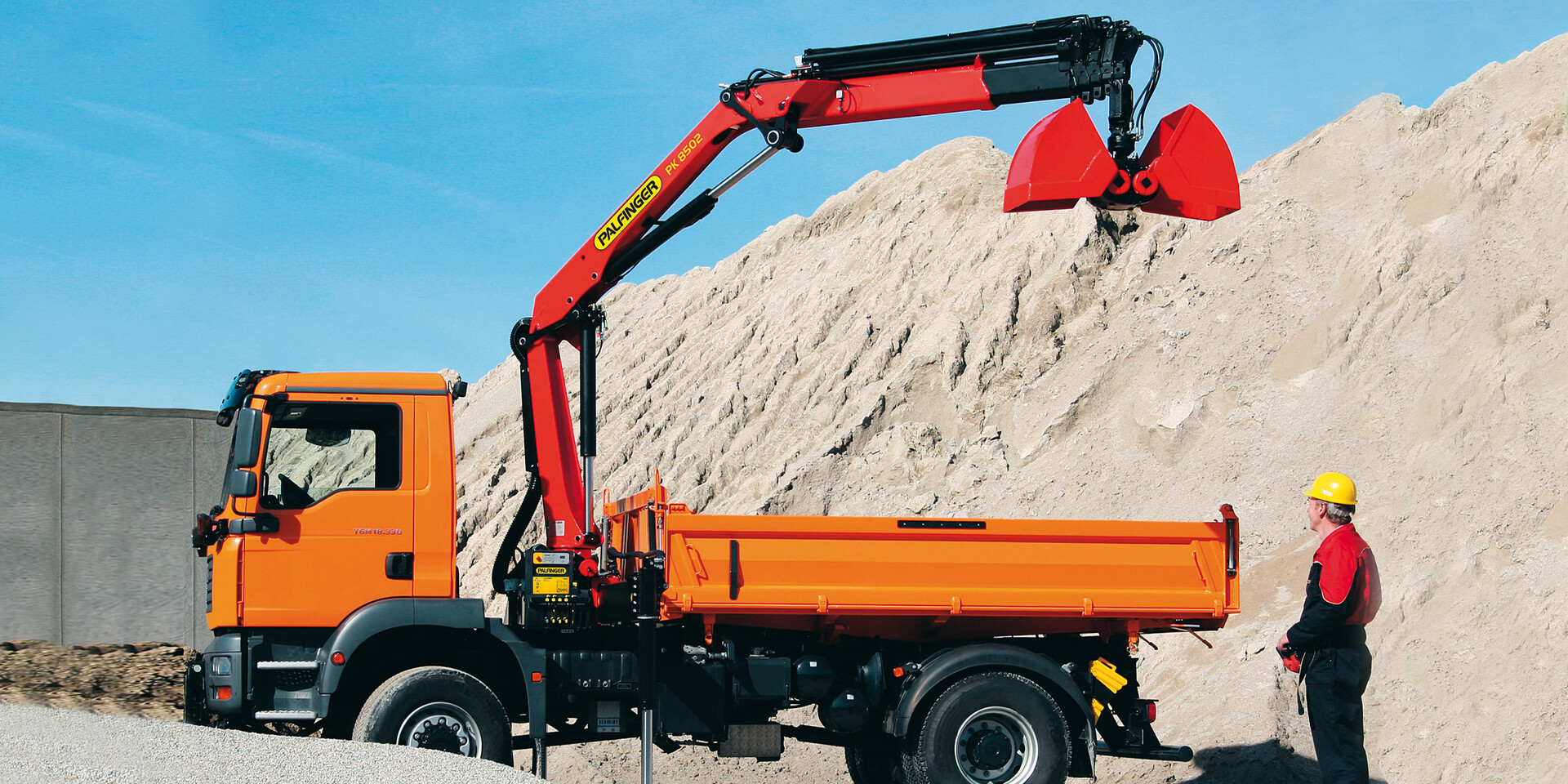

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 8.2 | 5.8 | 400 | 1.0 | 32.0 | 25 - 35 | 1044 | 2150 | 2325 | 700 | |
| 7.9 | 7.7 | 400 | 1.0 | 32.0 | 25-35 | 1141 | 2150 | 2325 | 700 | |
| 7.6 | 9.9 | 400 | 1.0 | 32.0 | 25-35 | 1246 | 2150 | 2325 | 700 | |
| 7.4 | 12.0 | 400 | 1.0 | 32.0 | 25-35 | 1342 | 2150 | 2330 | 700 | |
| 7.1 | 14.1 | 400 | 1.0 | 32.0 | 25-35 | 1438 | 2150 | 2380 | 735 |

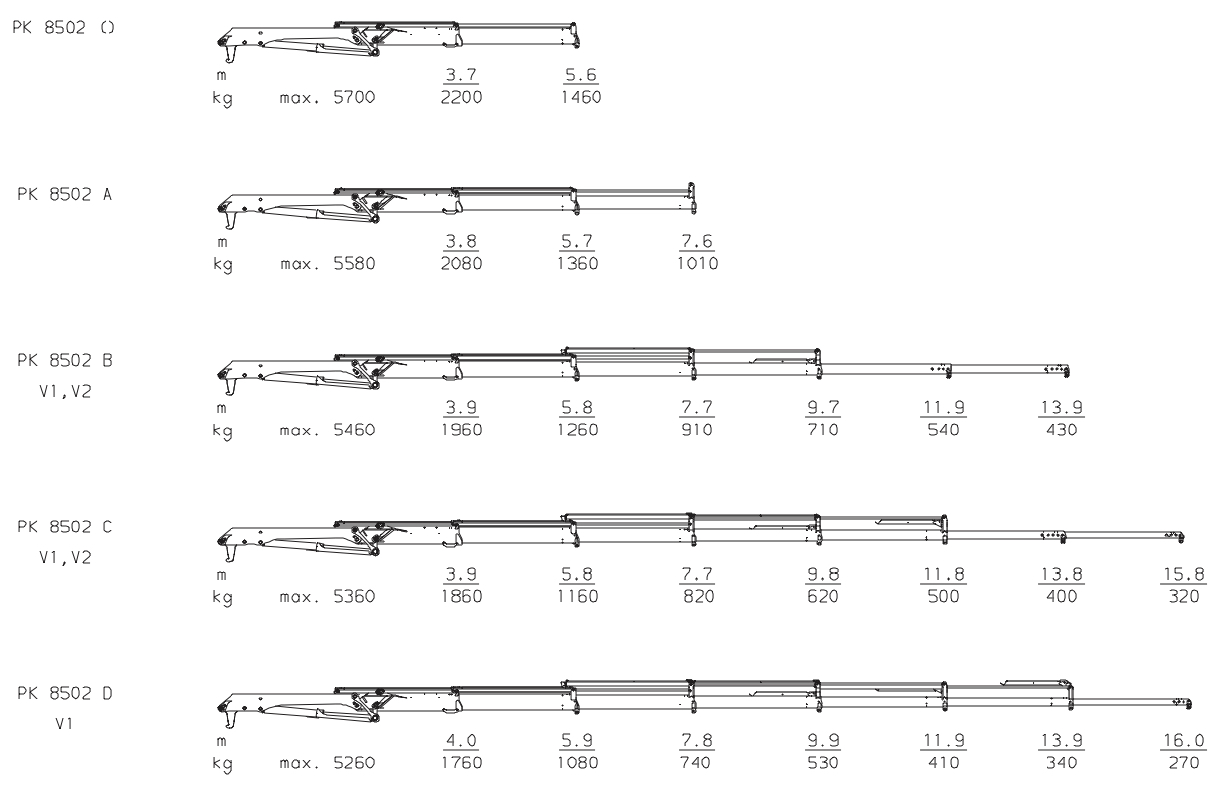

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
