PK 15500 Performance
PK 15500 Performance
Loader Crane
| Max. lifting moment | 14.4 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 14.6 m |
| Max. outreach (with fly jib) | 18.8 m |
| Slewing angle | 420° |
| Slewing torque | 1.8 mt |
| Stabilizer spread (std) | 4.6 m |
| Fitting space required (std) | 0.81 m |
| Width folded | 2.50 m |
| Max. operating pressure | 300 bar |
| Pump capacity | 40 - 60 l/min |
| Dead weight (std) | 1619 kg |

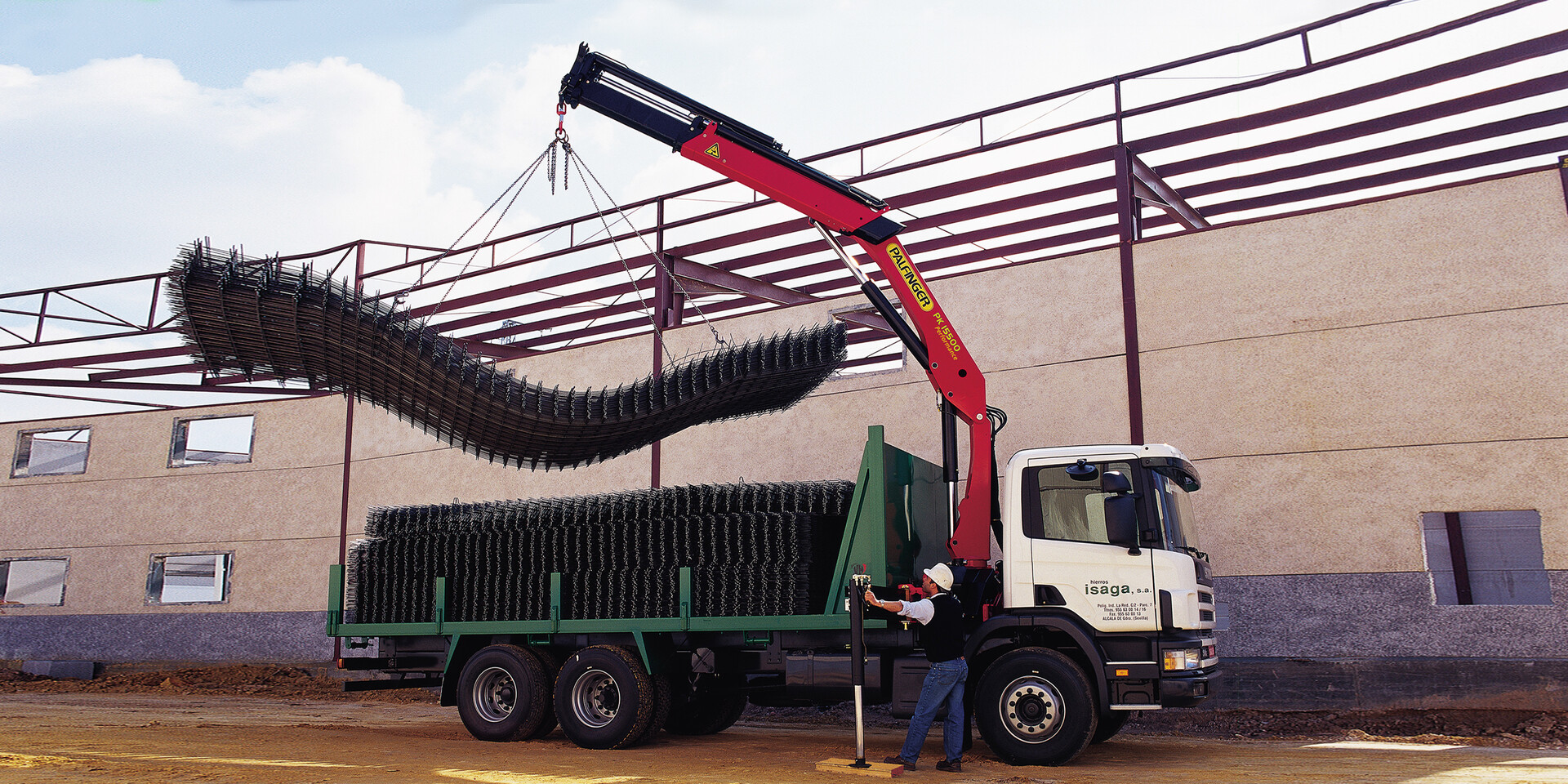

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 14.6 | 6.2 | 420 | 1.8 | 30.0 | 40 - 60 | 1619 | 2200 | 2500 | 810 | |
| 14.1 | 8.1 | 420 | 1.8 | 30.0 | 40-60 | 1769 | 2200 | 2500 | 810 | |
| 13.7 | 10.3 | 420 | 1.8 | 30.0 | 40-60 | 1904 | 2200 | 2500 | 810 | |
| 13.2 | 12.4 | 420 | 1.8 | 30.0 | 40-60 | 2029 | 2200 | 2500 | 810 | |
| 12.8 | 14.5 | 420 | 1.8 | 30.0 | 40-60 | 2170 | 2200 | 2500 | 920 |

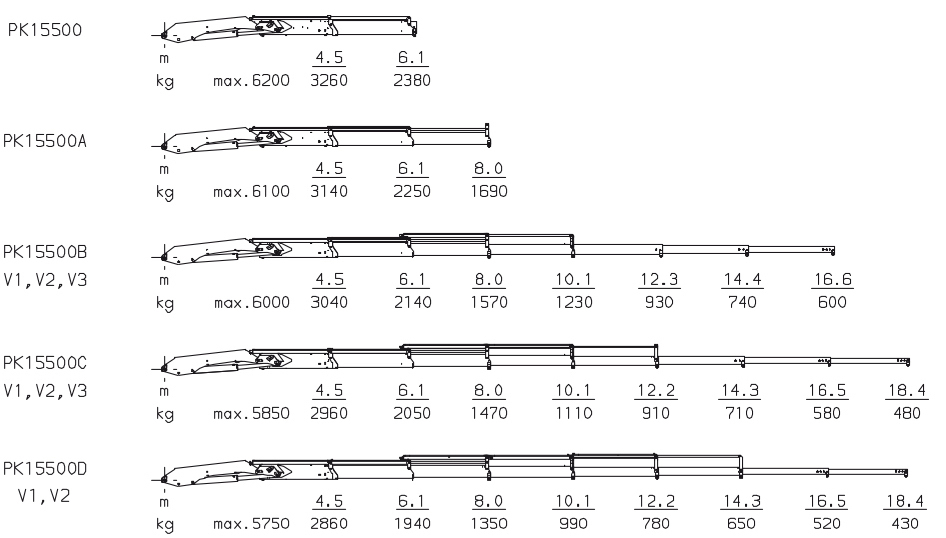

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
