Retractable

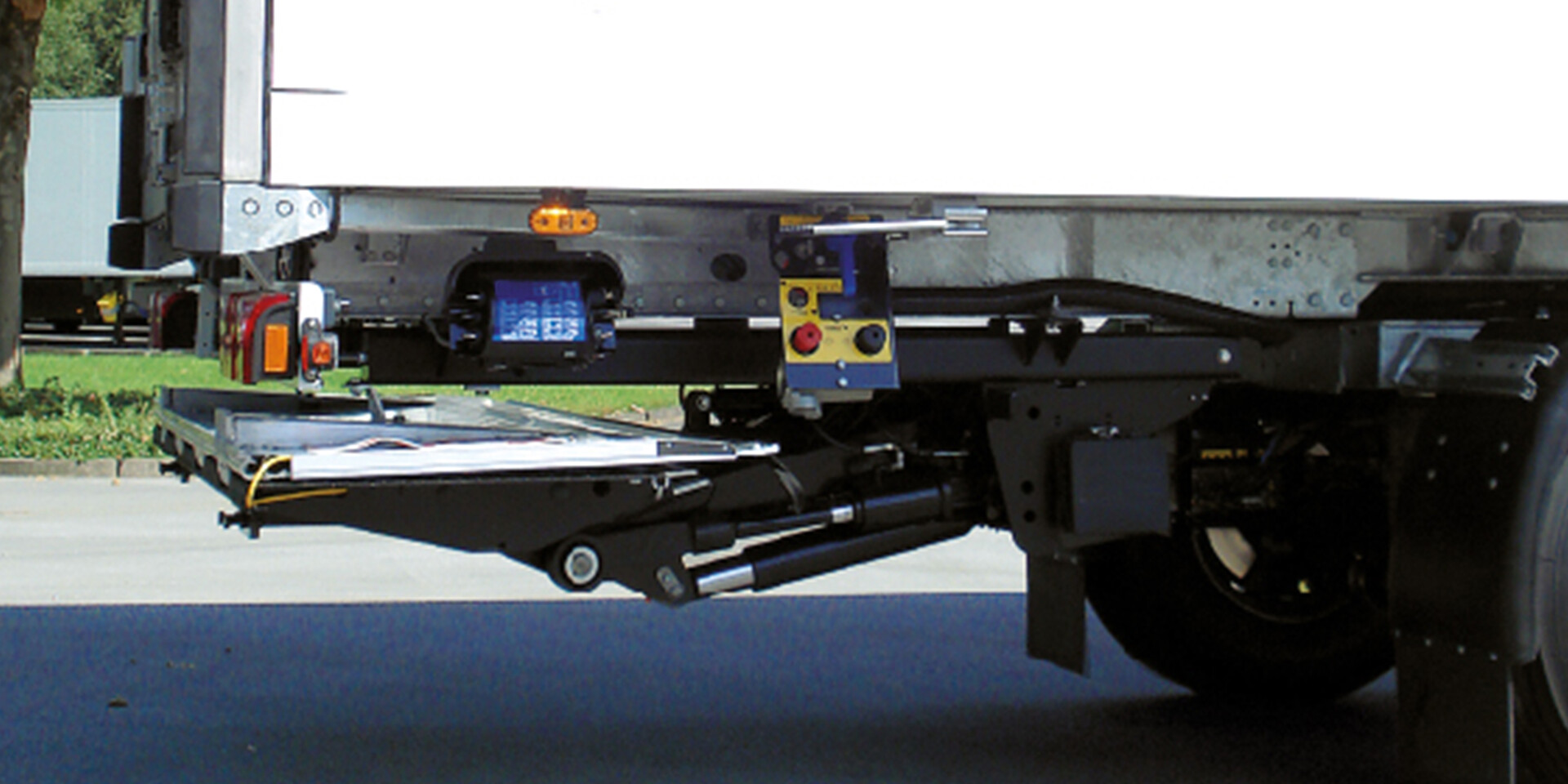

MBB R 1500 S TRAILER
Tail Lift
Innenseite
- Increased anti-slip resistance R13 (for Aluminium platforms)
- Plastic coating for platforms (incl. coated roll-stops) per m²
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
- Aluminium platform with wet-painted rearside, with or without tip (in a RAL colour)
- Aluminium platform anodised (up to 2000mm height)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- R-models with central push-pull cylinder drive (CCD)
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- EasyMove (only in connection with 2x sensor b15)
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Other options and accessories
- Safety gate, P-shape, in RAL-color e.g. 1023, piece, left or right (not for AluLite)
| Lifting capacity | 1500 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder |
| Lift arm pitch /Lift arm length | 820 mm |
| Load centre - lengthwise | 1000 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | 10° to -10 |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alu | 2400 | 1800 | 648 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 1000 | 1500 |
| 1200 | 1250 |
| 1500 | 1000 |
| 1850 | 800 |
| Lift arms (in mm) | 800 | 900 |
| H (max.) Loading height unloaded | 1381 | 1441 |
| H (min.) Loading height loaded | 916 | 1006 |
| F (max.) Middle of main beam to upper edge of loading floor | 770 | 817 |
| K (min.) at dimension F (max.) | 601 | 623 |
| D (min.) Installation space (min.) | 1924 | 2066 |
| F (min.) | 566 | 614 |
| K (max.) at dimension F (min.) | 820 | 907 |
| G (max.) Unloaded (middle of main beam to ground) | 611 | 624 |
| G (min.) loaded | 350 | 392 |
| E (max.) Vehicle frame width (max.) | 1490 | 1490 |
| E (min.) Vehicle frame width (min.) | 1330 | 1330 |
