Knuckle Boom
PK 12.501 SLD 5
PK 12.501 SLD 5

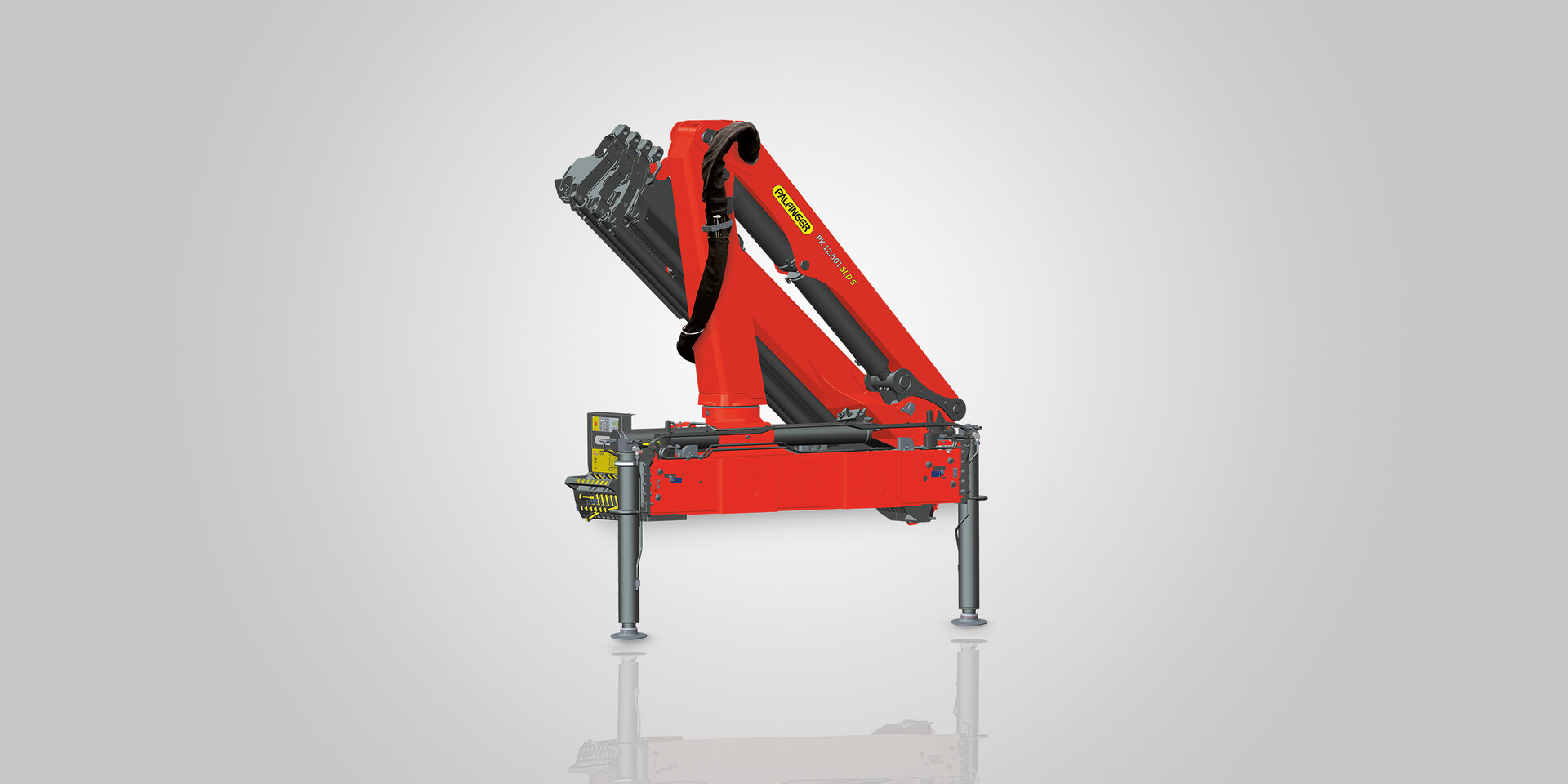

Knuckle Boom Crane
| Max. lifting moment | 82160.0 ft_lbs |
| Max. lifting capacity | 12570 lb |
| Max. hydraulic outreach | 39' 6'' |
| Max. manual outreach | 53' |
| Slewing angle | 400° |
| Slewing torque | 9370.0 ft_lbs |
| Stabilizer spread (std) | 16' |
| Fitting space required (std) | 2' 4'' |
| Width folded | 232 |
| Max. operating pressure | 360 psi |
| Pump capacity | 11.9 - 15.9 gpm |
| Dead weight (std) | 2580 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 11.4 mt |
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 12.0 m |
| Max. manual outreach | 15.9 m |
| Slewing angle | 400° |
| Slewing torque | 1.3 mt |
| Stabilizer spread (std) | 3.3 m |
| Fitting space required (std) | 0.72 m |
| Max. operating pressure | 360 bar |
| Pump capacity | 45 - 60 l/min |
| Dead weight (std) | 1170 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |
Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 82479.0 | - | 400 | 9370 | 5220.0 | 11.9 - 15.9 | 2580 | 83.07 | 94.49 | 27.56 | |
| 79585.0 | 40' | 400 | 9370 | 5220.0 | 11.9 - 15.9 | 2820 | 83.07 | 94.49 | 27.56 | |
| 76691.0 | 46' | 400 | 9370 | 5220.0 | 11.9 - 15.9 | 3040 | 83.07 | 94.49 | 27.56 | |
| 75244.0 | 53' | 400 | 9370 | 5220.0 | 11.9 - 15.9 | 3260 | 83.07 | 94.49 | 27.56 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 11.4 | 5.8 | 400 | 1.3 | 36.0 | 45-60 | 1170 | 2110 | 2400 | 720 | |
| 11.1 | 7.8 | 400 | 1.3 | 36.0 | 45-60 | 1280 | 2110 | 2400 | 720 | |
| 10.8 | 9.9 | 400 | 1.3 | 36.0 | 45-60 | 1380 | 2110 | 2400 | 720 | |
| 10.5 | 12.0 | 400 | 1.3 | 36.0 | 45-60 | 1480 | 2110 | 2400 | 720 |

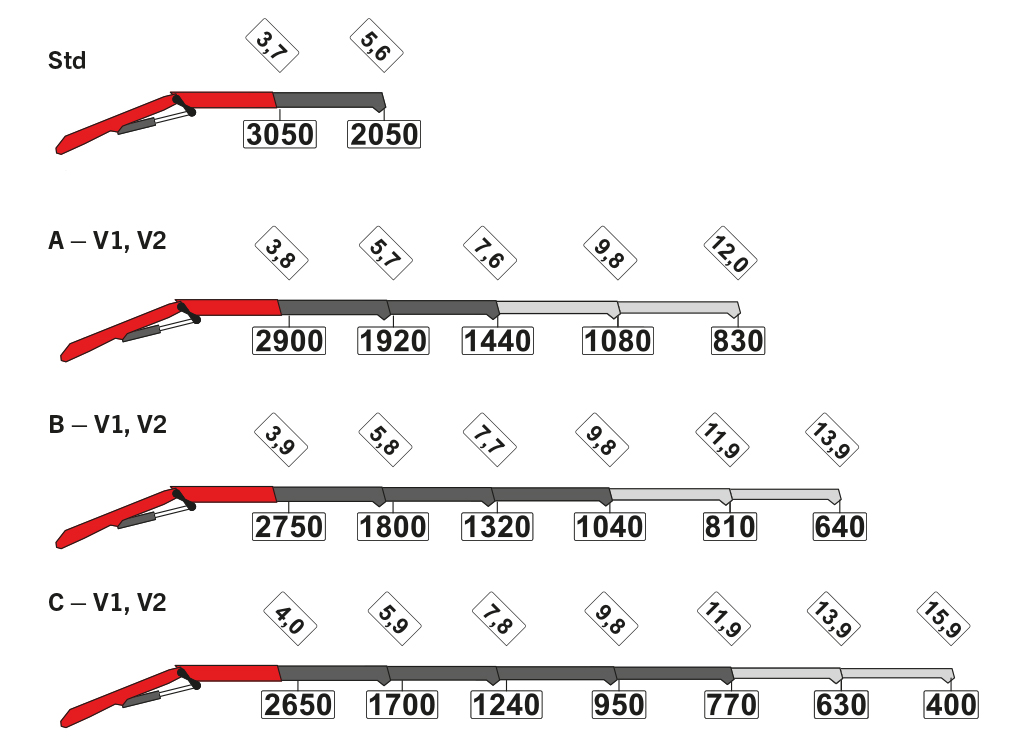

The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
