- PAL Pro 39 Mechanics Truck Ford 2023 F-550 XL Powerstroke Turbo Diesel
PAL Pro 39 Mechanics Truck
Ford 2023 F-550 XL Powerstroke Turbo Diesel
Stock number: MK0199
Specification
Available With - Miller Trailblazer® 330 Gasoline Welder (Kohler) *EXCLUDED FROM PRICING*
- EFI w/Excel™ Power & Battery Assist
- Applications: Construction, Fabrication, Heavy Equipment
- Amperage: 20A - 330A
- Weldable Metals: Aluminum, Stainless Steel, Steel
- Carbon Diameter: 1/4" (6.4 mm)
- DC Current, Max Voltage: 107 VDC
- Portability: Lift Eye (Standard), Optional Cart or Trailer
- Engine: Kohler, 23 hp, Gasoline, 11-gallon tank
- Engine Speeds: Idle 2,400 RPM, Weld 2,400-3,600 RPM (Auto-Speed™)
- Weld Output: CC/CV; Stick/TIG 330A at 100%, MIG/FCAW 325A at 100%
- Auxiliary Power: 10,500W continuous, 12,000W peak
- Sound: 65 dB at idle, 73.5 dB at max weld
- Warranty - 3 Years, Miller's True Blue Warranty
Price:
$ 174,900
+ taxes and licensing
GET YOUR COMPLETE TRUCK RIGHT NOW AND
CONTACT THE SELLER
Offer information
Location details
5115 N Broadway | Wichita | KS, 67219 - United States
Dealer Name
Master Tech Truck and Equipment Availability
Available
Product type
New Stock number
MK0199 Contact person
Galen Esslinger PAL Pro 39 Mechanics Truck

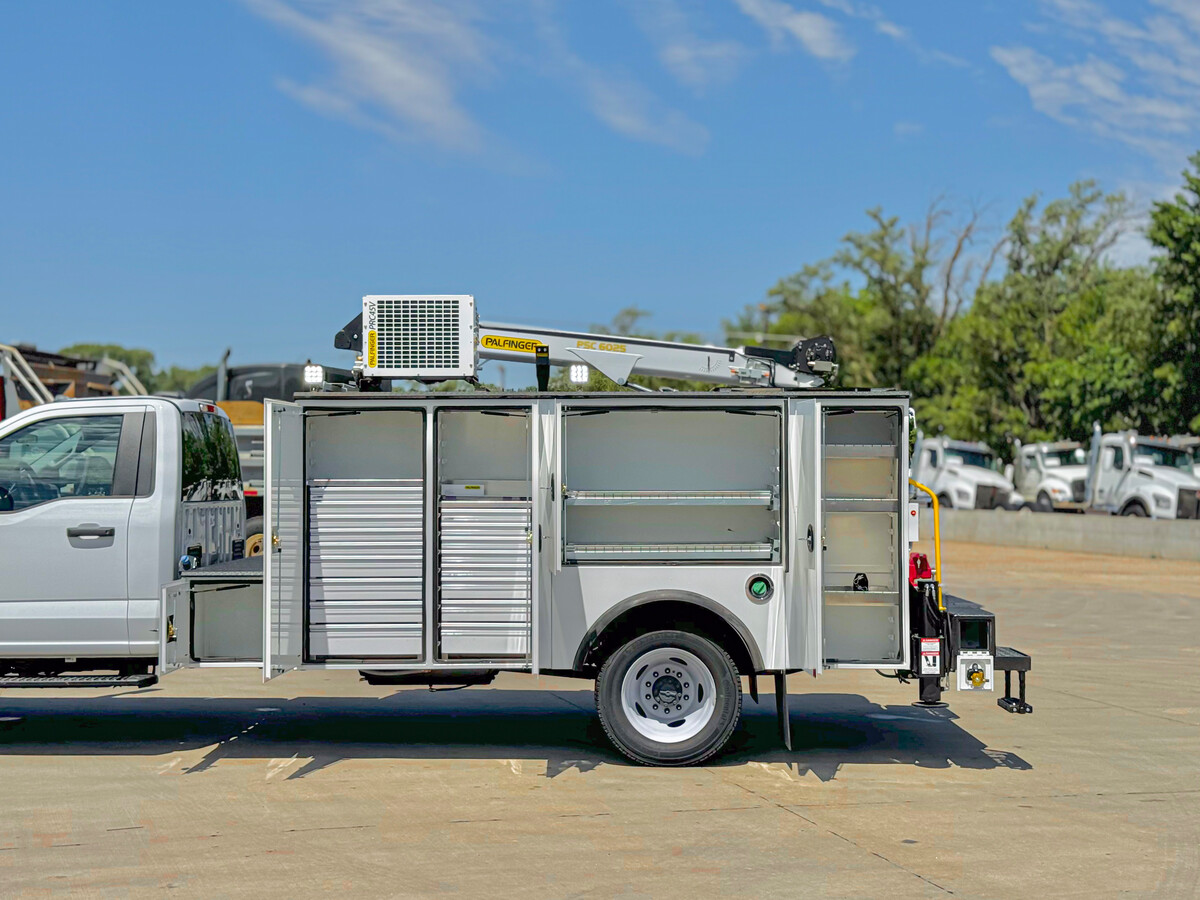

PALFINGER Pro 39 Service Body
- E-Coat corrosion protection.
- 60” driver-side compartments
- 60” raised passenger-side front compartments
- Welding bottle compartment and welder mount (driver-side rear)
- 44” tall passenger-side compartments (horizontal and rear)
- 39,000 ft/lb body rating with C-TECH drawer units
- Interior LED strip lighting; external LED light package with boom tip lights
- 21” workbench bumper with flip-up lid for extra storage
- Vise plate mount with manual master lock system
- Line-X coverage: cargo area, bedsides, compartment tops, workbench, and panels
- Rear control compartment for body operations and hose reel
- Full hydraulic rear outriggers
- 24” auxiliary welder deck with storage and Line-X
- (8) Cargo tie-down rings in the load space
Service crane technical details
PALFINGER PSC 6025 Service Crane
- Maximum Lift Rating: 6,000 lbs
- Crane Rated Lifting Movement: 38,500 ft. lbs
- Maximum Crane Rated Lifting Movement: 43,730 ft. lbs
- Boom Extension: 2 Hydraulics
- Power Outreach: 25' Reach
- Winch Speed: 52 ft./min
- E-Coat Corrosion Protection
- Wireless Remote Control
Compressor technical details
PALFINGER PRC45V Rotary Screw Compressor
The PALFINGER PRC 45V hydraulic-driven rotary screw compressor provides up to 45 CFM at 150 PSI, offering reliable air power for heavy-duty tasks in a compact design.
- Hydraulic-driven rotary screw
- 45 CFM@150psi
Chassis details
2023 Ford F550 XL

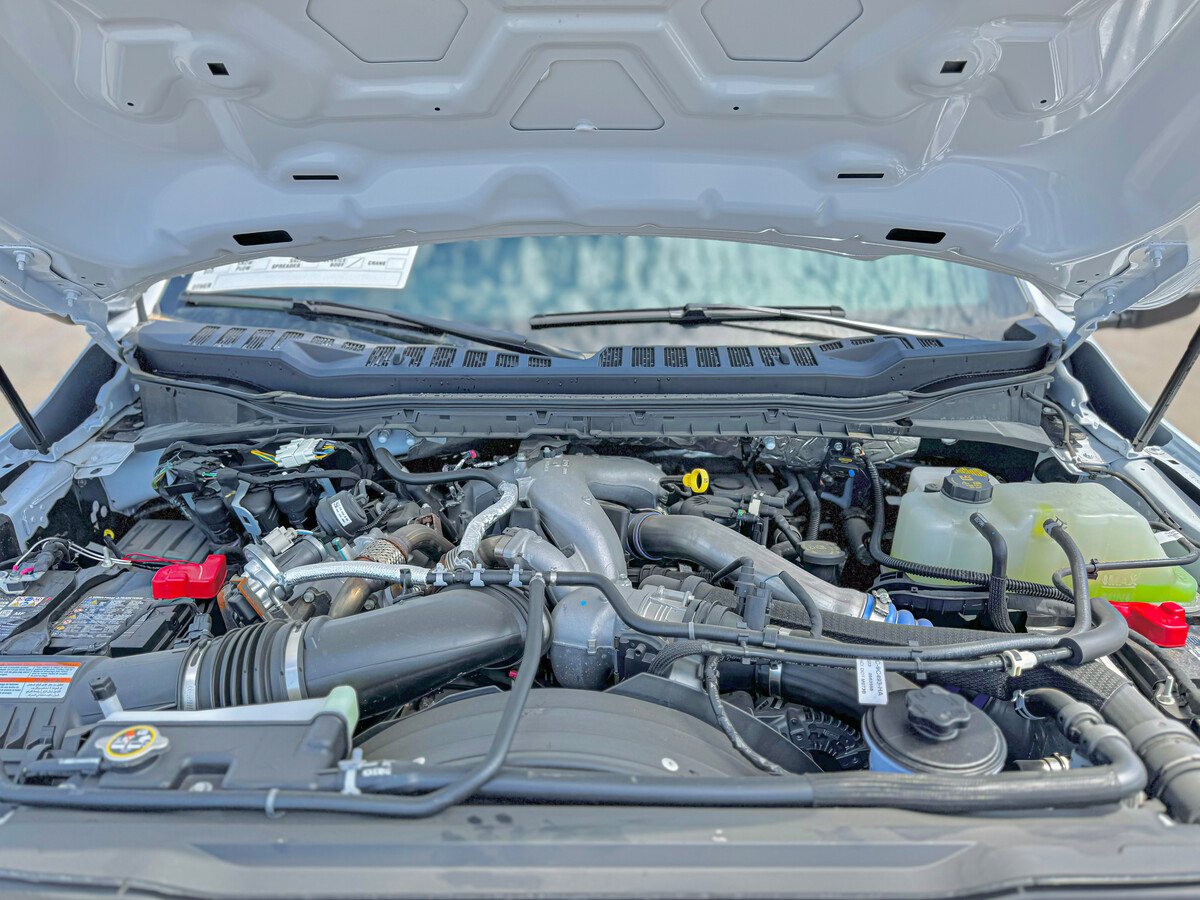

- Engine: Powerstroke 6.7 Turbo Diesel @ 330 HP
- Transmission: 10-Speed Automatic
- Wheels: Steel
- Suspension: Spring
- GVWR: Class 5
- Front Axle Rating: 7,500 lbs
- Rear Axle Rating: 15,500 lbs
- Gear Ratio: 4.30
- Wheelbase: 169''
