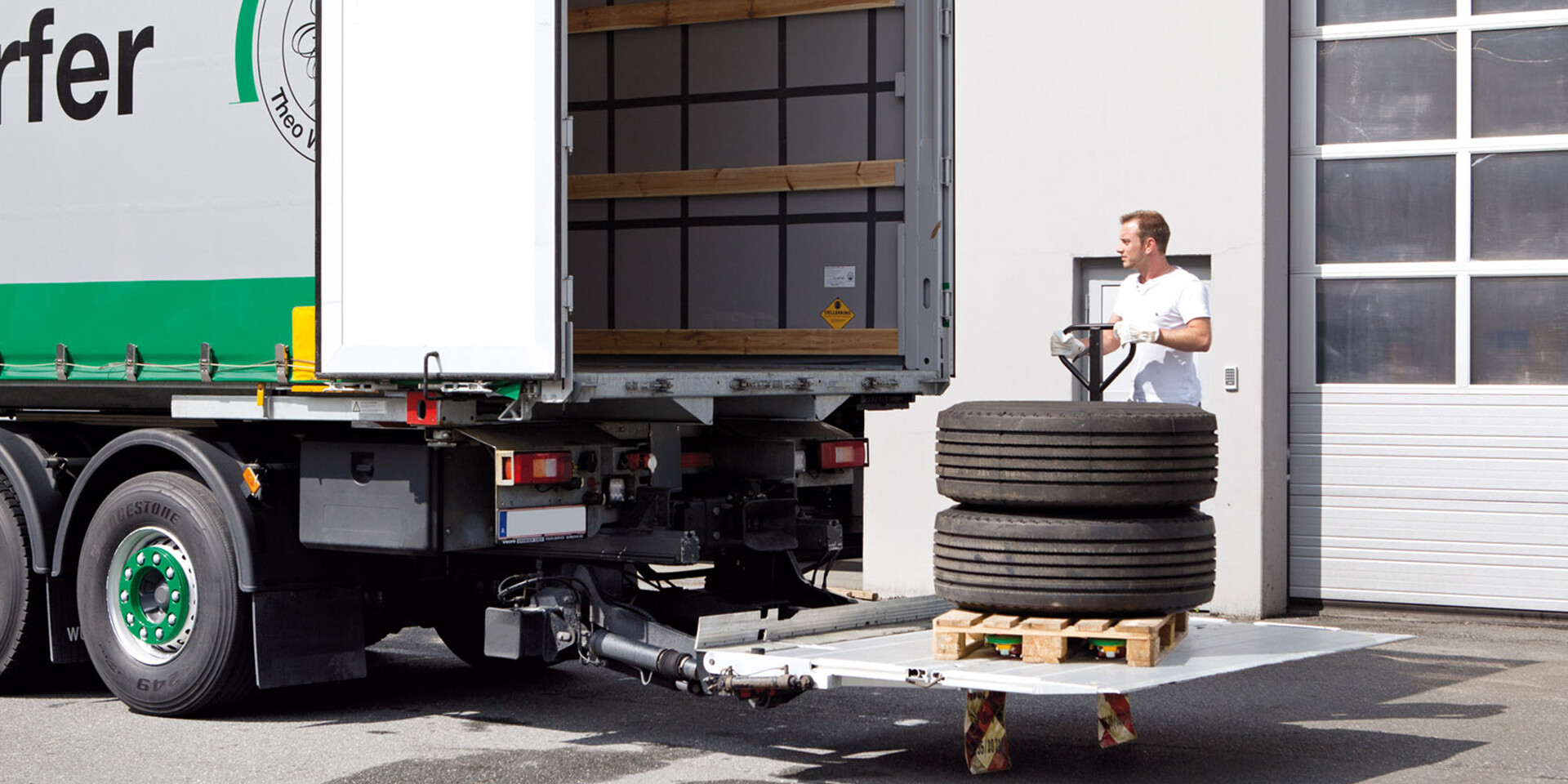

Retractable
MBB R 2000 LM
- Go back
- Home
- Products
- Tail Lifts
- Models
- MBB R 2000 LM
Tail Lift
- 1,500/2,000 kg lifting capacity with four cylinders and 1,000 / 750 mm load distance
- Double-fold aluminum platform, spring-supported
- For short overhangs from 1,510 mm
- Compact design thanks to a torsion-resistant steel moving frame, pre-assembled end beam and welded brackets
- Spring-supported folding section
- Platform package serves as underride guard
- Powerful moving cylinder for horizontal positioning of the tail lift
- Optionally with aluminum guide rails
- Optionally available completely pre-assembled with energy chain
- Optionally with bridging plate in aluminium for espagnolettes
- In combination with a bridging plate, also suitable for vehicles with a BDF body
Lifting capacity | 2000 kg |
Main beam | 180 x 180 mm |
Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder |
Lift arm pitch /Lift arm length | 1300 mm |
Load centre - lengthwise | 750 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | 10° to -10 |
Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
---|---|---|---|---|---|
alualu | 2300 | 1805 | 650 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
a (mm) | Q (kg) |
750 | 2000 |
1000 | 1500 |
1500 | 1000 |
1750 | 850 |
Lifting capacity | 2000 kg |
Main beam | 180 x 180 mm |
Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder |
Lift arm pitch /Lift arm length | 1300 mm |
Load centre - lengthwise | 750 mm |
Load centre - across center | Central 50% of rated load on one side |
Inclination angle of the platform | 10° to -10 |
