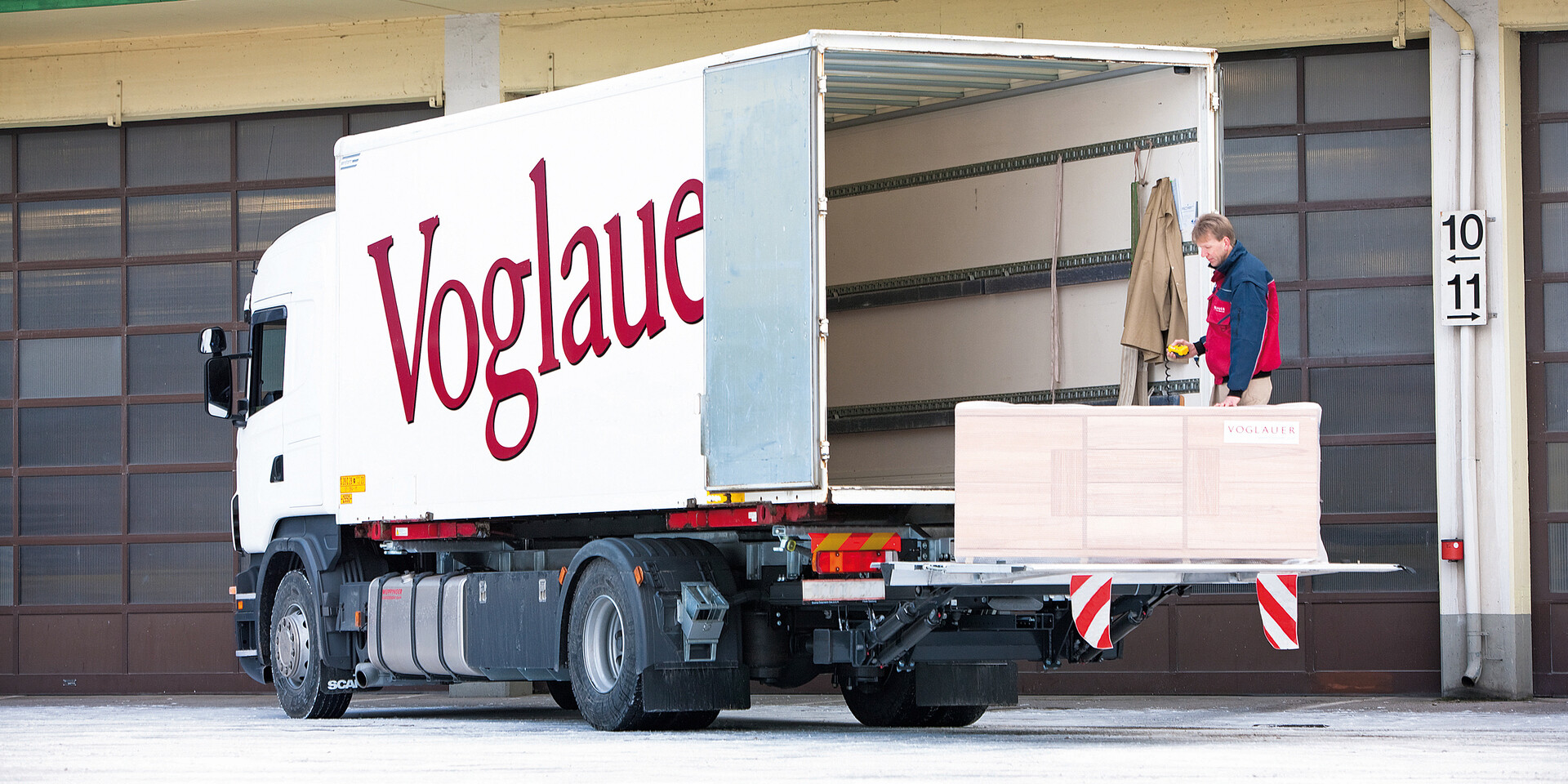

Retractable
MBB R 1500 S
Tail Lift
Platform standard
- AluLite 30/40/40S - platform
- FerroStar - platform
- St/Al - foldable platform
- Ground rollers
- Warning flags red/white or black/yellow
- LED warning lights
- Protection bars for warning lights, pair
- Abrollsicherung
Innenseite
- Increased anti-slip resistance R13 (for Aluminium platforms)
Außenseite
- Steel platform with powder-coated rearside (in a RAL colour)
Lifting gear standard
- Cylinders with protection bellows and tubes
- All steel components in KTL
- R-models with central push-pull cylinder drive (CCD)
- Lifting gear powder-coated (in RAL9011 or NOVA grey)
- Lifting gear micro-galvanised 750er
Operation standard
- Control box with self-closing cover and Z-bracket / EVERY ADDITIONAL CONTROL HAS TO BE SELECTED INDIVIDUALLY!
- 3+1 controls (instead of control box)
- 4-button control planel, slim, for internal installation (as further control device)
- Foot controls integrated in platform (as further control unit)
- 2-button wanderlead hand control w/o plug (as further control device)
- 3-button wanderlead hand control w/o plug (as further control device)
- Radio remote control RCBT (standard set) SN2050730
- Radio remote control Akerström
- Key switch or turning switch, lockable (not possible with MBB 3+1 and MBB 3+3+1 controls)
Electrics / Sensors standard
- 12V or 24V
- Drivers cab switch with indicator OR interface ETMA Code A (V-lifts only cab switch)
- Sensors b13 (lifting gear) and b15L (platform)
- Surcharge for plug-in sensor b15S platform (instead sensor b15L)
- Surcharge for sensor b15L lifting gear (instead sensor b13) = "2x b15"
- Development of a customised program for MBB Control
- EasyMove (only in connection with 2x sensor b15)
- ETMA Code A + B (including plus and minus cable 3,8m)
- Cable for box body light
Other options and accessories
- Seal kit system L with MBB profile, 4 sides
- Safety gate, A-shape A1100, in RAL-color e.g. 1023, piece (not for AluLite)
- Safety gate, P-shape, in RAL-color e.g. 1023, piece, left or right (not for AluLite)
| Lifting capacity | 1500 kg |
| Main beam | 180 x 180 mm |
| Lifting gear hydraulics | 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder |
| Lift arm pitch /Lift arm length | 750 / 1300 / 1480 mm |
| Load centre - lengthwise | 1000 mm |
| Load centre - across center | Central 50% of rated load on one side |
| Inclination angle of the platform | 10° to -10 |
| Platform type | Platform width | platform height | Dead Weight | Dead Weight | |
|---|---|---|---|---|---|
| alualu | 2400 | 1805 | 665 | - | |
| steelalu | 2400 | 1800 | 770 | - |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| a (mm) | Q (kg) |
| 1000 | 1500 |
| 1200 | 1250 |
| 1500 | 1000 |
| 1850 | 800 |
| Lift arms (in mm) | 700 | 800 | 900 | 1000 | 1100 |
| H (max.) Loading height unloaded | 1200 | 1428 | 1548 | 1651 | 1793 |
| H (min.) Loading height loaded | 883 | 916 | 1006 | 950 | 1023 |
| F (max.) Middle of main beam to upper edge of loading floor | 650 | 817 | 924 | 977 | 1056 |
| K (min.) at dimension F (max.) | 618 | 601 | 623 | 721 | 783 |
| D (min.) Installation space (min.) | 1800 | 1800 | 1900 | 1900 | 1900 |
| F (min.) | 508 | 566 | 614 | 569 | 608 |
| K (max.) at dimension F (min.) | 726 | 820 | 907 | 1040 | 1132 |
| G (max.) Unloaded (middle of main beam to ground) | 550 | 611 | 624 | 674 | 737 |
| G (min.) loaded | 375 | 350 | 392 | 381 | 415 |
| E (max.) Vehicle frame width (max.) | 920 | 920 | 920 | 920 | 920 |
| E (min.) Vehicle frame width (min.) | 645 | 645 | 645 | 645 | 645 |
