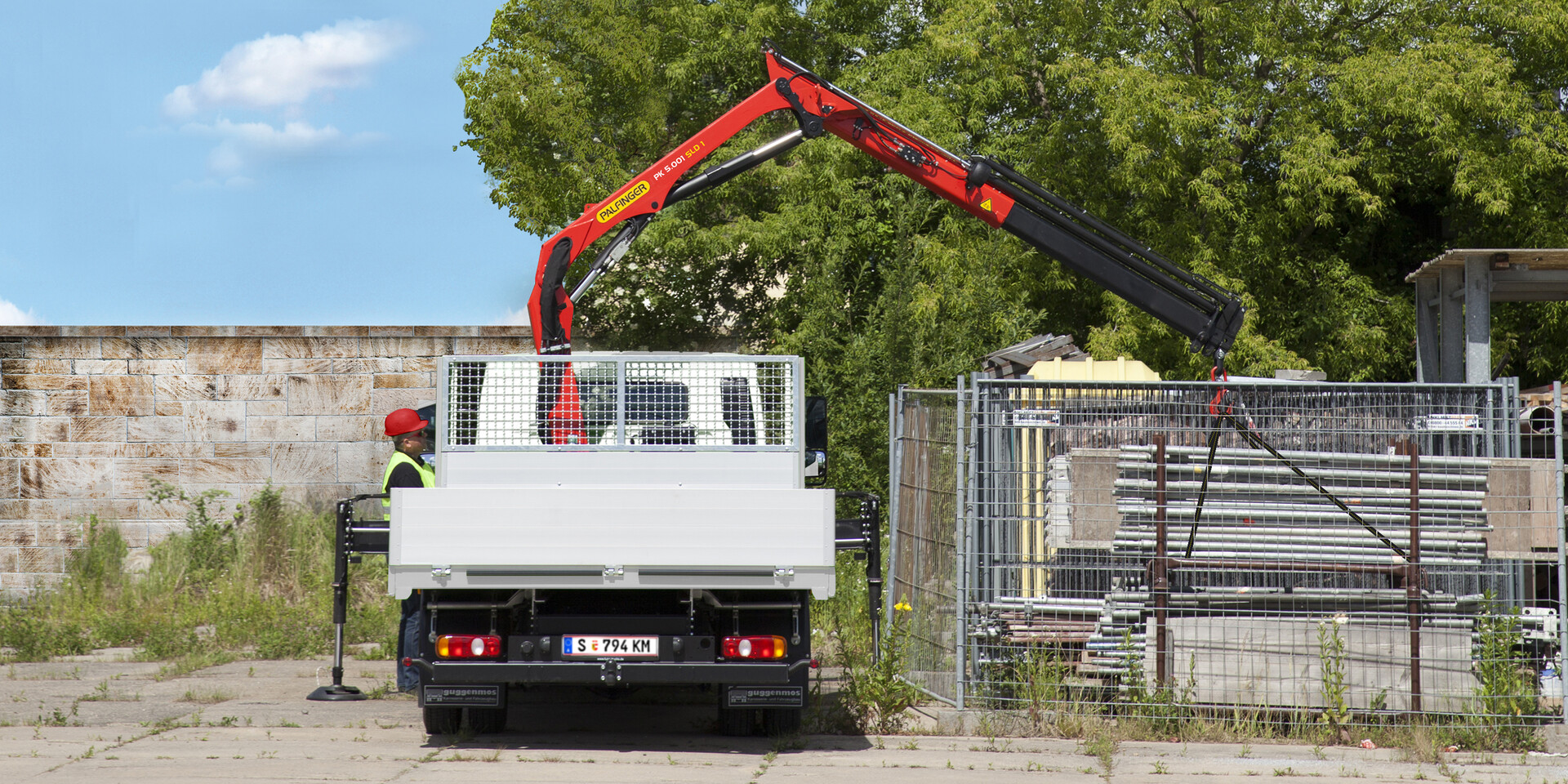

PK 5.001 SLD 1
- More power in the hook due to Single Link
- Shorter load cycle times due to High Speed Extention
- Higher payloads due to intelligent lightweight design
![](https://assets.palfinger.com/cache-buster-1601458159/importdata/product-data/loader-cranes/highlights/image-thumb__7597__highlight-slider-img/return-oil-utilisation.jpg)
High Speed Extension
The High Speed Extension is a standard feature on PALFINGER loader cranes. Also referred to as Return Oil Utilization, this feature is a regenerative hydraulic circuit for the extension booms. It speeds up the boom extend and retract functions by up to 30%.
Max. lifting moment | 4.6 mt |
Max. lifting capacity | 3300 kg |
Max. hydraulic outreach | 11.1 m |
Max. manual outreach | 12.7 m |
Slewing angle | 400° |
Slewing torque | 0.6 mt |
Stabilizer spread (std) | 29 m |
Fitting space required (std) | 0.66 m |
Width folded | 2.10 m |
Max. operating pressure | 330 bar |
Pump capacity | 15 - 20 l/min |
Dead weight (std) | 695 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|
|
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|---|

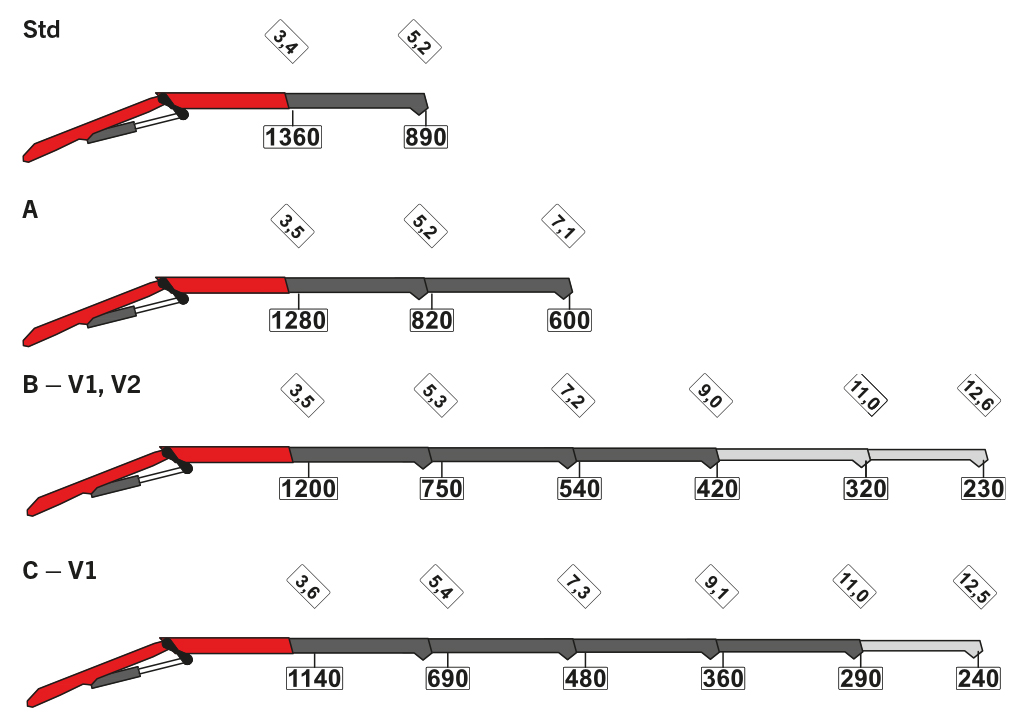

Std | 4.6 | 5.3 | 400 | 0.6 | 33.0 | 15-25 | 695 | 1830 | 2100 | 660 |
A | 4.4 | 7.2 | 400 | 0.6 | 33.0 | 15-25 | 765 | 1830 | 2100 | 660 |
B | 4.3 | 9.2 | 400 | 0.6 | 33.0 | 15-25 | 830 | 1845 | 2100 | 660 |
C | 4.1 | 11.1 | 400 | 0.6 | 33.0 | 15-25 | 890 | 1885 | 2115 | 660 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
