PK 2900 High Performance
Versatile small cranes with optimised power-to-weight ratio for lightweight commercial vehicles.
- High outreach with up to four hydraulic extensions
- Optimised dead weight
- Small overall width for use in inner city areas
- High value retention thanks to coating technology
Max. lifting moment | 2.5 mt |
Max. lifting capacity | 990 kg |
Max. hydraulic outreach | 6.4 m |
Slewing angle | 370° |
Slewing torque | 0.3 mt |
Stabilizer spread (std) | 3.3 m |
Fitting space required (std) | 0.45 m |
Width folded | 0.77 m |
Max. operating pressure | 250 bar |
Pump capacity | 10 l/min |
Dead weight (std) | 374 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
|
|
|
|
|
|
|
|
|
|
|
---|---|---|---|---|---|---|---|---|---|---|
Std | 2.5 | 4.0 | 370 | 0.3 | 25.0 | 10 | 374 | 1590 | 1600 | 435 |
A | 2.4 | 5.2 | 370 | 0.3 | 25.0 | 10 | 406 | 1590 | 1600 | 435 |
B | 2.3 | 6.4 | 370 | 0.3 | 25.0 | 10 | 434 | 1590 | 1600 | 470 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.

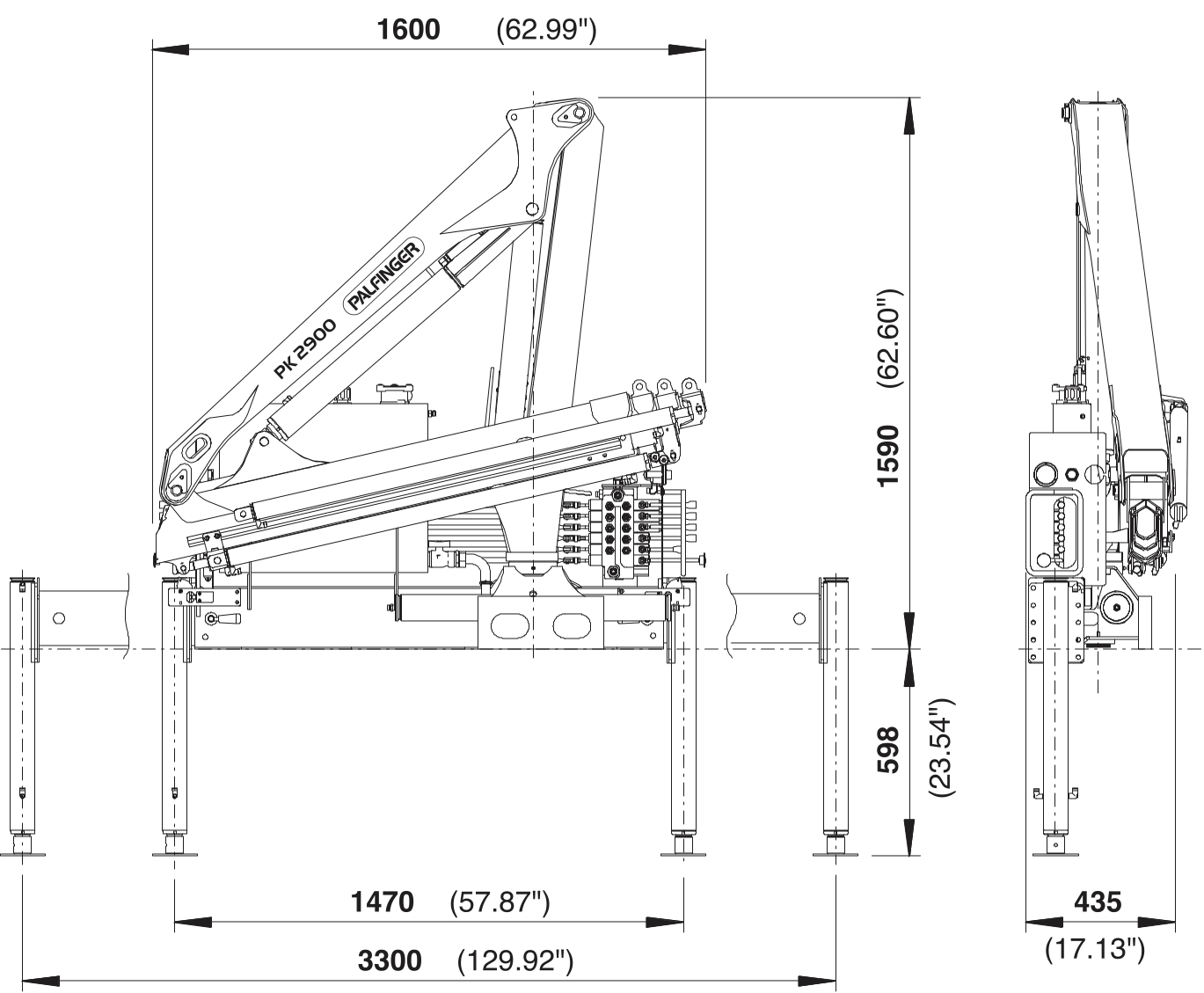

![](https://assets.palfinger.com/cache-buster-1502113691/importdata/product-data/loader-cranes/images/loader-cranes/PK%202900%20S027-SK-A/pk2900_armdrawing.jpg)
