TELESCOPIC
Versatility at all stages

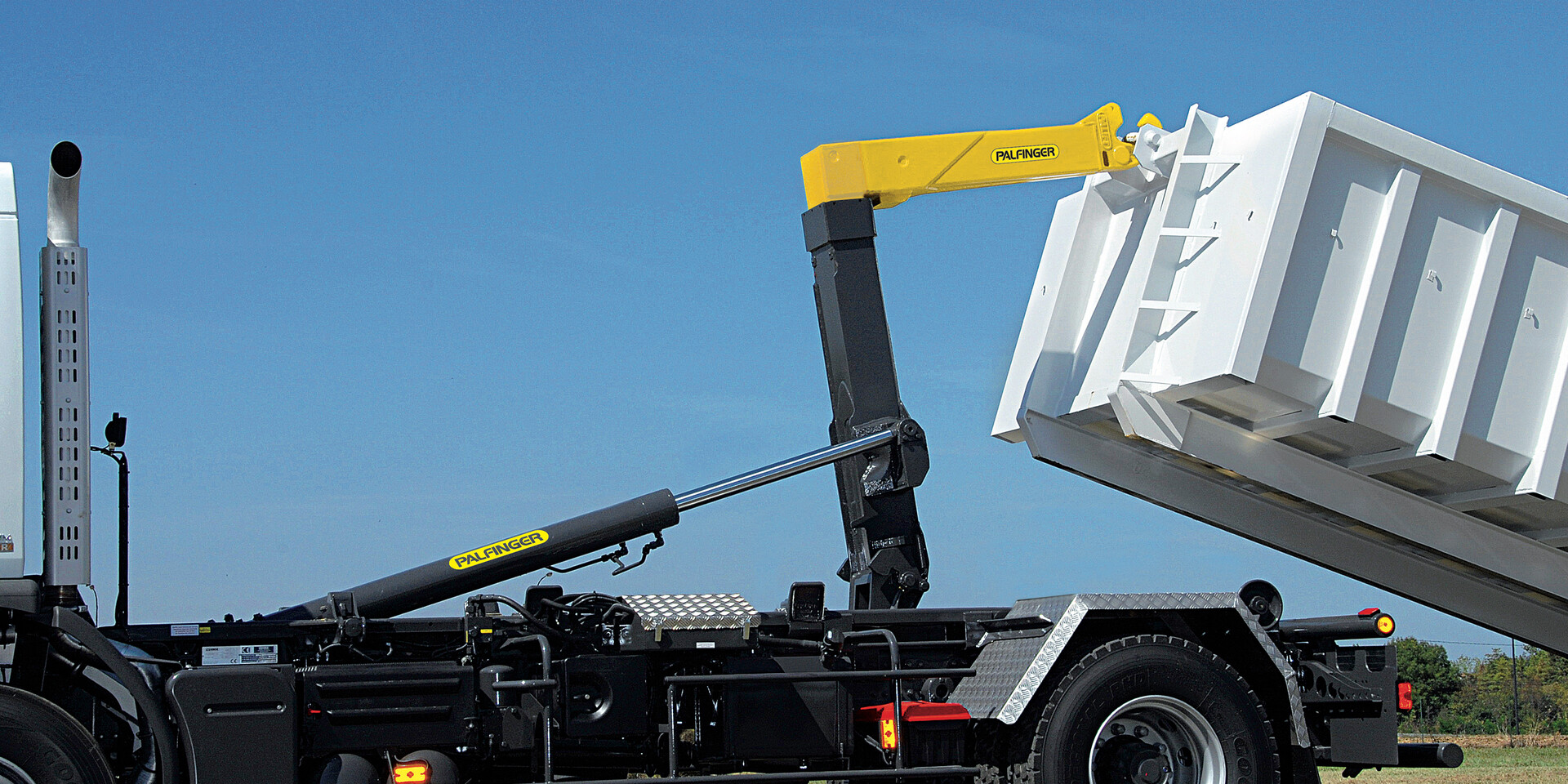

The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s very low transport height and light weight contribute to the assets to maximize application options safely.
The T 13 can be installed on chassis from 14 to 17 t and is capable of handling containers up to 13 t in loading, unloading, trailer transfer and tipping.
Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet.
Thanks to a low transport height, the T 13 enables you to transport larger containers to increase the available volume. In addition, its light weight optimizes the available payload. Both benefits reduce the number of round trips required to complete a job, saving time and money.
ADVANTAGES of the TELESCOPIC category
- Covers the widest range of container lengths
- Low transport height
- Easy to use and service
POP - PALFINGER Origin Protection
The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).
T 13
Market standards : NF - DIN
Hookheight (mm) : 1425-1570
Length (mm) : 3800-4050-4300-4450-4750-4900-050-300-5600
Container min. length : 3000 mm
Container max. length : 6600 mm
Rail width : 1060 mm
GVW truck : 14-17 t
Average weight : 1560 kg
Transport height : 220 mm
Tipping angle : 47-53°
