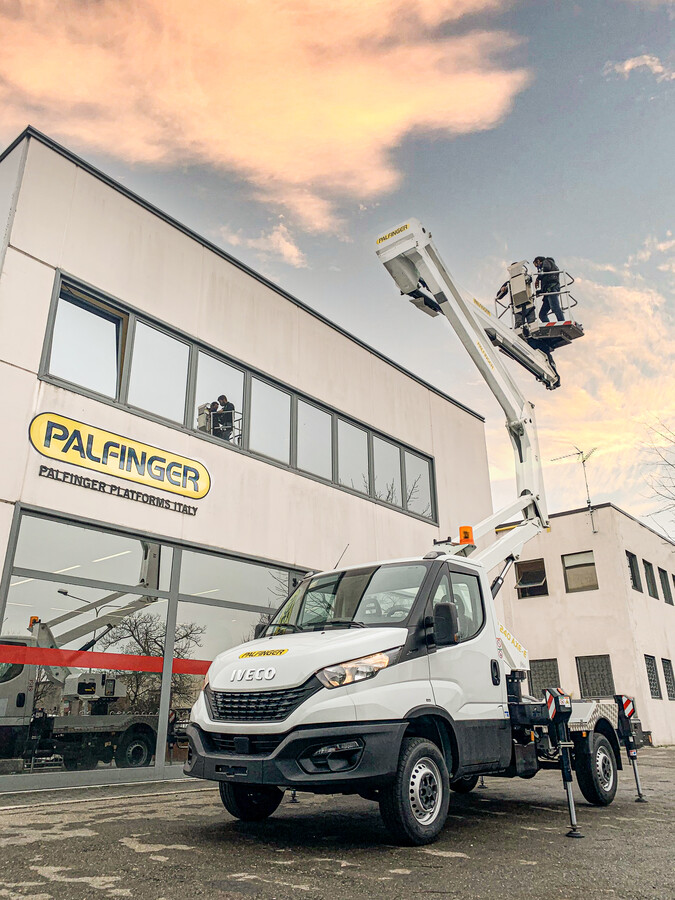

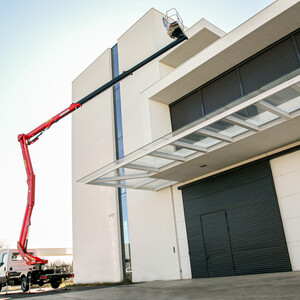

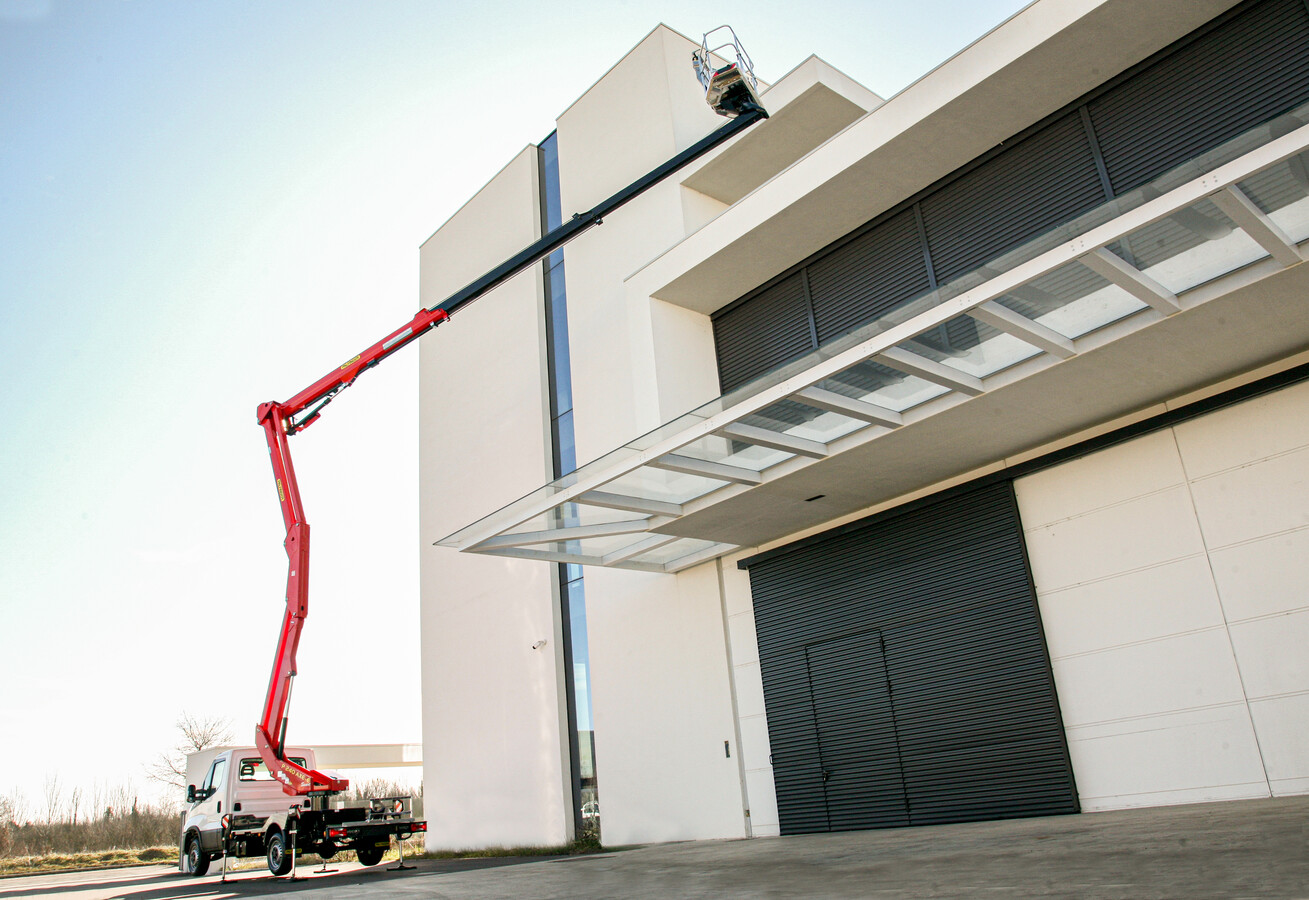

P 240 AXE-E Smart Plus
P 240 AXE-E Smart Plus
NEW FEATURE: AUTOMATIC STABILIZATION

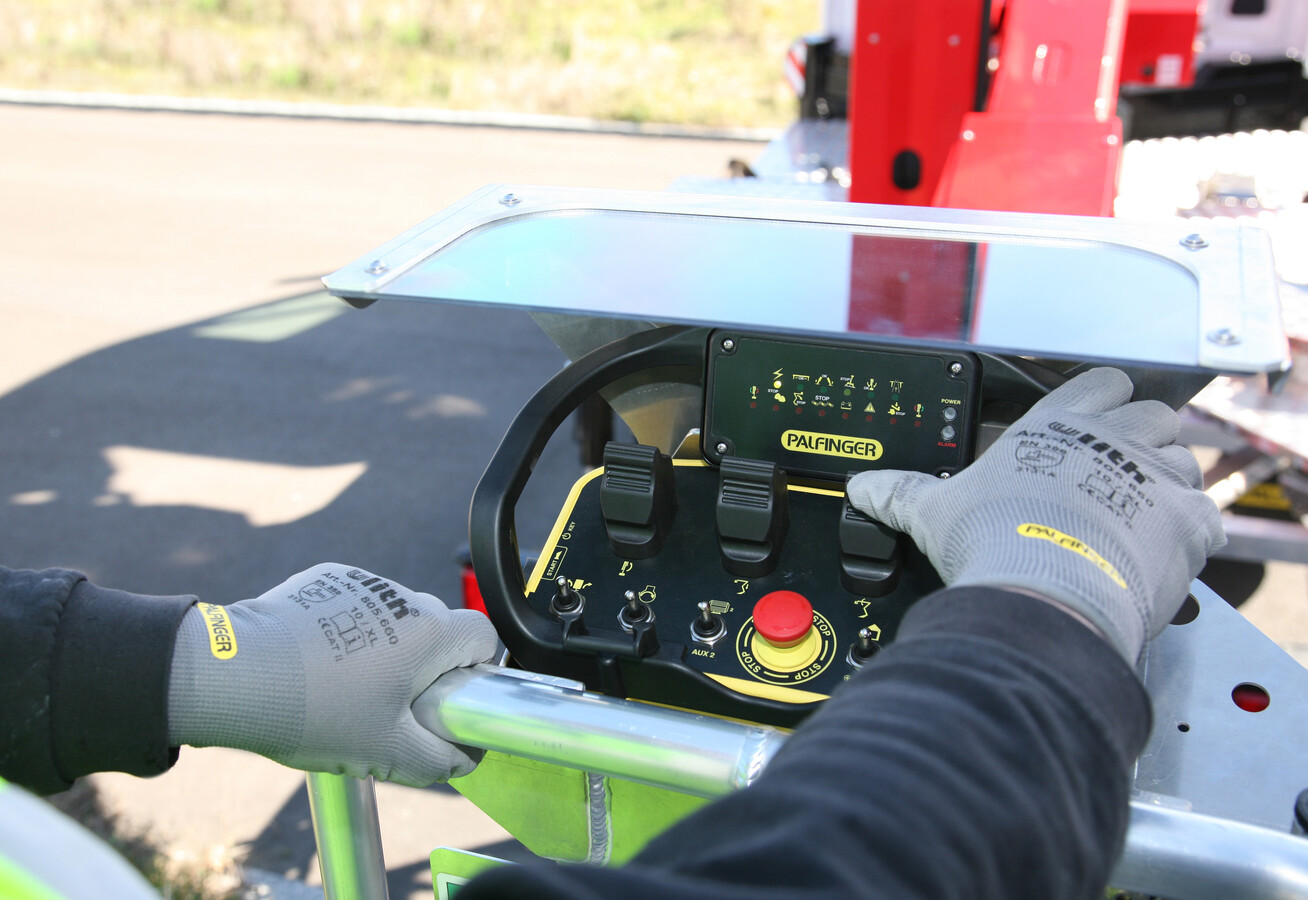

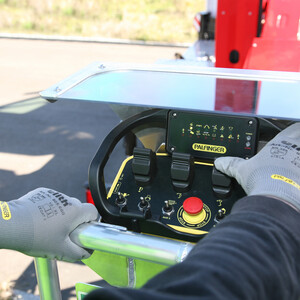

The automatic stabilization is a brand-new feature that allows the operator to set-up the access platform quickly and easily at the desired work place with automatic levelling. This can be done via the console installed on the side of the vehicle or directly from the control panel in the basket.
Before using the automatic stabilization, the operator decides whether to extend both outrigger arms to required position. The automatic stabilization cycle continues until two conditions are satisfied: The measured inclination of the frame fits with the set value in the inclinometer and both axes are not any longer in contact with the ground. After that, the process stops automatically, and safe work can begin.
With this feature, road inclinations can be easily and safely compensated. Longitudinally uphill 3° (~ 5%), longitudinally downhill around 4.5° (~ 8%) and crosswise around 3° (5%). If the vehicle is approaching tilt limits, both lengthway and crossway function are automatically being blocked.
| Max. height of work | 22.9 m |
| Max. basket floor height | 20.9 m |

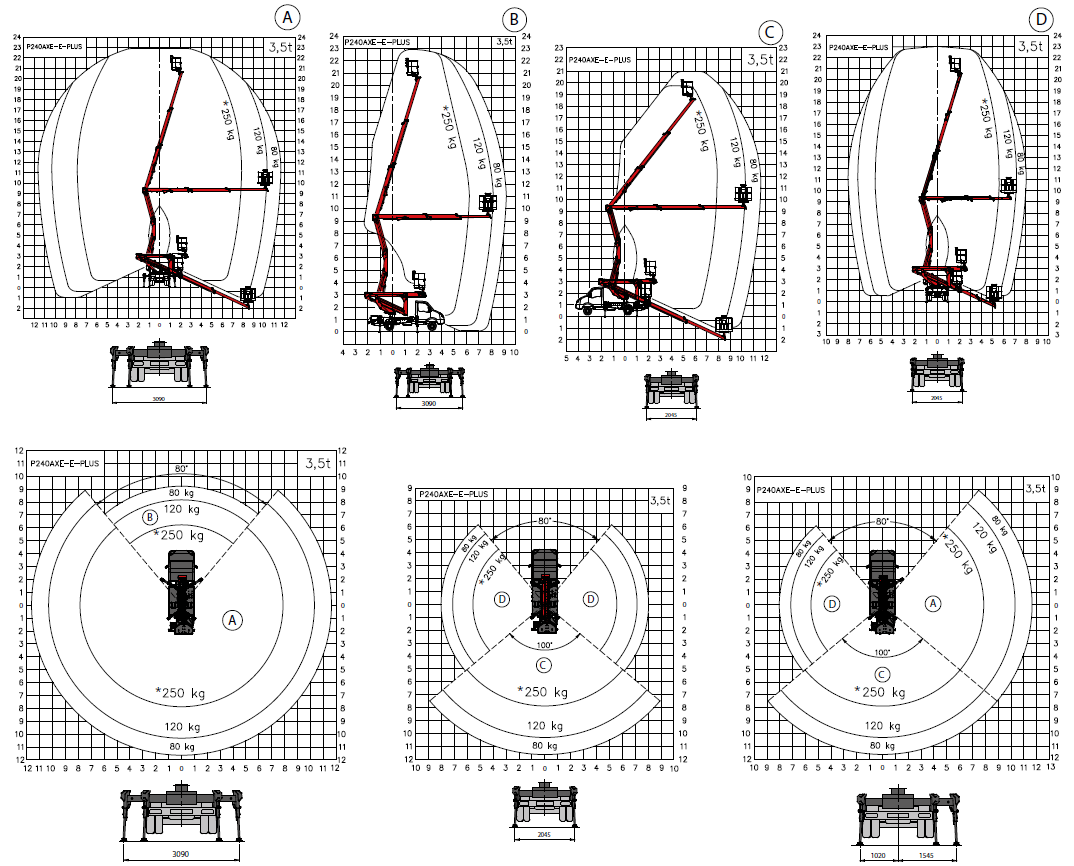

| Max. horizontal outreach /with basket load | 11.6 |
| Slewing range of basket | 90° + 90° |
| max. basket load | 250 kg |
| Workman basket - breadth / length / height | 1.4 x 0.84 x 1.1 |
| Angle of main boom | -25° a + 80° |
| Rotation angle of turntable | 370° |

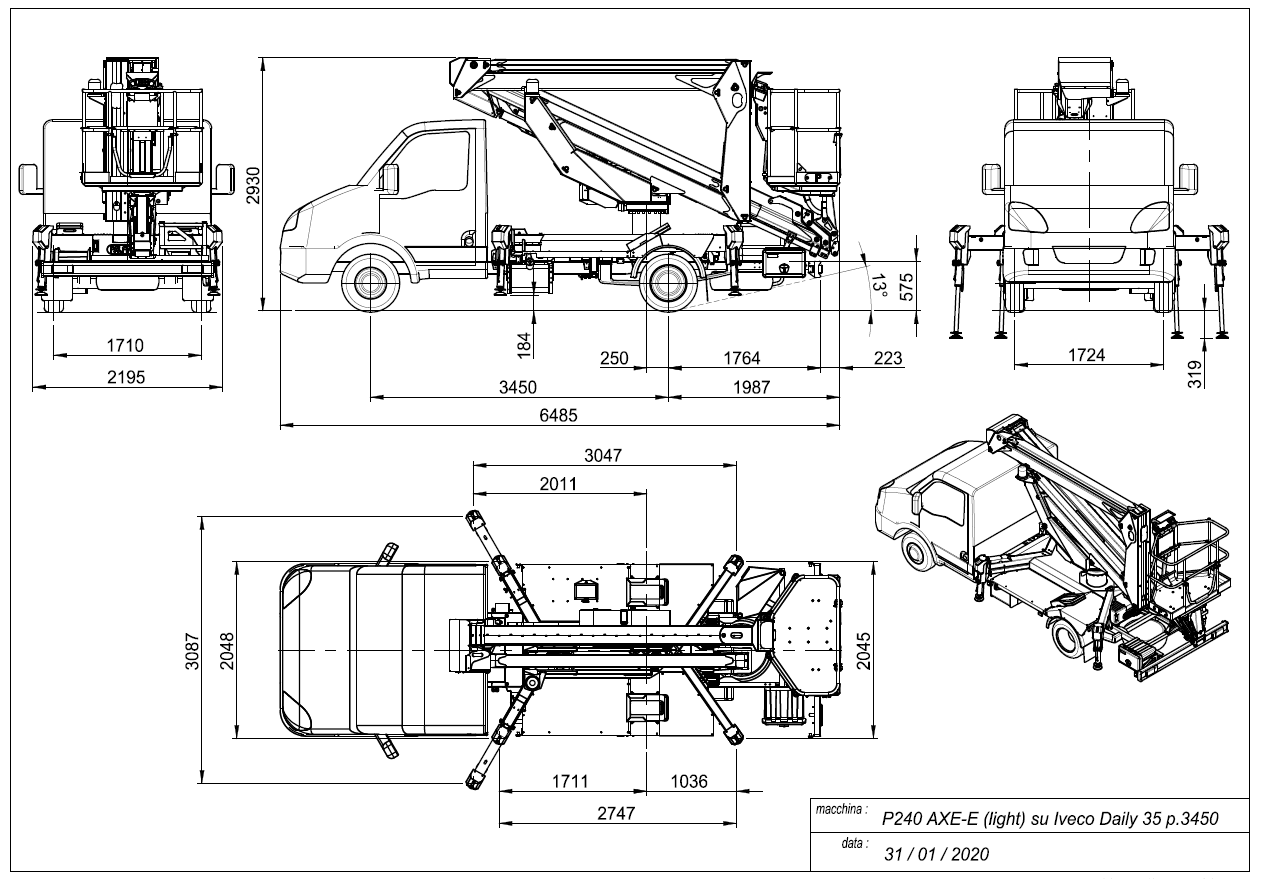

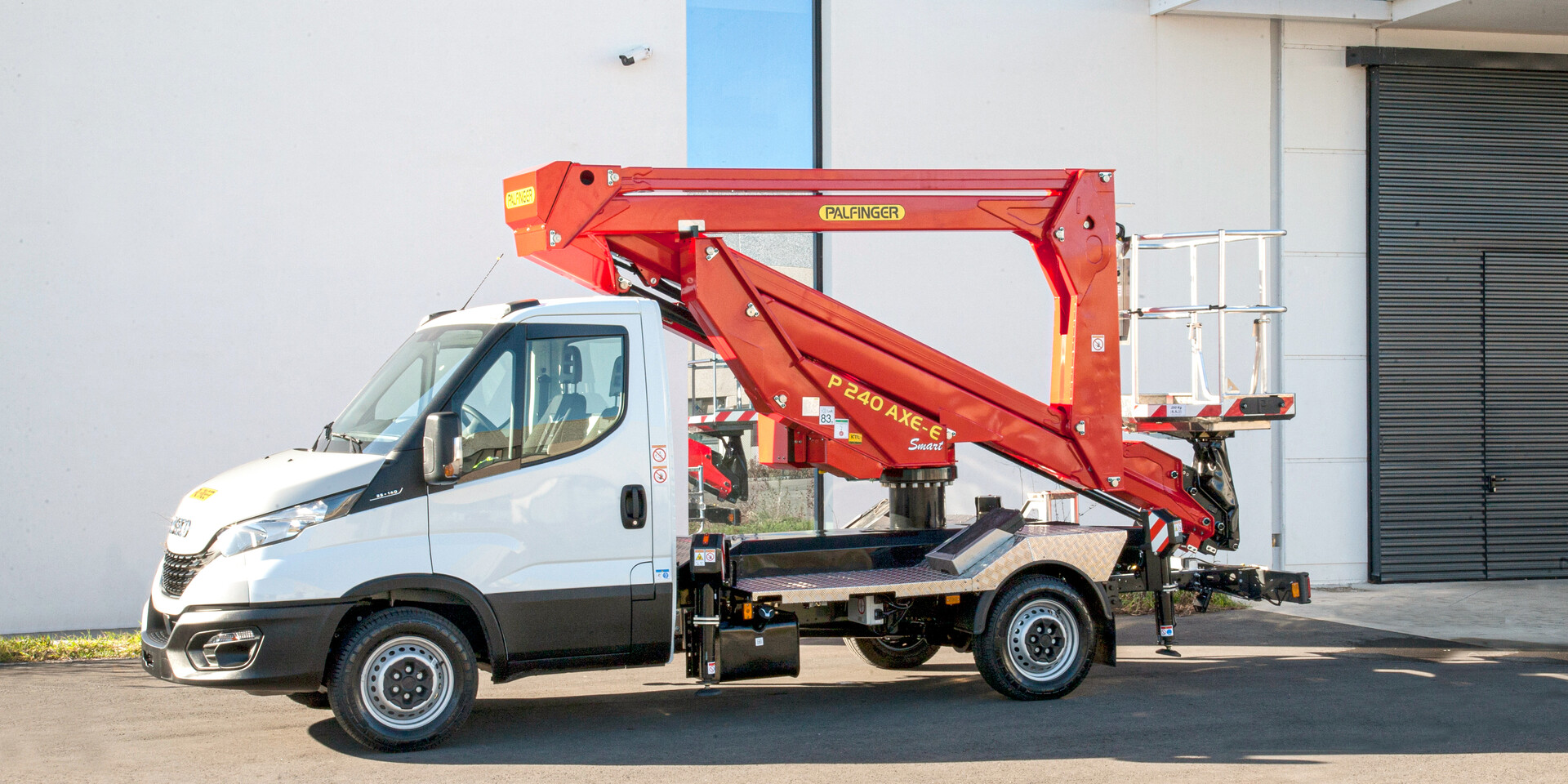

| Height in transport position | 2.93 m |
| Width in transport position | 2.19 m |
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
A possible 2% tolerance is contingent on structural components depending on chassis and equipment
