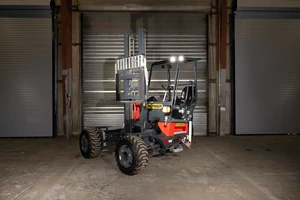

FHC 55 4W—Center Seat Series
Truck Mounted Forklift
Narrow roadways, paths, and openings present unique challenges for delivering long loads like lumber. To reach the designated delivery location, an agile 4-way directional forklift that can travel sideways with the load must be used.
The 4-way mode selection is as simple as flipping a switch, and you're ready to travel sideways to your final delivery point within seconds. For additional safety in standard and 4-way mode, the FHC 55 4W is equipped with independent brakes on all three wheels.
- This also is available in a side-seat model — FHS 55 4W.
Main Frame Channels
The sturdy main frame uses a Standard 4-in. channel section and roller bearings, which enables the use of larger diameter and wider mast carriage rollers, greatly reducing loading and wear.
Carriage Cylinders
Carriage cylinders are recessed below the mast carriage, providing a lower center of gravity for the machine and added protection from damage caused by falling debris.
Corrosion Resistance and Guarding
- Composite body panels
- KTL-treated and powder-painted chassis
- Galvanized steps, stabilizers, wheel motor guards, transport chain hanger brackets
- Dacrotized mast chains
- Zinc-coated mast and chain rollers
- Wheel rim valve stem guards
- Protruding wrap-around chassis
| Capacity @ 24'' load center | 5500 lbs |
| Horsepower | 56 hp |
| Engine | Diesel |
| Engine emission compliance EPA | TIER 4 Final |
| Maximum engine RPM | 2700 rpm |
| Electrical system | 12 Volt |
| Drive wheels (All with brakes) | 3 |
| Steering | Hydrostatic |
| Tire type: front | 31"x13"-16 1/2" 10-PLY (Skid steer) |
| Tire type: rear | 31"x15 1/2"-15" 8-PLY (Tractor grip) |
| Tire outside diameter (Front / Rear) | 31"/31" |
| Tire width (Front / Rear) | 13"/15 1/2" |
| Maximum speed | 7 mph |
| Maximum gradability | 30% (4-way 15%) |
| Turning radius | 81" |
| Unladen weight excluding forks | 6997 lbs | 7117 lbs |
| Working pressure for attachments | 3000 psi |
| Tilt of mast (Forward / Back) | 10⁰/ 8⁰ |
| Tilt of fork carriage (Forward / Back) | N/A |
| Sideshift | 6" |
| Fork section: Lumber (L x W x H) | 48" x 6" x 2" |
| Mast carriage travel | 25 1/4" |
| Reach across truck bed | N/A |
| Counter weights | No |
| Height to top of canopy | 101" |
| Fork carriage width | 47 1/4" (CLASS IV 25" OPENING) |
| Frame opening | 58" |
| Overall width | 101 1/2" | 101" (4-way) |
| Overhang | 72" |
| Wheel base | 71 1/2" |
| C. OF. G. from fork face | 22 1/4" |
| Lift height | 120" | 144" |
| Mast height collapsed | 88 3/4" | 100 3/4" |
| Mast height raised | 148 3/4" | 172 3/4" |
| Ground clearance | 11" |
| Face of fork to center of front tire | 9" |
| Ansi standard | B56.14 |
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
| Capacity @ 24'' load center | 2500 kg |
| Horsepower | 56 hp |
| Engine | Diesel |
| Engine emission compliance EPA | TIER 4 Final |
| Maximum engine RPM | 2700 rpm |
| Electrical system | 12 Volt |
| Drive wheels (All with brakes) | 3 |
| Steering | Hydrostatic |
| Tire type: front | 787.4 mm x 330.2 mm - 419.1 mm 10-PLY (Skid steer) |
| Tire type: rear | 787.4 mm x 393.7 mm - 381 mm 8-PLY (Tractor grip) |
| Tire outside diameter (Front / Rear) | 790 mm / 790 mm |
| Tire width (Front / Rear) | 330 mm / 395 mm |
| Maximum speed | 11 kph |
| Maximum gradability | 30% (4-way 15%) |
| Turning radius | 2060 mm |
| Unladen weight excluding forks | 3173 kg | 3228 kg |
| Working pressure for attachments | 210 bar |
| Tilt of mast (Forward / Back) | 10⁰/ 8⁰ |
| Tilt of fork carriage (Forward / Back) | N/A |
| Sideshift | 150 mm |
| Fork section: Lumber (L x W x H) | 1220 mm x 150 mm x 50 mm |
| Mast carriage travel | 640 mm |
| Reach across truck bed | N/A |
| Counterweights | No |
| Height to top of canopy | 2565 mm |
| Fork carriage width | 1200 mm (CLASS IV 635mm OPENING) |
| Frame opening | 1475 mm |
| Overall width | 2578 mm | 2565 mm (4-way) |
| Overhang | 1830 mm |
| Wheel base | 1815 mm |
| C. OF. G. from fork face | 565 mm |
| Lift height | 3.05 m | 3.66 m |
| Mast height collapsed | 2255 mm | 2560 mm |
| Mast height raised | 3780 mm | 4390 mm |
| Ground clearance | 280 mm |
| Face of fork to center of front tire | 230 mm |
| Ansi standard | B56.14 |
Weights will change depending on wheel and fork options. Weights listed do not include forks or accessories.
- Speed steer with simple-to-use intuitive control
- All-wheel braking ensures sufficient braking in 4-way mode
- Auto-reset hydraulic steering circuit allows for easier operation without the need to reset it manually
- Load supports hinge down in a simple movement and do not obstruct lights or visibility
- 4W steer cylinders are closed in STD mode, which ensures the rod is protected from corrosion
- Trailer cable storage location removes the trip hazard
- Grab handle size and location are perfectly positioned for maximum safety
- Oversize steps allow for steel-toe work boots and are perfectly positioned without obstruction
- Floor space is maximized with all trip hazards removed
- Double lift cylinder maximizes visibility through the mast
- Class 4 fork carriage maximizes fork tip visibility at all critical operation heights
- Low profile engine hood maximizes visibility to the right side
- Operation grab handle at the control valve bank supports the driver in rough terrain conditions
- All-wheel braking provides increased safety, especially in 4-way mode
- SMV sign positioned behind the seat, so visibility is not obstructed
- Increased wheel torque will give the superior climbing ability
- Increased function speed to ensure faster load handling
- 180° steering allows for better maneuverability
- Chamfered main frame corners allow for a tighter turning circle
- Low profile mast gives lower C of G and lowers collapsed height
- Low fuel fill position enables safe ground-level refueling even when mounted on the truck
- Easy access to the engine area for all daily checks, service and maintenance access
- Pump-mounted diff-lock eliminates large hoses and provides a better layout, ensuring easy diagnostic and hose replacement
- Protruding chassis protects panels from damage
- Oversized 1-in. pitch lift chains ensure a long lifetime while increasing visibility
- Oversized mast carriage channels and bearings give trouble-free operation without problematic wear pads
- Galvanized stabilizers and motor guards remove rust problems from this area
- Galvanized transport chain hanger points ensure rust is minimized
- Load Back Rest
- Seat Cover
- Rear View Mirror
