Single or Tandem Axle

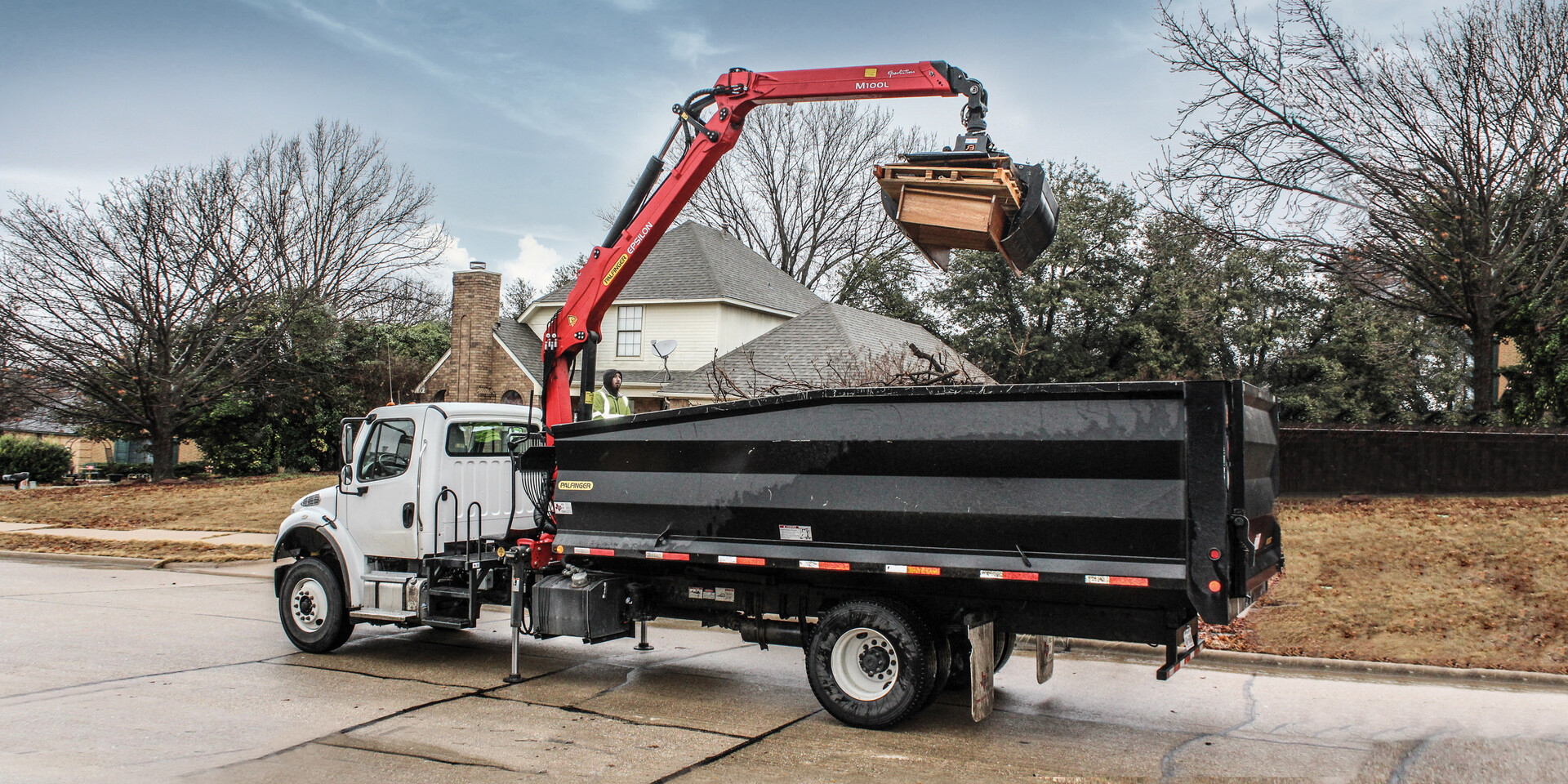

M100L
Medium Duty Class
Timber & Refuse Loaders
The M-Series is the medium-duty class of EPSILON loaders in the L-Line product range. Providing a diverse range of configurations to offer customized solutions, the M100L is built to maximize speed, productivity and stability. The M100L is the perfect choice for forestry and recycling applications.
Extension components are located inside the boom for maximum protection. Unparalled speed and precision derived from a synchronized chain/cylinder combination. Service maintenance is facilitated by protective covers that provide access to exchange hoses, pipes, and cylinder. No need to dismantle boom.
Provides maximum protection and maneuverability through internal hose routing. No more hoses hang around the link/rotator vulnerable to breakage from timber/refuse or from being stowed on the load.
| Max. lifting capacities (lbs.) | Max capacity at full extension (lbs.) | Max outreach (ft.) | Weight without rotator/grab (lbs.) | Slewing torque (mt) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| 7780 | 3280 | 23.6 | 4010 | 17701 | 425 degrees | 3118 psi - 1x21 gpm |
| LIFTING | Max capacity at full extension (kg.) | Max outreach (m) | Weight without rotator/grab (kg.) | Slewing torque (ft.lbs) | Slewing angle | Operating pressure | |
|---|---|---|---|---|---|---|---|
| 3529 | 1488 | 7.2 | 1818 | 24 | 425 degrees | 215 bar - 1x80 l/min. |
