Frame Clearance
Top Mount Series
- Go back
- Home
- Products
- Cable Hoists
- Models
- Top Mount Series
ART Models
Cable Hoist
Imperial
Metric
Type
Type
ART
ART
Max Length
Max Length
7.32 m
24 ft
Max Capacity
Max Capacity
34019 kg
75000 lbs.

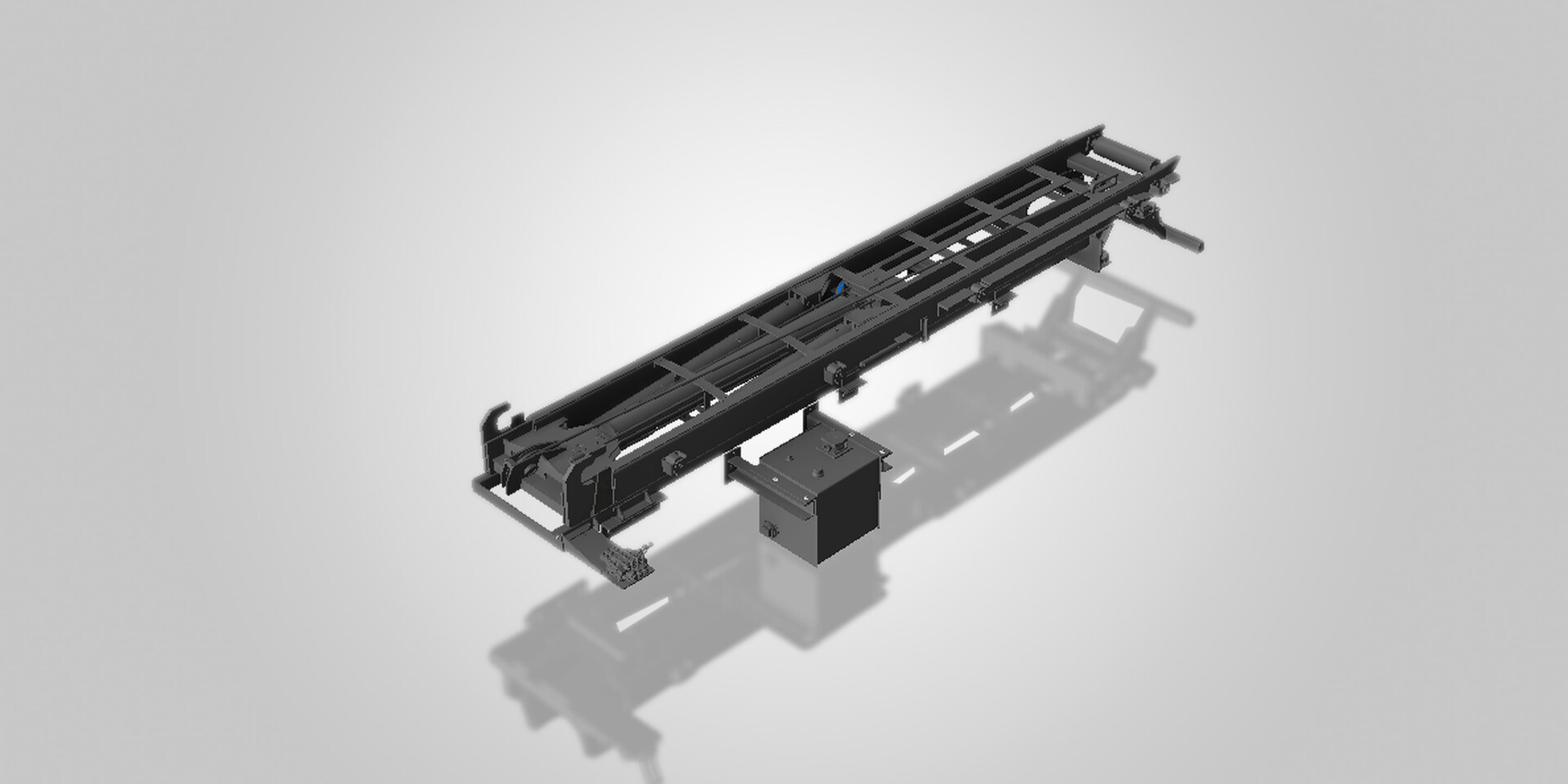

Designed for a long life with minimal maintenance, our patented Top Mount Cable Roll-off Hoists are unique to the market. The innovative top mount design is suitable for single and multiple axle chassis, making these hoists perfect for mounting on top of any chassis configuration, including CNG tanks. Plus, our top mount design also offers the most diverse capacity range, from 12,000 – 75,000 lbs
| Capacity (lb) | Container length (ft.) | Dump angle | Min C/A (in.) | Min C/T (in.) | Hoist length (in.) | GVWR F/R (lb.) | |
|---|---|---|---|---|---|---|---|
| ART 12-14 | 12000 | 10-14 ft. | 53 | 96 | 136 | 7,000/12,500 | |
| ART 20-16 | 20000 | 12-16 ft. | 53 | 120 | 160 | 7,000/12,500 | |
| ART 20-18 | 20000 | 12-18 ft. | 52 | 140 | 180 | 7,000/12,500 | |
| ART 30-16 ET | 30000 | 12-16 ft. | 56 | 125 | 222 | 12,000/26,000 | |
| ART 40-16 ET | 40000 | 12-16 ft. | 56 | - | 164 | 222 | 12,000/40,000 |
| ART 60-22 | 60000 | 12-22 ft. | 49 | - | 176 | 236 | 18,000/46,000 |
| ART 60-22 ET | 60000 | 12-22 ft. | 49 | - | 176 | 236 | 18,000/46,000 |
| ART 75-22 | 75000 | 12-22 ft. | 48 | - | 176 | 236 | 18,000/46,000 |
| ART 75-22 ET | 75000 | 12-22 ft. | 48 | - | 176 | 236 | 18,000/46,000 |
| ART 75-22 IO | 75000 | 12-22 ft. | 48 | - | 176 | 236 | 18,000/46,000 |
| ART 75-24 | 75000 | 12-24 ft. | 48 | - | 194 | 254 | 18,000/46,000 |
| ART 75-24 ET | 75000 | 12-24 ft. | 48 | - | 194 | 254 | 18,000/46,000 |
| ART 75-24 IO | 75000 | 12-24 ft. | 48 | - | 194 | 254 | 18,000/46,000 |
| Capacity (kg) | Container length (m) | Dump angle | Min C/A (in) | Min C/T (in) | Hoist length (cm) | GVWR F/R (lbs.) | |
|---|---|---|---|---|---|---|---|
| ART 12-14 | 5443 | 3.05-4.27 m | 53 | 96 | - | 345.44 | 7,000/12,500 |
| ART 20-16 | 9071 | 3.66-4.88 m | 53 | 120 | - | 406.4 | 7,000/12,500 |
| ART 20-18 | 9071 | 3.66-5.49 m | 52 | 140 | - | 457.2 | 7,000/12,500 |
| ART 30-16 ET | 13607 | 3.66-4.88 | 56 | 125 | - | 563.88 | 12,000/26,000 |
| ART 40-16 ET | 18143 | 3.66-4.88 m | 56 | - | 164 | 563.88 | 12,000/40,000 |
| ART 60-22 | 27215 | 3.66-6.71 m | 49 | - | 176 | 599.44 | 18,000/46,000 |
| ART 60-22 ET | 27215 | 3.66-6.71m | 49 | - | 176 | 599.44 | 18,000/46,000 |
| ART 75-22 | 34019 | 3.66-6.71 m | 48 | - | 176 | 599.44 | 18,000/46,000 |
| ART 75-22 ET | 34019 | 3.66-6.71 m | 48 | - | 176 | 599.44 | 18,000/46,000 |
| ART 75-22 IO | 34019 | 3.66-6.71 m | 48 | - | 176 | 599.44 | 18,000/46,000 |
| ART 75-24 | 34019 | 3.66-7.32 m | 48 | - | 194 | 645.16 | 18,000/46,000 |
| ART 75-24 ET | 34019 | 3.66-7.32 | 48 | - | 194 | 645.16 | 18,000/46,000 |
| ART 75-24 IO | 34019 | 3.66-7.32 m | 48 | - | 194 | 645.16 | 18,000/46,000 |
- Single reeve cylinder
- Ideal for installation on multiple axle chassis and CNG tanks
- Top mount installation leaves room for bigger fuel tanks, battery boxes and tool boxes
- Patented folding rear bumper
