Hydraulic

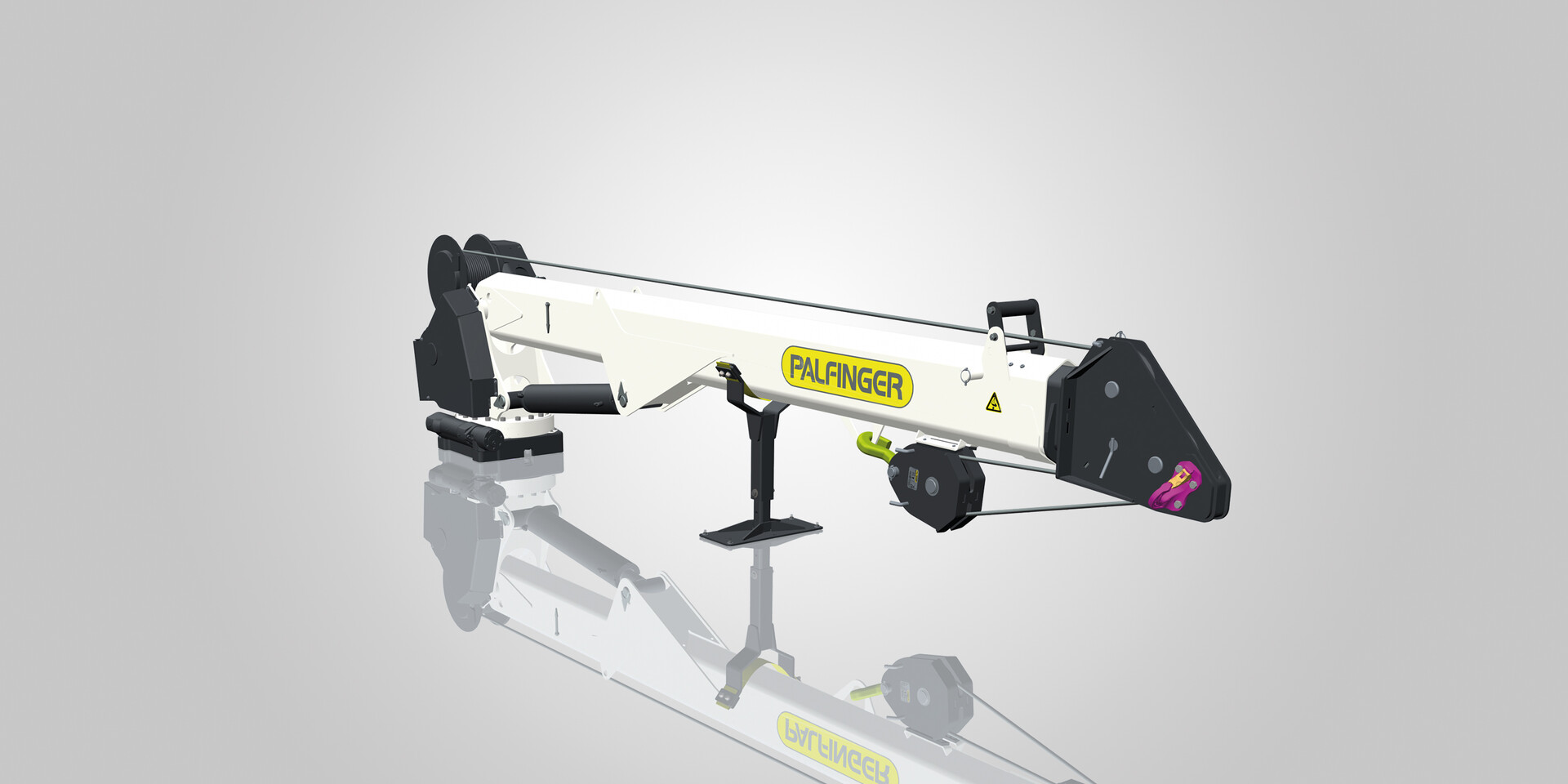

PSC 8029

Hydraulic

Service Cranes

Imperial Metric

Capacity 8,000 LBS

Outreach 29.1 FT

Crane Weight 2149 lbs.

Technical Data

PALFINGER's large hydraulic service cranes feature capacities from 8,000 to 14,000 lbs for even the most challenging continuous duty applications. All hydraulic service cranes come standard with simultaneous multi-function proportional radio remote controls, superior weight-to-lift ratios, and 29' of reach.

Each model features a high-speed planetary winch rated up to 60 ft/min, incorporating a standard 3rd wrap limiting and winch drum tensioner system to prevent cable spool off and cable damage.

Options include boom tip hooks, an easy load-block stowing system, and personnel baskets to fit your application needs.

Downloads

Built to last

PALFINGER Service Cranes are the industry's only E-coated telescopic cranes. Epoxy electrocoat (E-Coat) provides superior anti-corrosion protection to ensure that your service crane holds up against the toughest of job site conditions.

Lighter. Longer. Stronger.

PALFINGER Service Cranes are as much as 30% lighter and 20% stronger than the competition. With the longest reach in the industry, you can make fewer setup adjustments on the job site and access challenging lifts with ease.

Highlights

Hexagonal booms

Provide superior strength

Hexagonal booms are constructed using ultra-low maintenance high tensile strength self-centering single weld sections powered by internal extension cylinders.

Extension cylinders

Deliver exceptional performance & durability

Internal extension cylinders provide 29’ of hydraulically powered outreach. All cylinders are E-coated and use a 5 stage marine grade seal system.

Proportional control

Maximizes load control and operator efficiency

Through the control valve, fully proportional control of all functions is standard.

Control System

Simplifies operation and improves safety

Features a standard proportional wireless remote control unit, integrated E-stop button, warning horn and manual valve activation capability. Cranes are controlled with 12V DC power supply.

3rd Wrap Limiting System

Maximizes safety

Integrated system prevents wire rope spool off, ensuring three wraps remain on drum. Exceeds ASME B30.5.

Planetary winch

Maximizes performance

Planetary winch provides speed and durability.

Horse Head

Compact and ready for accessories

Low profile design with threaded weldment for mounting optional boom tip hook(s) and lights. No A2B components to interfere with operation.

Load block stowing bracket

Protects boom

Bracket and pads are designed to keep load block from contacting the boom when stowed.

Protective covers

Withstand tough conditions

Designed to protect sensitive crane operating components against the weather and resist damage from exterior forces. Functional hinge design allows easy access to the receiver.
